Oki MC860 Maintenance Manual

Oki Data CONFIDENTIAL
43967002TH Rev. 1
142 /

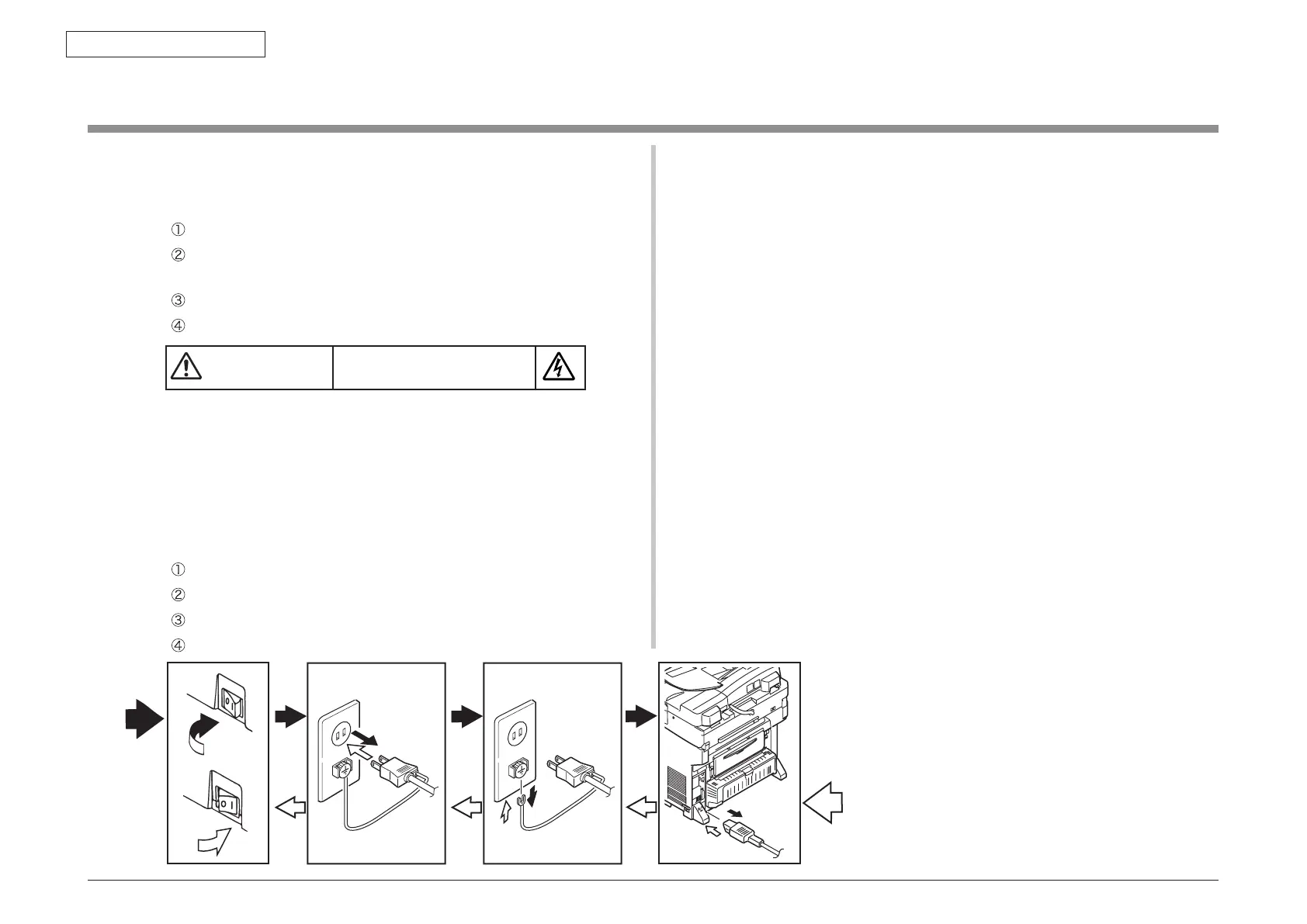

4. Part Replacement
4.1 Precautions when replacing part
(1) Before starting part replacement, be sure to disconnect the AC power cord and the
interface cables.
(a) W
hen disconnecting the AC power cord, follow the procedure shown below.
Set the MFP POWER to the OFF “O” position.
Disconnect the AC insertion plug of the AC power cord from the AC power
source.
Disconnect the earth wire from the earth terminal of the AC power source outlet.
Disconnect the AC power cord and interface cables from the MFP.
(2) Do not disassemble the MFP while the MFP is operating normally.
(3) Restrict the MFP disassembly as small as possible. Do not remove parts that are
shown in the part replacement procedure.
(4) U
se the specified maintenance tools.
(5) Disassembly should be performed in the specified order. If parts are removed in the
specified order, part can be damaged.
(6) S
mall parts such as screw and collar can be easily lost. Attach them tentatively to
their original positions.
(7) W
hen handing IC such as microprocessor, ROM and RAM, and when handling
PCB board, do not use the glove that can easily generate static electricity.
(8) D
o not place PCB directly on any equipment or on the floor.
Warning
Electric shock can occur.
When replacing the low voltage power supply, there is a danger of electric shock.
Be sure to wear an insulation gloves or do not touch the electrically conduction
areas or terminal directly by hand during the part replacement work.
It takes approx. 1 minute for capacitors to be completely discharged after the AC
power cord is disconnected. Be careful not to receive electric shock because
capacitors may not discharge in case if PCB is defective.
(
b) W
hen reconnecting the MFP, be sure to follow the procedure shown below.
Connect the AC power cord and interface cables to the MFP.
Connect the earth wire to the earth terminal of the AC power source outlet.
Connect the AC power cord insertion plug to the AC power source outlet.
Set the MFP POWER to the ON “I” position.
Disconnect
Connect

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
