Oki MC860 - Cover-Side-L

Oki Data CONFIDENTIAL
43967002TH Rev. 1
154 /
4. Part Replacement
4.2.3.3 Cover-Side-L

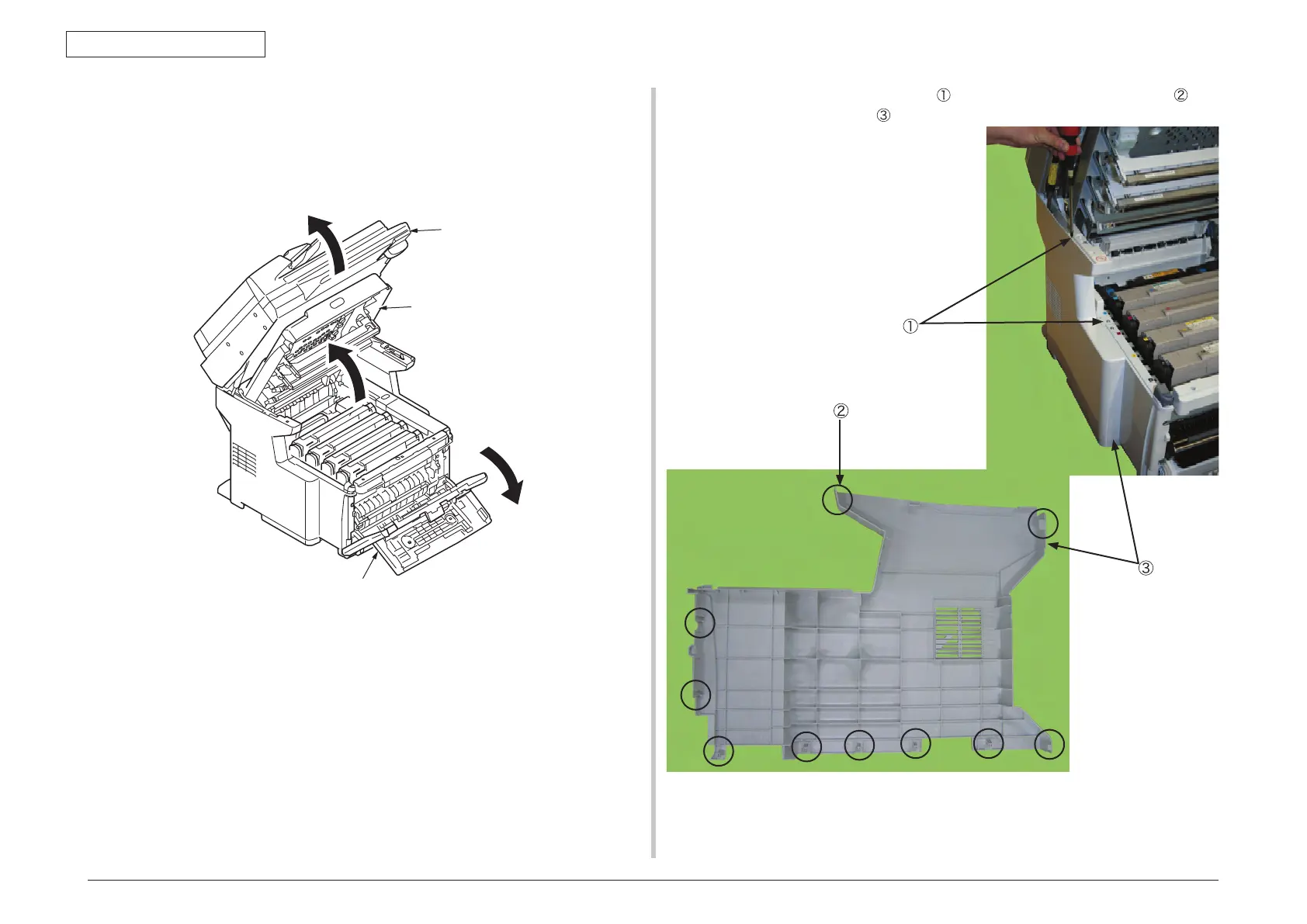

(1) Raise the scanner.
(2) Open the top cover and the front cover of the printer.
(3) Remove the two screws (M3 L=8)
, release the latches at 10 locations , and
remove the Cover-Side-L
.
(Tool No. 1)
Top cover
Front cover
Scanner
×
10
