Oki MC860 - Operator Panel Assy

Oki Data CONFIDENTIAL
43967002TH Rev. 1
148 /
4. Part Replacement

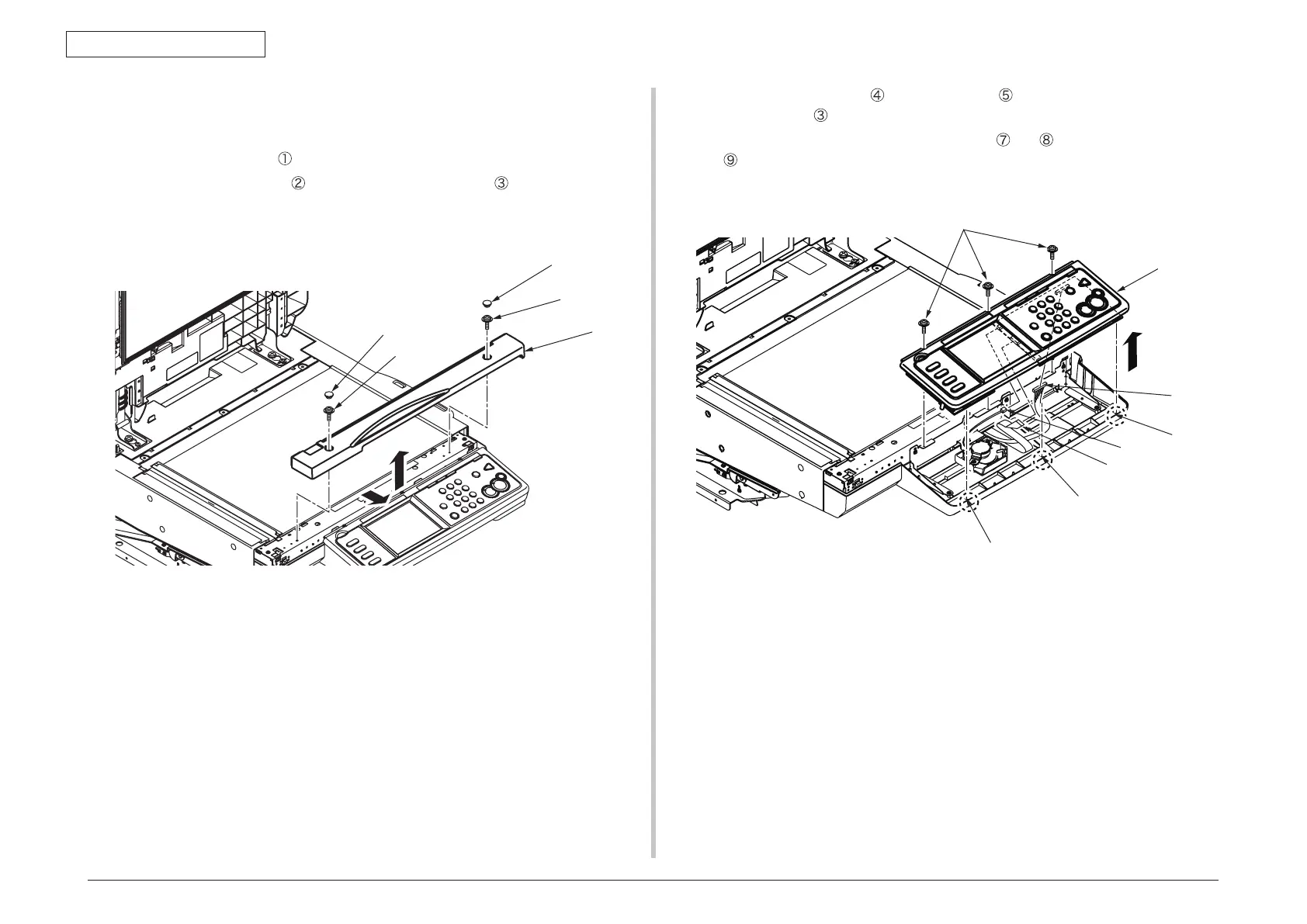

4.2.2.2 Operator panel Assy
(1) Open the RADF Assy.
(2) Remove the two caps
.
(3) Remove the two screws
and remove the cover front top .
(4) Remove the two screws
, release the claws at the 3 locations, and remove the
operator panel
).
At the same time, remove the two connectors
and , and remove the FFC cable
.
①
②
①
②
③
④
⑤
⑤
⑤
⑥
⑦
⑧
⑨
