Oki Data CONFIDENTIAL
43967002TH Rev. 1
182 /
4. Part Replacement

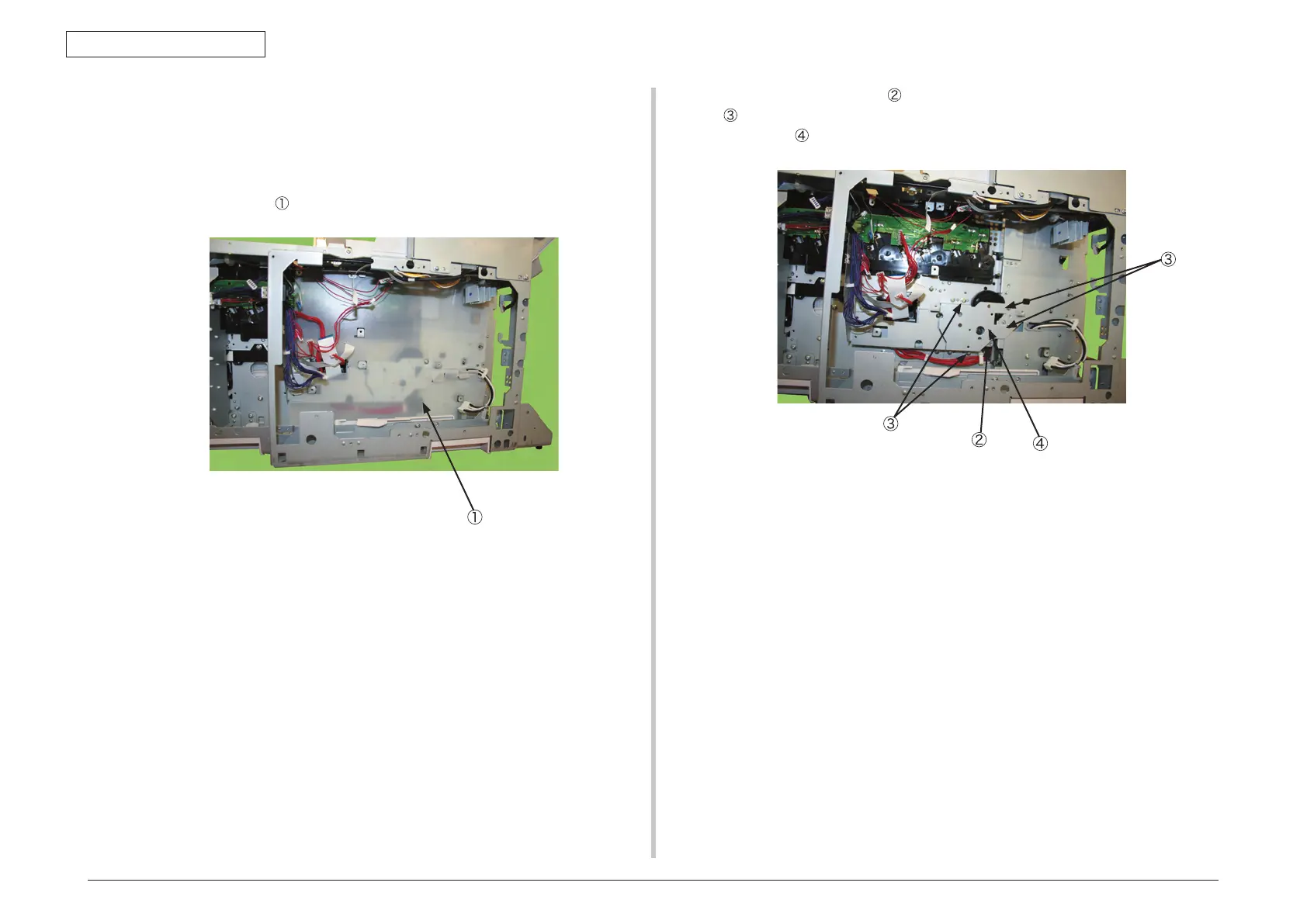

4.2.3.19 Belt motor Assy/Fuser motor Assy
(1) Remove the main control PCB and the print engine roller PCB. (Refer to chapters
4.2.7 and 4.2.8.)
(2) R
emove the low voltage power supply. (Refer to chapter 4.2.3.18.)
(3) Remove the insulator
.
(4) Disconnect the two cables
from the clamp, and remove the four screws (silver)
from the locations where the figure 2 is inscribed in the bracket Remove the belt
motor Assy
.
To Next Page
