8. Connection Diagrams
8.1 Resistance value check

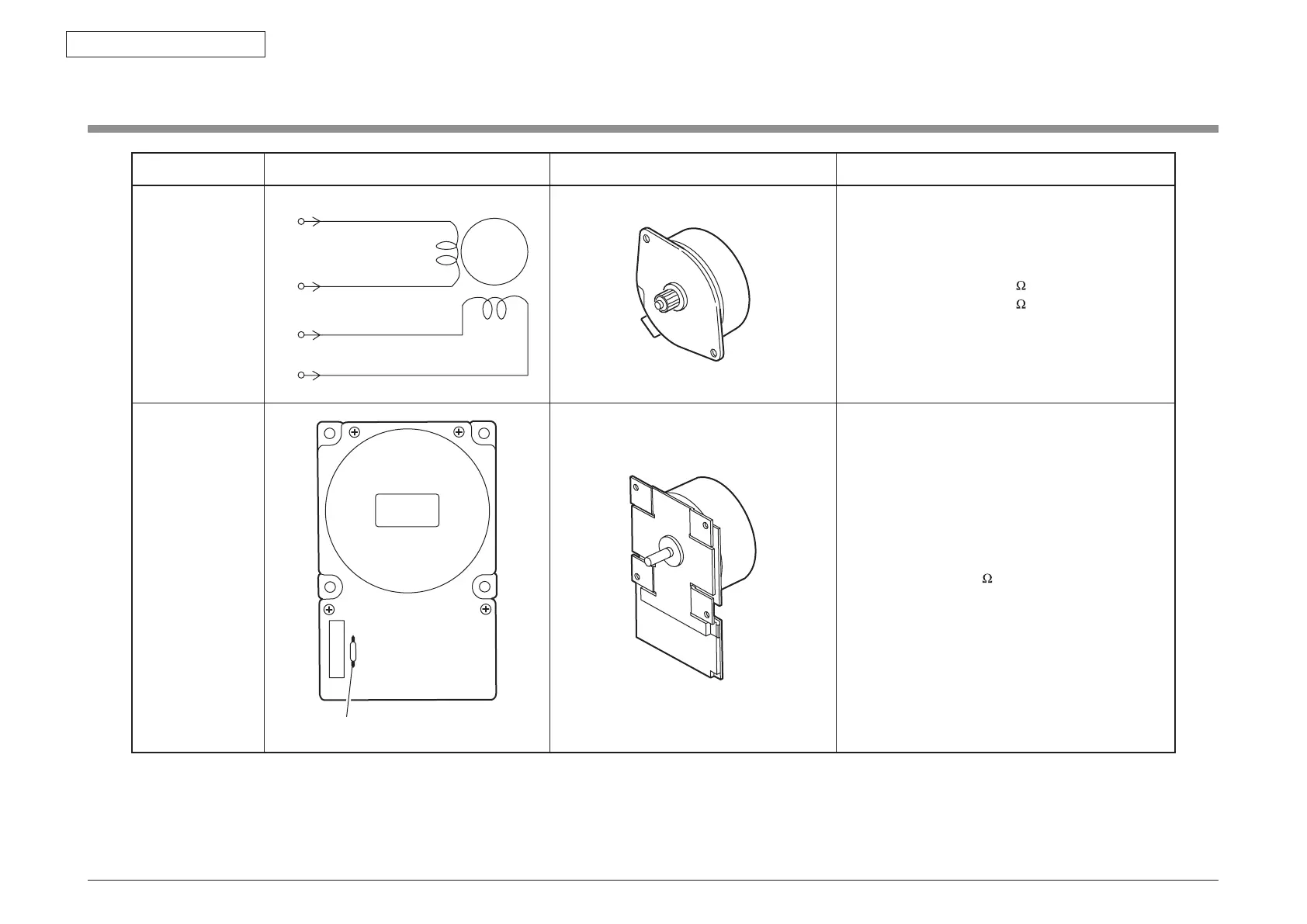

Unit Circuit diagram and configuration Part drawing Resistance value
Transport belt
motor
Red
Brown
Yellow
Blue
M
1
2
3
4
Between pin-1 and pin-2: 3.4
Between pin-3 and pin-4: 3.4
ID motor
F1
Across F1: Less than 1
