4. Part Replacement
4.2.3.20 Side R Assy/Side L Assy
(1) Refer to chapters 4.2.1 to 4.2.3.
(2) Remove the outer frame L and R. (Refer to chapter 4.2.3.19.)

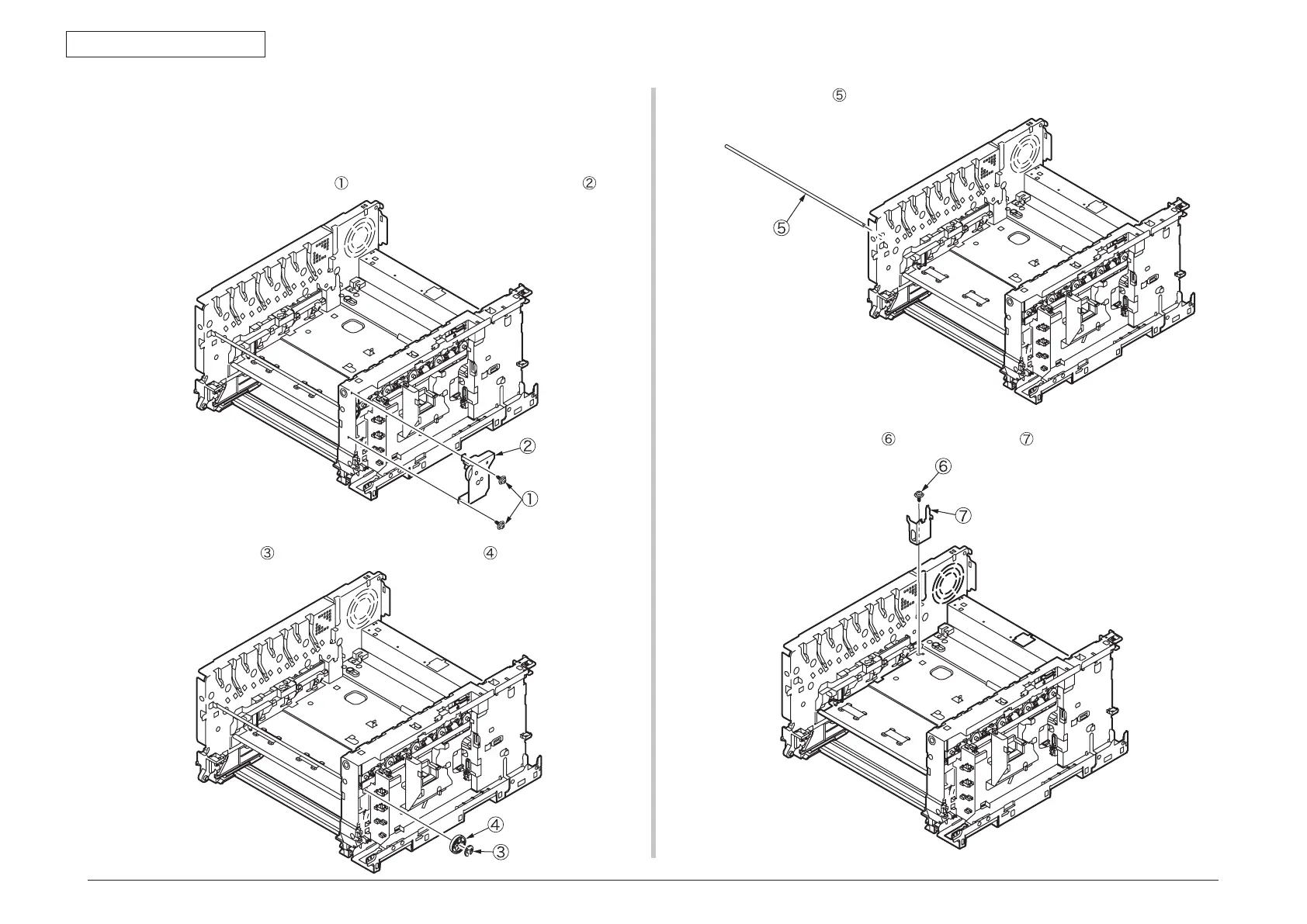

(3) Remove the two screws (silver)
and remove the ID lift UP gear bracket .
(4) Remove the E-ring
and remove the ID lift UP gear (R) . (Tool No. 8)
(5) Remove the shaft
by pulling it to the left.
(6) Remove the screw (silver)
and the belt bracket .
To Next Page
