Oki MC860 - Rear Cover

Oki Data CONFIDENTIAL
43967002TH Rev. 1
156 /
4. Part Replacement
(3) Slide the rear cover
in the arrow direction and remove the rear cover .

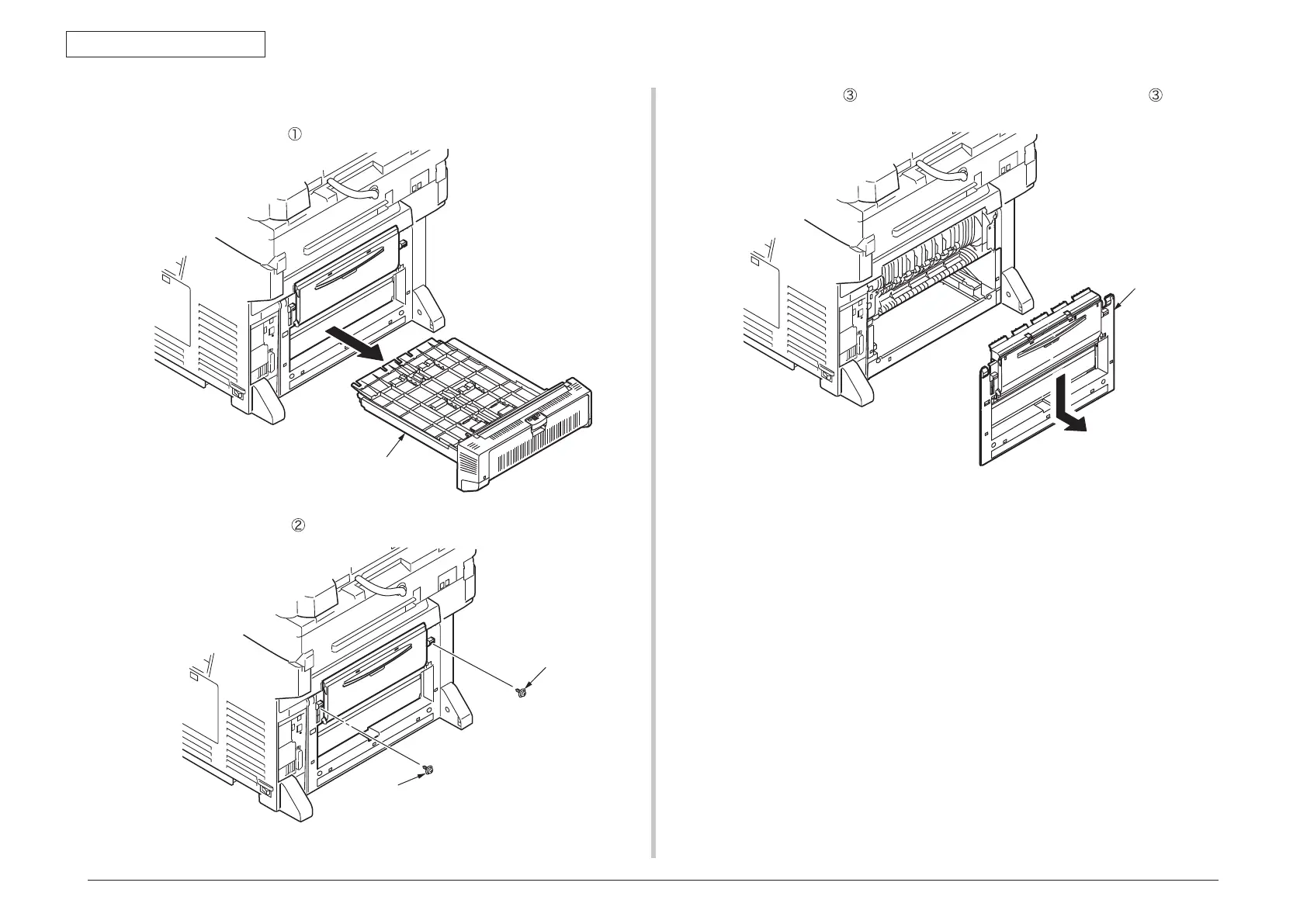

4.2.3.5 Rear cover
(1) Pull out the Duplex Unit .
(2) Remove the two screws
. (Tool No. 1)
①
②
②
②
