4. Part Replacement
4.2.3 Printer

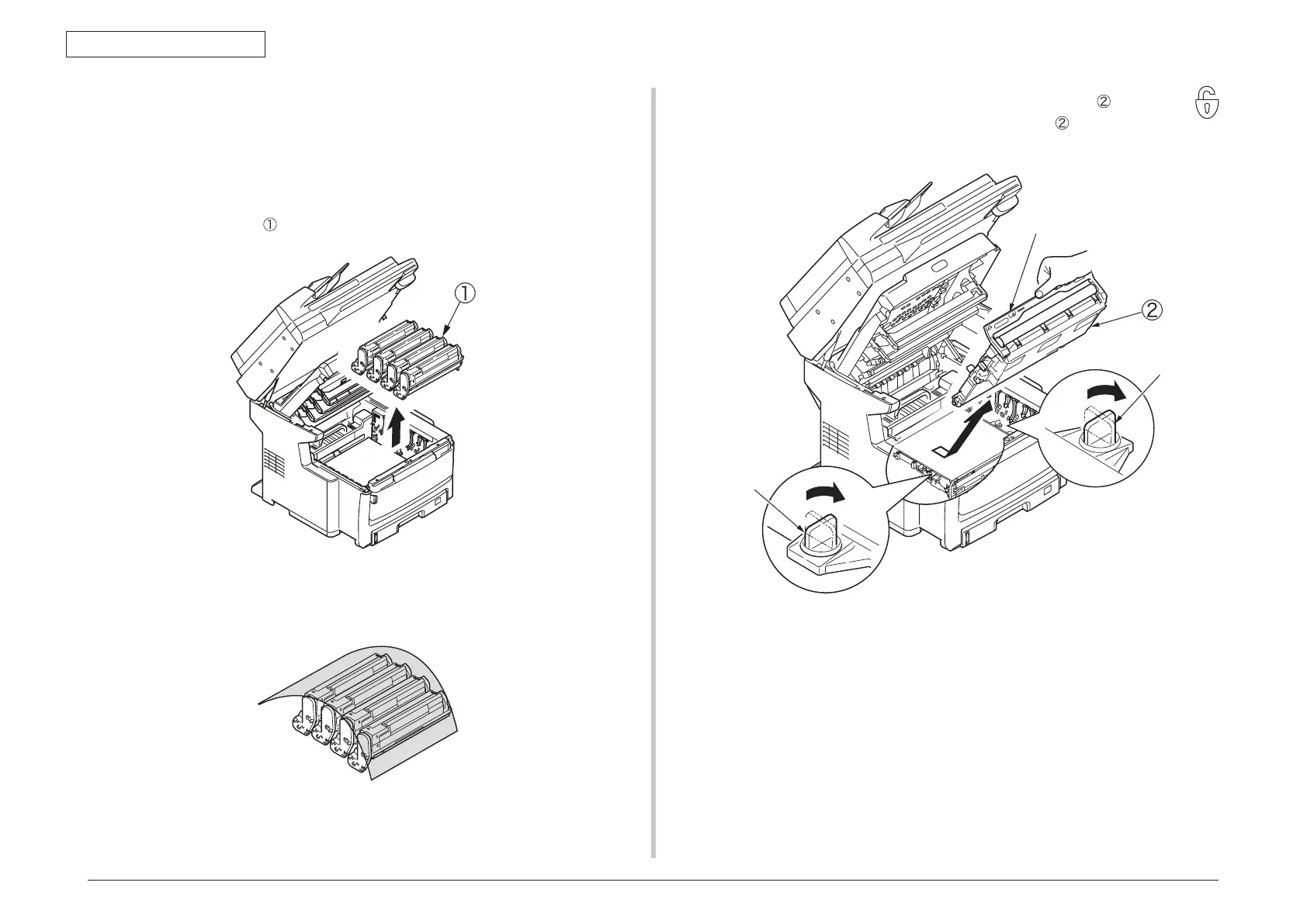

4.2.3.1 Belt unit
(1) Raise the scanner.
(2) Open the top cover of the printer.
(3) Remove the ID unit
.
(4) Rotate the lock lever (blue, at two locations) of the belt unit
in the arrow
direction. Hold the lever (blue) and remove the Belt-Unit
.
Note! Cover the removed image drum cartridge with a black paper.
Lock lever (blue)
Lever (blue)
Lock lever
(blue)
