6. Periodic Maintenance
6.4 How to clean inside of MFP
Clean inside of the MFP.
Toner can adhere to the metal shaft that is located in between the fuser and the cyan image
drum cartridge depending on the print pattern. Perform cleaning of the inside of the MFP if
toner has adhered to the metal shaft.
1. Turn OFF the power of the MFP.

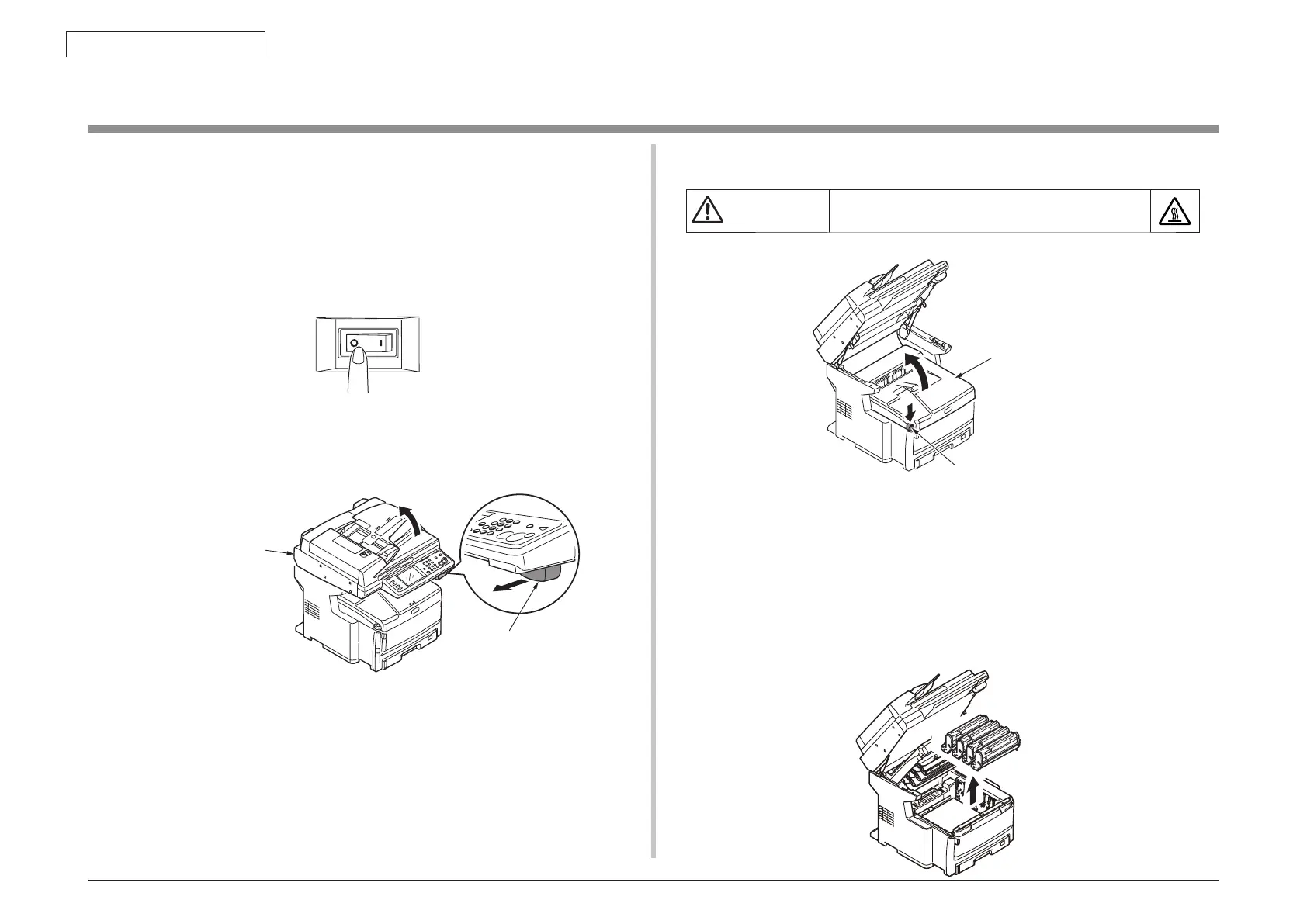

2. Pull the document table lock lever to the front to release the
lock, and raise the document table.
4. Remo
ve the image drum cartridge from the MFP.
1. Remove the four image drum cartridges and place them on a flat workbench.
2. Cover the removed image drum cartridge with a black paper.
Note! • The image drum (green tubular portion) is highly inherently-brittle.
Be very careful when handling it.
• Be very careful not to expose the image drum to direct sun light or
intense light (light of approx. 1500 lux or more). Do not leave it under
the normal illumination even indoor for 5 minutes or longer.
O I
3. Press the OPEN button and open the top cover.
Caution
Failure to observe the caution may result in
burn injury.
The fuser unit gets very hot. Do not touch the fuser unit.
Document table
Document table lock lever
Top cover OPEN button
Top cover
