Oki MC860 - Cover-Side-R

Oki Data CONFIDENTIAL
43967002TH Rev. 1
155 /
4. Part Replacement
4.2.3.4 Cover-Side-R

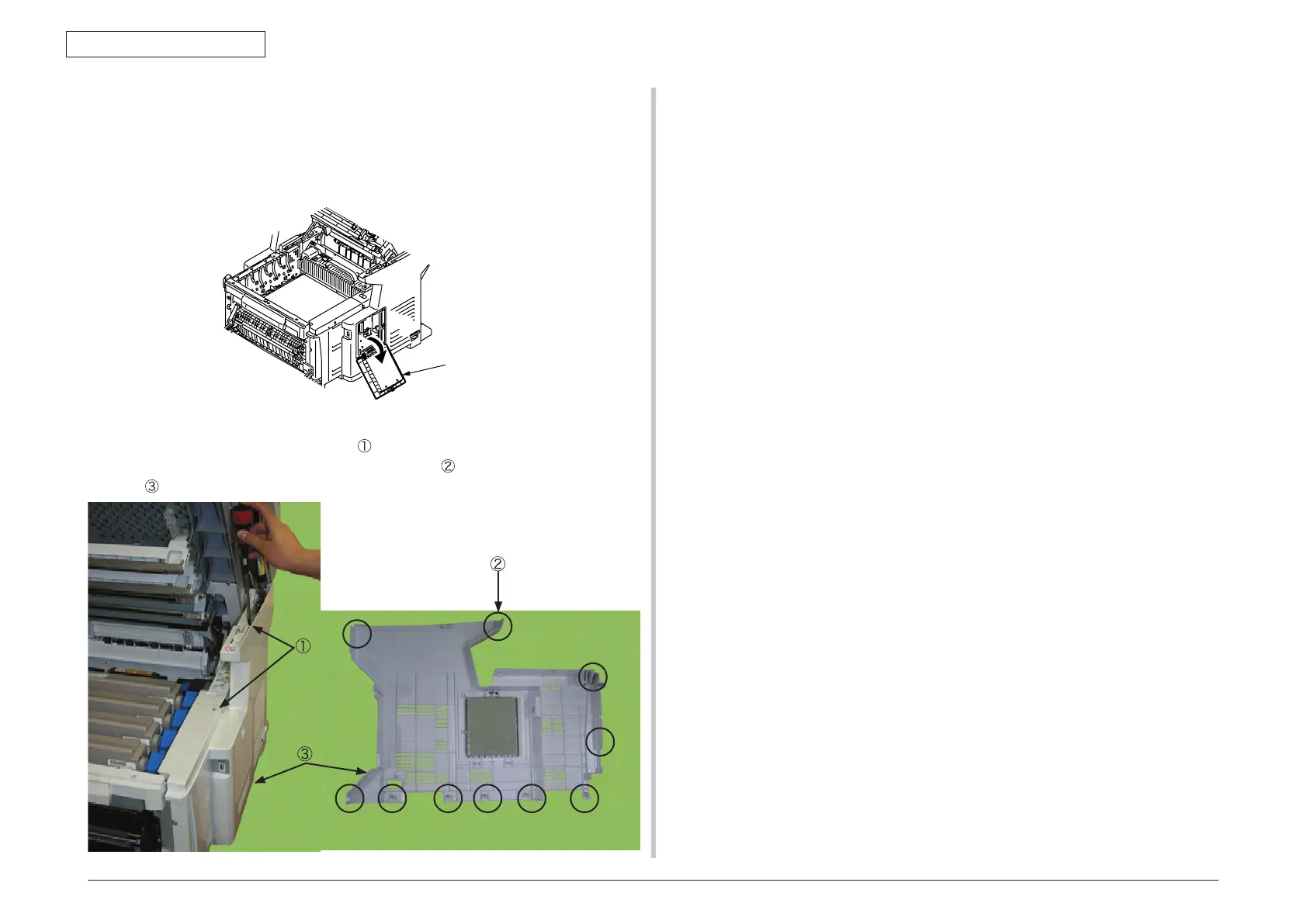

(1) Raise the scanner.
(2) Open the top cover and the front cover of the printer.
(3) Open the sub cover.
×
10
(4) Remove the two screws (M3 L=8) , release the hook that is visible through the
sub cover window and the latches at 10 locations
, and remove the Cover-Side-R
. (Tool No. 1)
Sub cover
