Oki MC860 Maintenance Manual

43967002TH Rev.1
273 /
Oki Data CONFIDENTIAL
5. Maintenance Menu
5.15.1.7 ADF scanning position adjustment (rear-end registration)
Adjust the rear-end scanning position (vertical scanning direction).
Reference value Default value Adjustable range Unit of adjustment
Front
± 1.8 (mm) -43 (2.6617mm)
-127
+127 *1
(–7.86
7.86mm)
0.0619mm / step
Back
± 2.3 (mm) -43 (2.6617mm)
-127
+127 *1
(–7.86
7.86mm)
0.0619mm / step
* 1 Adjustment in increment of 1 item (0.0619 mm) is possible in this
setting. However, adjustment should be performed in increment
of 16 items (1 mm) as a guide line due to document running at an
angle.
Measurement
1) Set the A3 document on ADF.
2) Scan both sides of the test chart with ADF at 300 dpi. (Such as Scan To USB
Memory)
3) M
easure length of the “A” portion as shown in the drawing. If it does not satisfy the
reference value, perform adjustment as described below.
4) I
f length of “A” portion stays within the reference value, it is the end of measurement.
Adjustment
1) Set the ADF rear-end registration.
• If the measurement data is short: (When the rear-end is missing.)
=> Adjust the setting value in the positive (+) direction.
• f the measurement data is long (If shade is present in the rear-end of document)
=> Adjust the setting value in the negative (-) direction.
Note! The rear end position adjustment should be executed after the top end
position adjustment is completed. In addition, scanning is stopped before
the rear end is reached if amount of the scanning lines specified by the CU
side are scanned in the copy mode and scan mode even though the rear-
end position adjustment is increased in the positive (+) direction. Therefore,
adjustment must be performed in the manner of increasing the setting
value gradually after checking the registration in the negative direction.
(If an excessively large value is set, it can adversely affect the fax scanning
at the rear-end.)

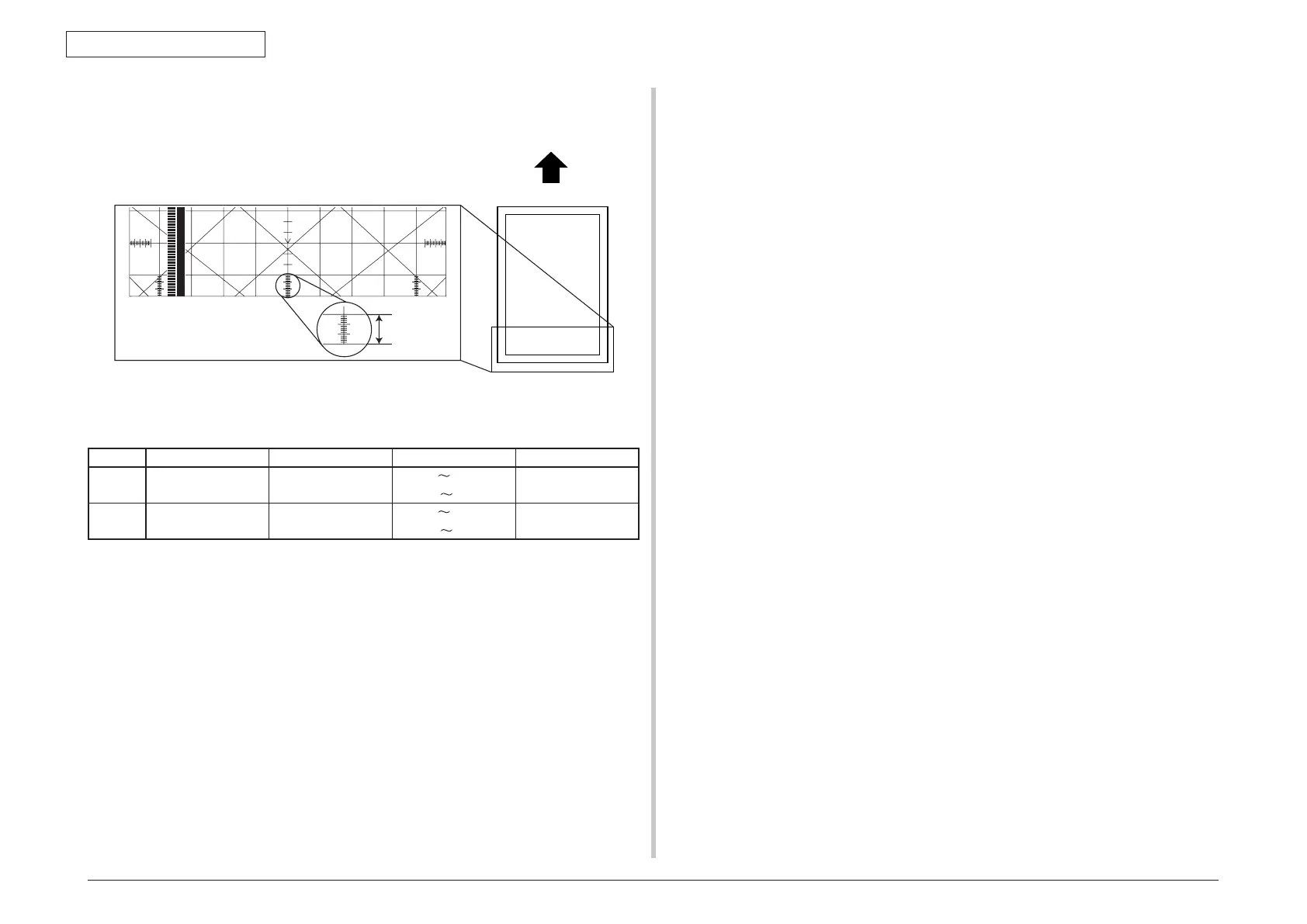

Test Chart No.99-2
A
99-2(B)
2000.1


Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
