4. Part Replacement
4.2.3.24 Feed paper roller (Multipurpose tray)

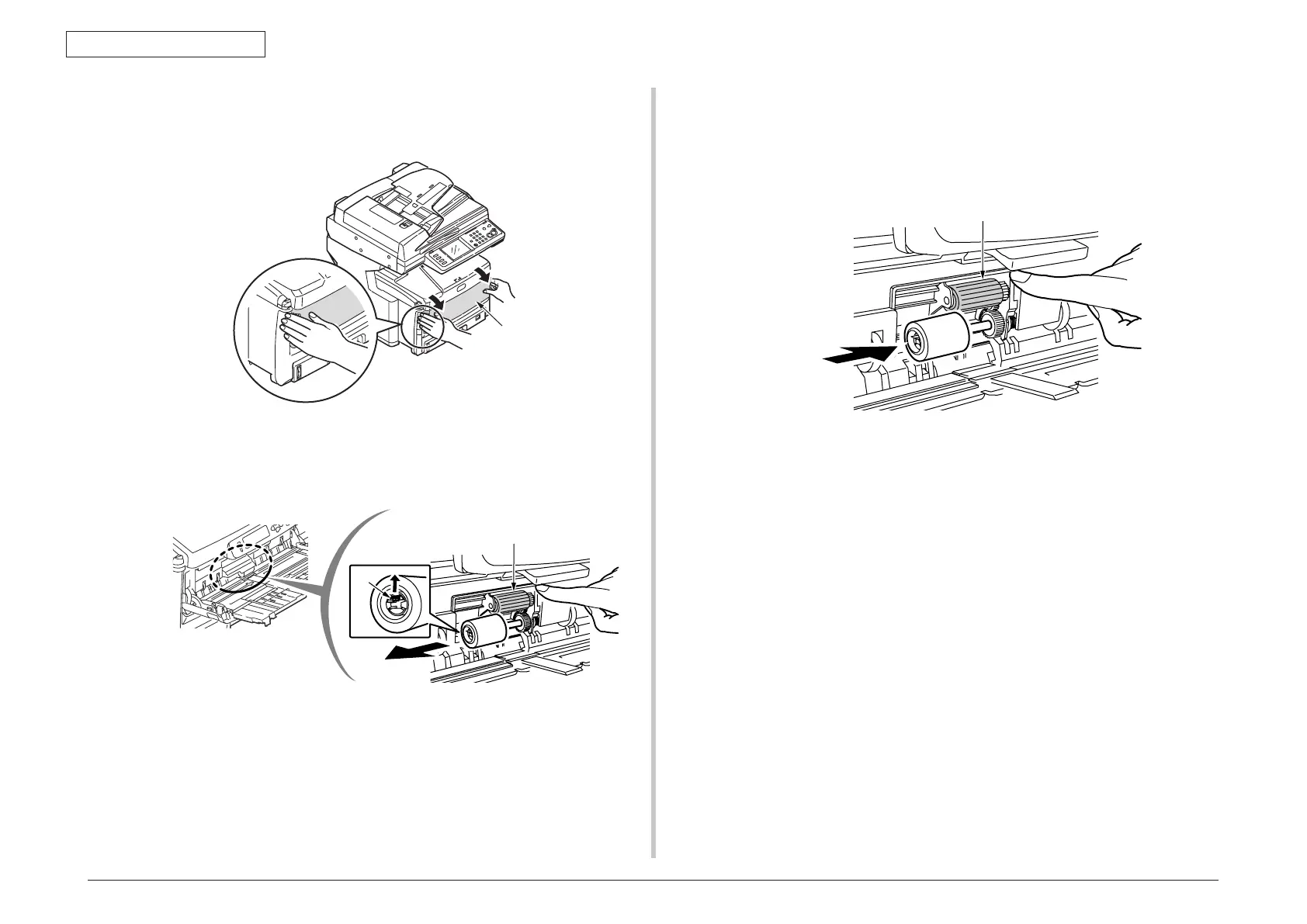

(1) Turn OFF the printer power and open the multipurpose tray.
[Caution when installing the feed paper roller]
1. Wh
en installing the new feed paper roller, insert it into the axis, and insert it
securely by rotating it until it reaches the deep end. At the same time, confirm that
the roller does not come off.
(2) W
hile opening claws of the feed paper roller outside, raise the paper pickup section
and remove feed roller from the axis.
Claw
Do not replace this roller.
Do not replace this roller.
