4. Part Replacement
4.2.3.10 Top cover Assy
(1) Remove the scanner. (Refer to chapter 4.2.1.)
(2) Remove the rear cover Assy. (Refer to chapter 4.2.3.5.)

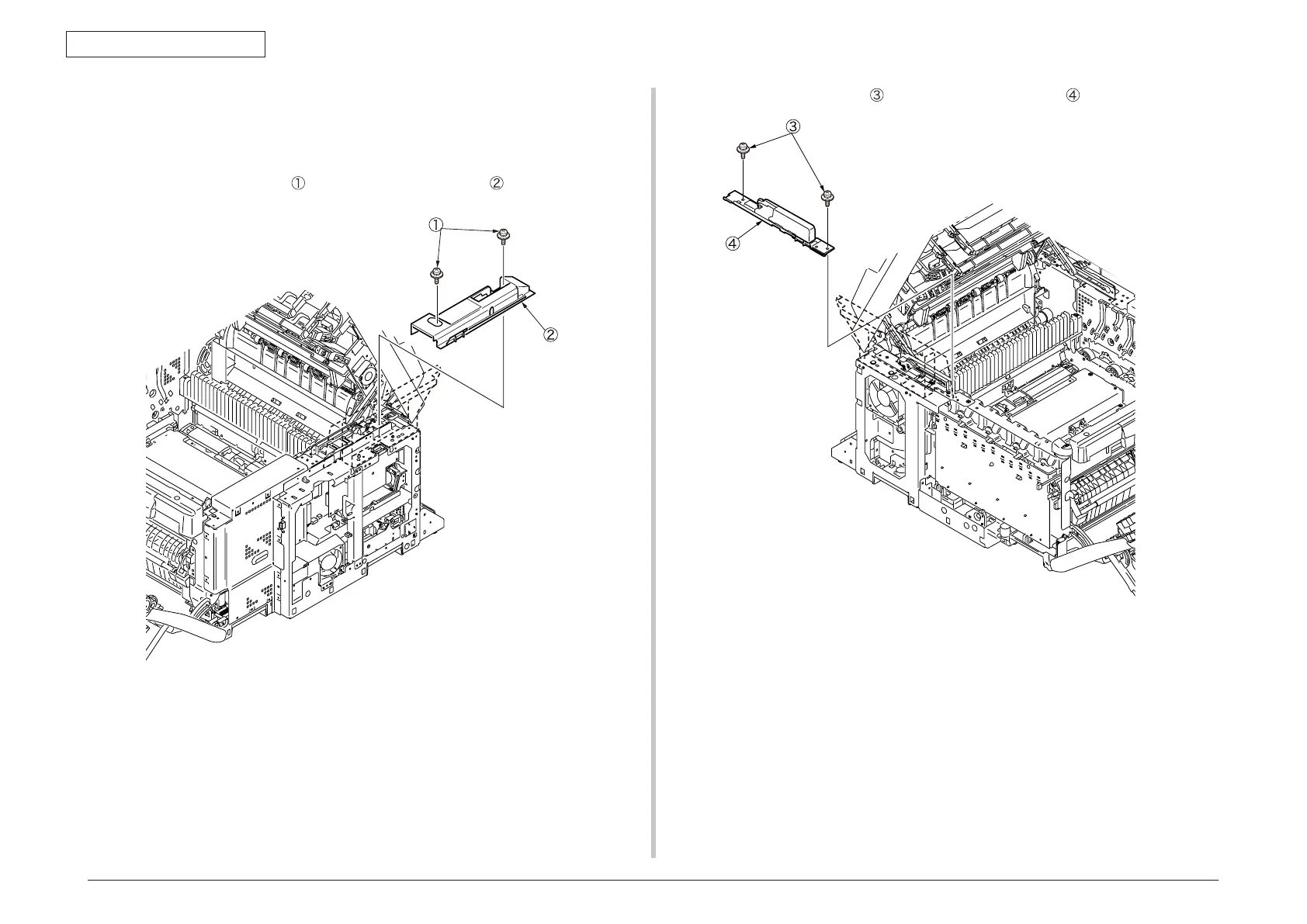

(3) Remove the two screws
and remove the Cover-Stay-R .
(4) Remove the two screws
and remove the Cover-Stay-L .
