4. Part Replacement
4.2.2.3 RADF Assy

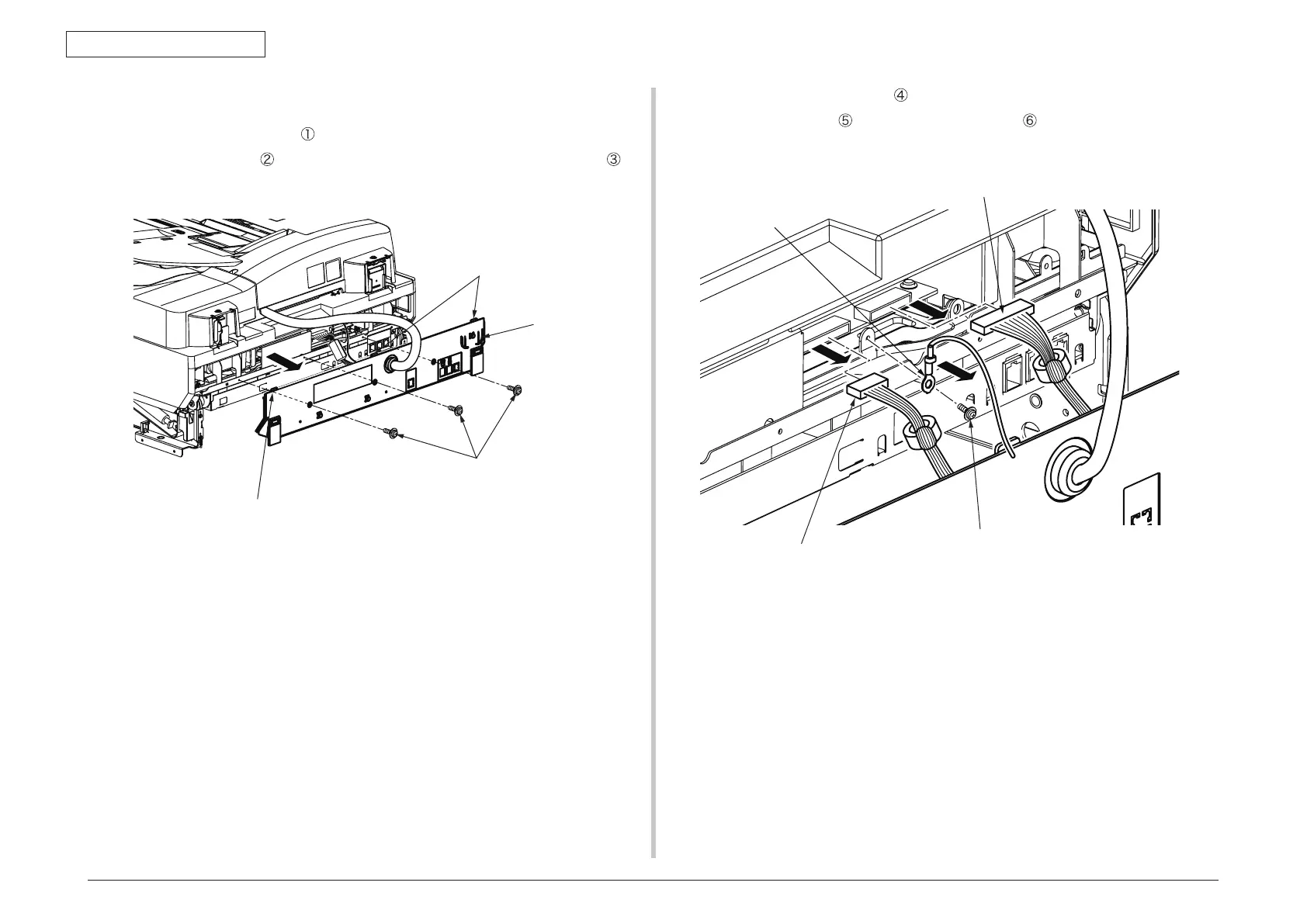

(1) Remove the three screws from the rear of the scanner.
(2) Release the hooks
at the three locations, and remove the cover harness A .
(3) Remove the two connectors
.
(4) Remove the screw
and disconnect the FG wire .
②
①
③
②
④
⑤
⑥
④
