4. Part Replacement

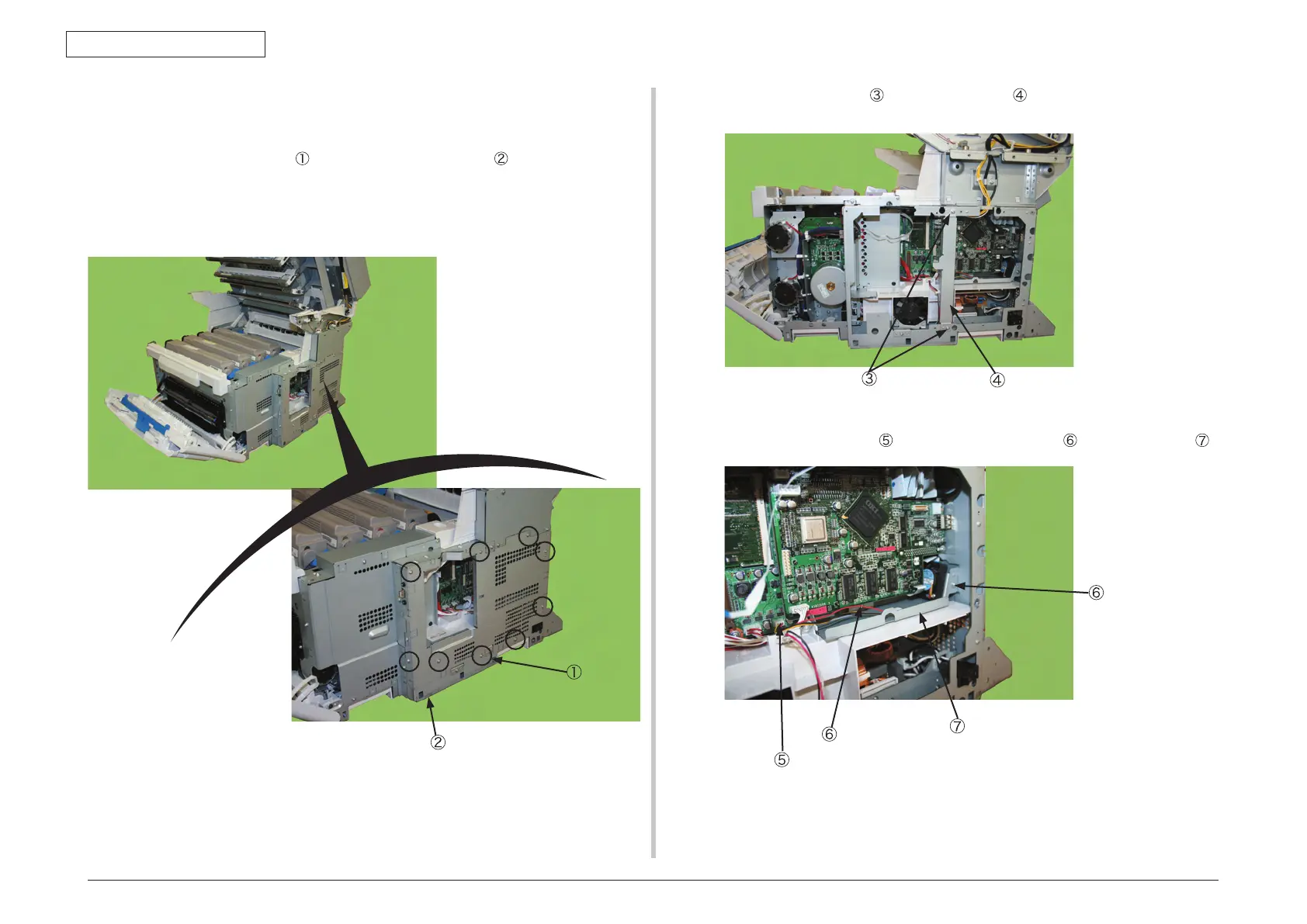

4.2.3.7 MZA PCB/CU PCB
(1) Remove the Cover-Side-R. (Refer to chapter 4.2.6.)
(2) Remove the nine screws
and remove the plate shield R . (Tool No. 1)
(3) Remove the two screws
and remove the stud .
(4) Disconnect the connector and remove the two screws , and the FAN Assy .
×
