Oki MC860 Maintenance Manual

Oki Data CONFIDENTIAL
43967002TH Rev. 1
180 /
4. Part Replacement

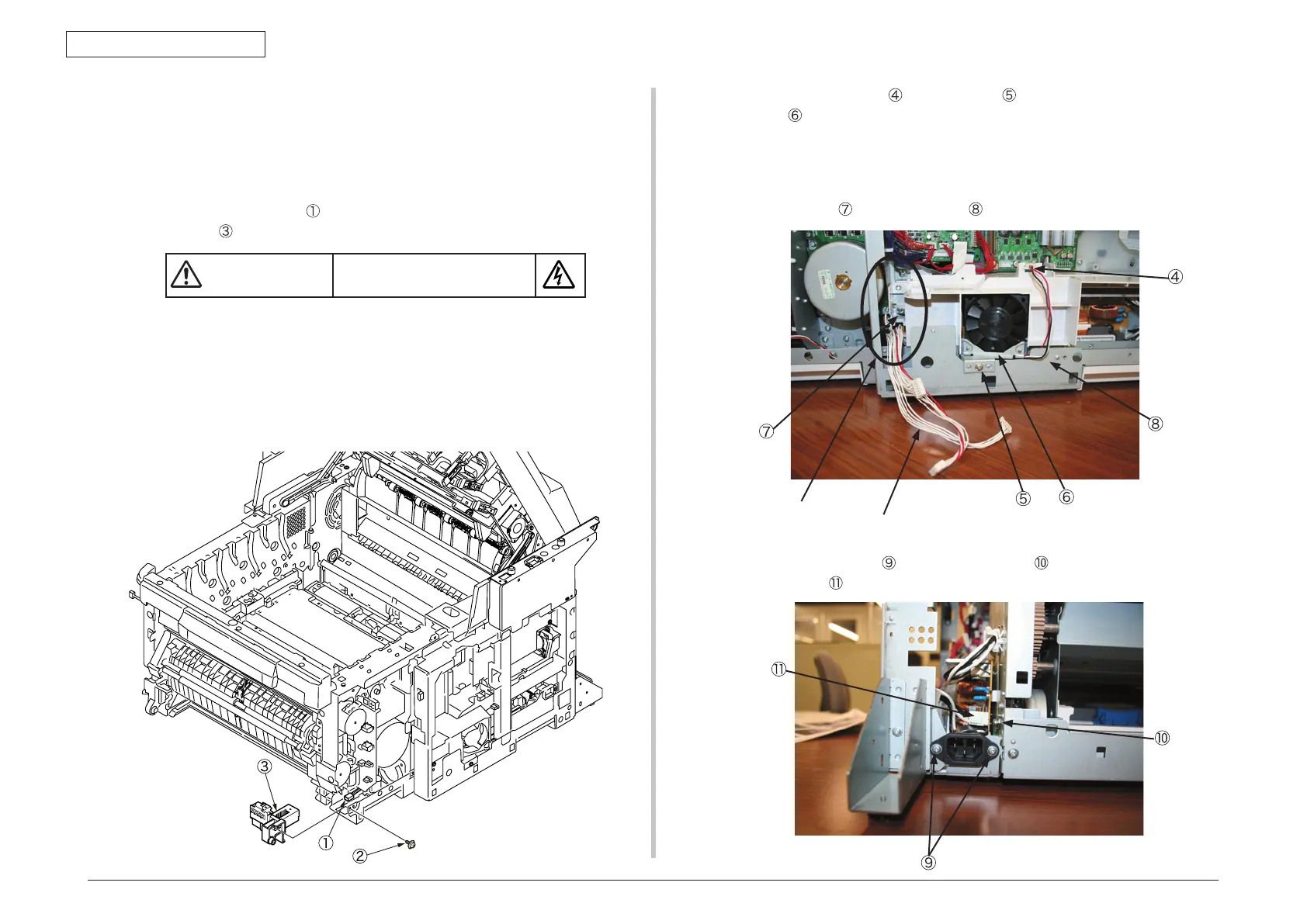

4.2.3.18 Holder switch Assy/Fan for low voltage power supply/Low
voltage power supply
(1) Remove the plate shield F. (4.2.3.8(1)? (Refer to chapter 4.2.3.8 (1) to (3).)
(2) Remove the MPT Assy. (Refer to chapter 4.2.3.15.)
(3) Disconnect the connector
and remove the screws (black). Remove the holder
switch Assy
.
(4) Disconnect the connector
and the screw . Remove the low voltage power
supply fan
.
(5) Remove the MZA PCB. (Refer to chapter 4.2.3.7 (1) to (7).)
(6) Disconnect the connectors of the respective cables that pass through the A portion
from the PC/CU PCB.
(7) R
emove the screw
and the cover pow .
(8) Remove the two screws
and the earth screw . Disconnect the AC power
supply connector
.
A portion
Connectors of the respective cables
Warning
Electric shock can occur.
When replacing the low voltage power supply, there is a danger of electric shock.
Be sure to wear an insulation gloves or do not touch the electrically conduction
areas or terminal directly by hand during the part replacement work.
It takes approx. 1 minute for capacitors to be completely discharged after the AC
power cord is disconnected. Be careful not to receive electric shock because
capacitors may not discharge in case if PCB is defective.

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
