4. Part Replacement

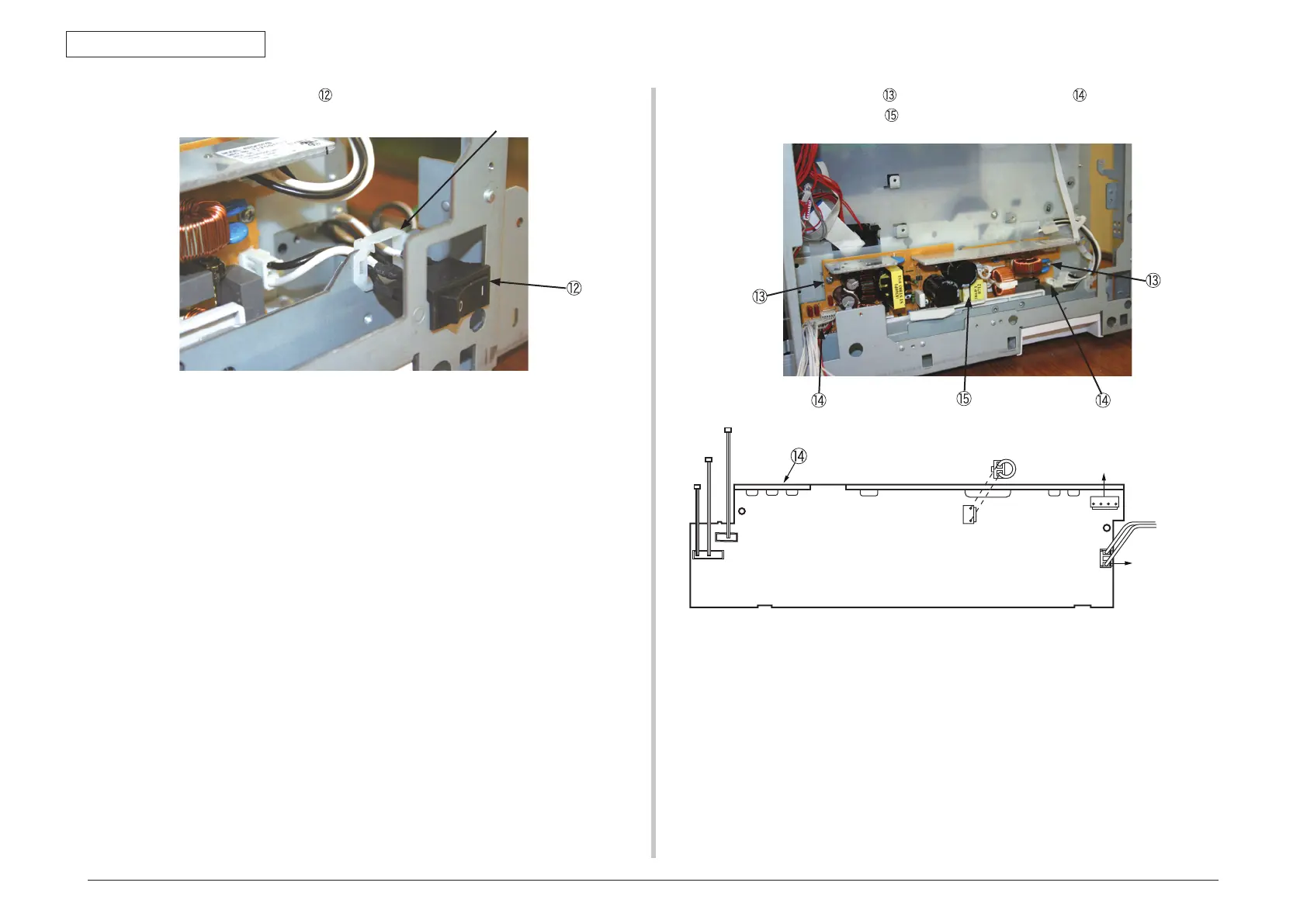

(9) Slide the AC POWER switch
upward and remove it from the cable clamp. (10) Remove the two screws . Disconnect the connector and remove the low
voltage power supply PCB
.
CN3
CN7
Fuser I/F connector
Low voltage PCB
CN6
CN2
Shorting plug
for CN6
AC POWER
switch
Cable clamp
