5. Maintenance Menu
5.15 Scanner registration adjustment method
Adjustment method of MFP is described when it has scanner registration error.
Default value of registration data is the data as of May 2, 2008. It can be changed in future.
5.15.1 Overview of the registration adjustment work
1. Perform the FBS scanning position adjustment.
2. Perform the ADF (front and rear) scanning position adjustment.
3. After items 1 and 2 are complete, check the registration error.
5.15.1.1 Operation method of the service function for registration
adjustment

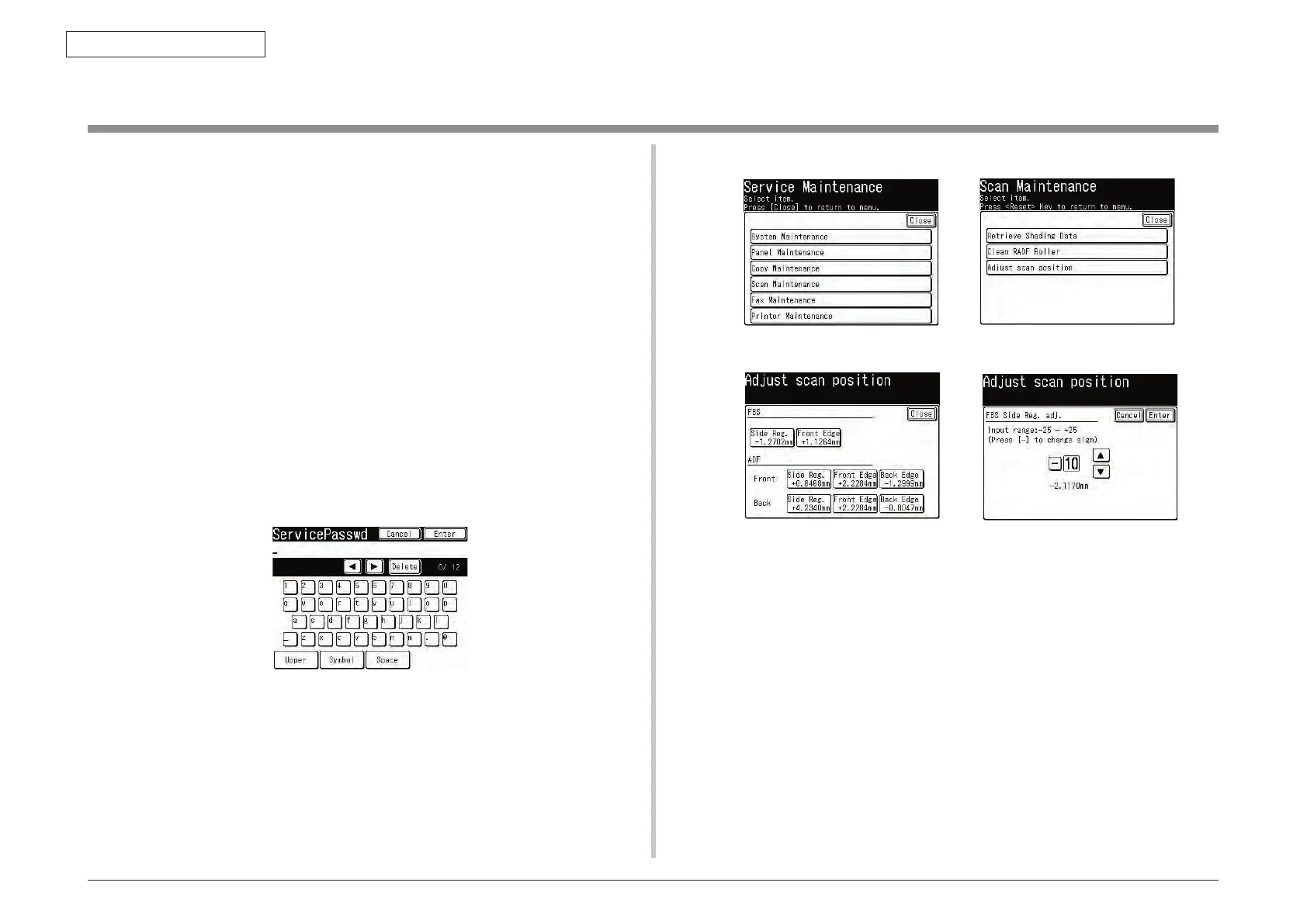

1) [SETUP], Press the dial keys in this order. [#], [1], [9], [3]. [7]
2) Input the service password (default value: 000000) and press [Enter].
3) [Scan Maintenance], Press [Adjust scan position]
4) Select the desired adjustment item.
Input the adjustment value using ten key. Select the adjustment position.
When + /- is pressed, position is switched. Input the setting value with ten-key.
5) Wh
en [Enter] is pressed, the setting job is complete and screen returns to the
selection screen. When [Cancel] is pressed, the setup value is not reflected.
6) T
o terminate all of the adjustments, press the [Reset] key.
