4. Part Replacement
4.2 Part replacement method
This chapter describes the replacement method of the parts and assemblies that are shown
in the following drawings showing method of disassembling.

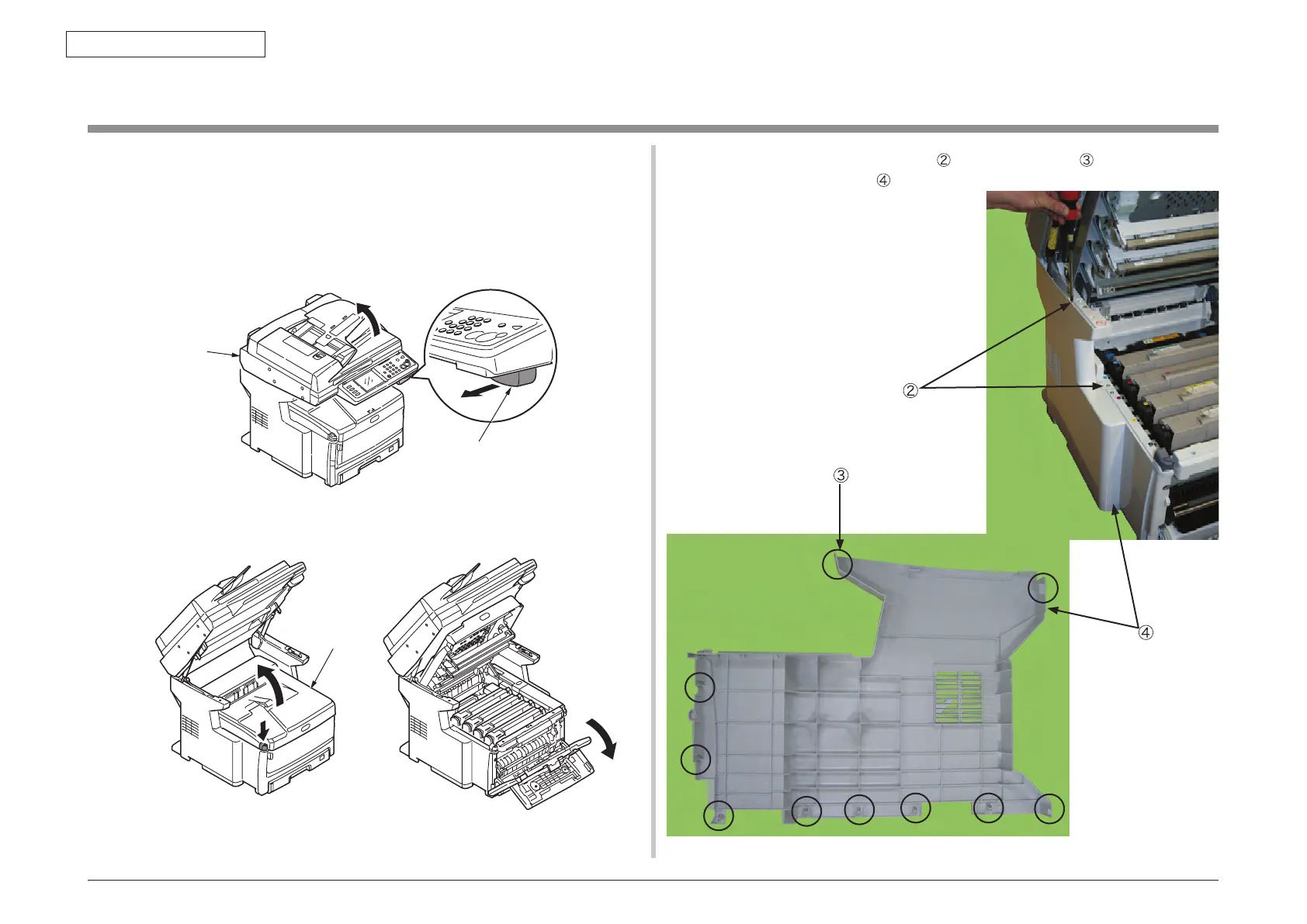

4.2.1 How to separate scanner and printer
(1) Raise the scanner.
(3) Remove the two screws (M3 L=8)
, release the latches at 10 locations, and
remove the Cover-Side-L
.
(2) Open the top cover and the front cover of the printer.
Top cover
Scanner
Scanner lock lever
×
10
