Oki MC860 - Add-On Tray Unit (Option)

Oki Data CONFIDENTIAL
43967002TH Rev. 1
190 /
4. Part Replacement
4.2.3.23 Add-on tray unit (option)

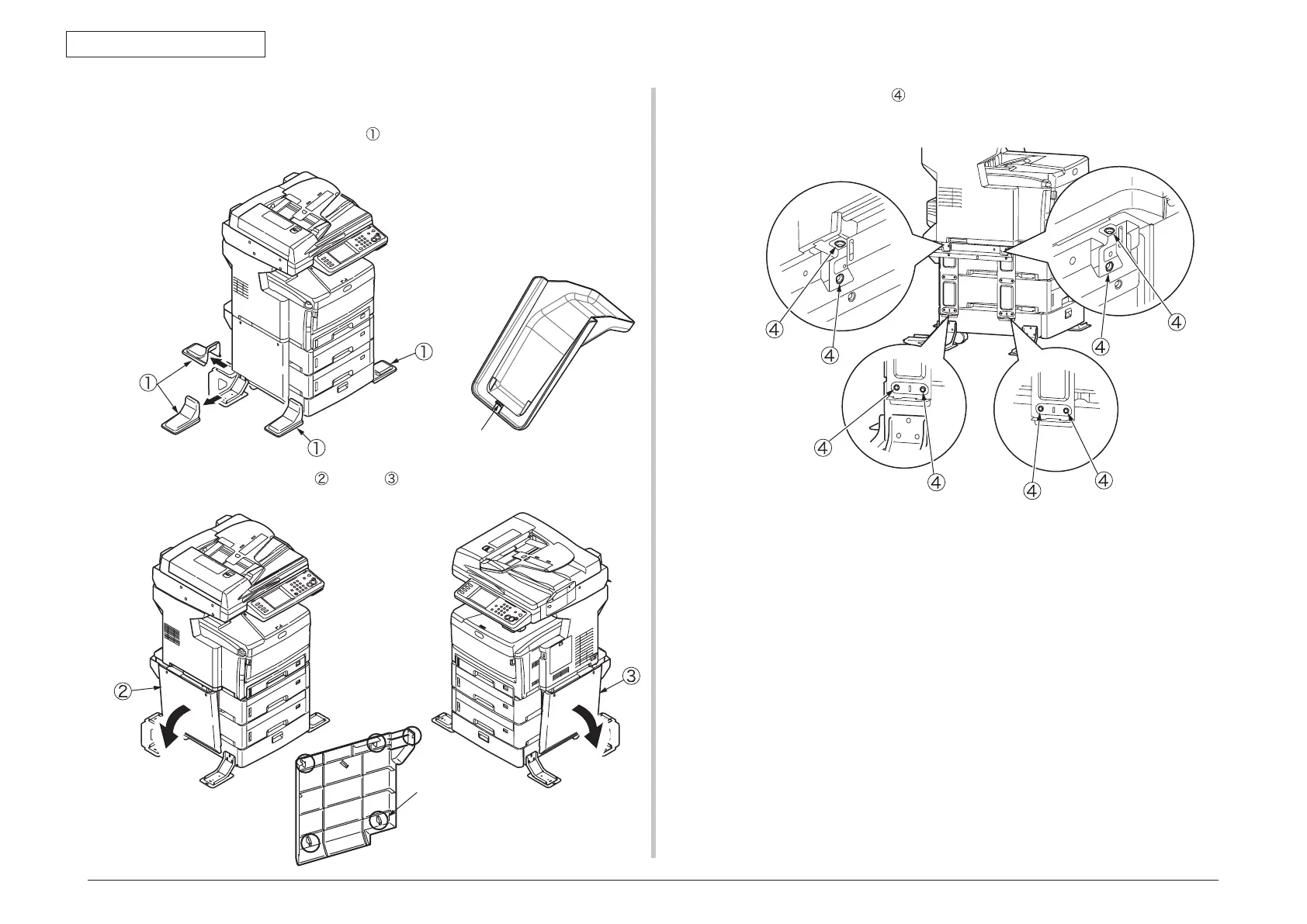

(1) Install the fall prevention foot covers (at the six locations) by sliding them in the
direction of the arrow.
(2) Remove the side covers (L) and (R) while tilting them in the direction of the
arrow.
(3) Remove the sixteen screws securely.
Left side
Hook x 5
Hook
