43967002TH Rev.1
253 /
Oki Data CONFIDENTIAL

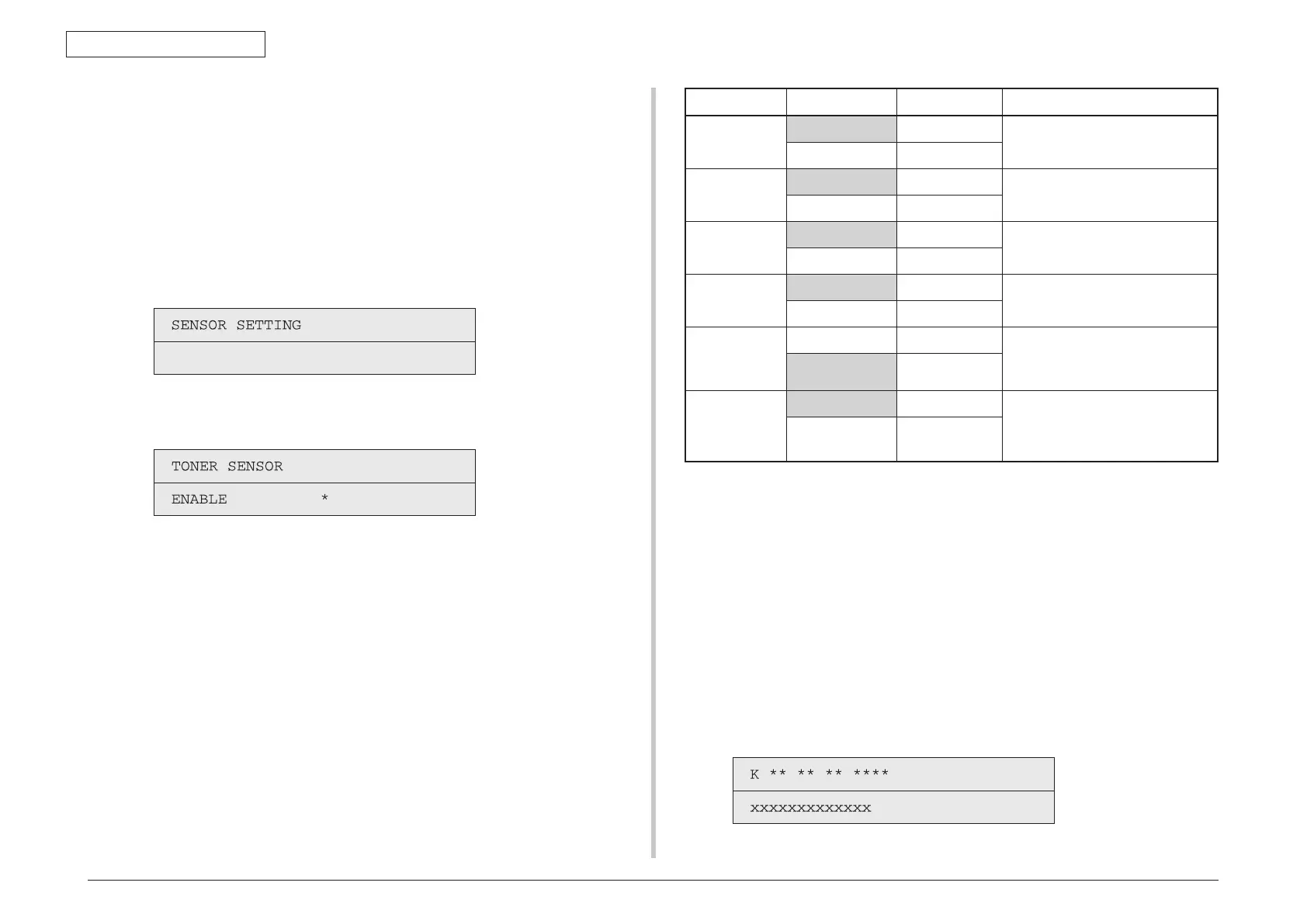

5. Maintenance Menu
5.10.3.11 Self-diagnostic function setting
This self-diagnostic menu is used to set Enable or Disable of error detections using various
sensors.
This menu enables operator to Disable or Enable the error detection temporarily. However,
this setting requires the specialized knowledge among the handlings of the print engine
operation, be very careful to disable the error detection.
When use of this menu comes to the end, be sure to return the setting values to the default
values.
1. E
nter the self-diagnostic mode (Level 1) and press the (2) key or (8) key until the
following message is displayed.
2. When the (6) key is pressed, the following message is displayed. Press the (2)
key or (8) key until the desired item (refer to the table below) is displayed.
3. When the (6) key is pressed, the setting values that are shown in the lower
column of the display window become selectable.
Pressing the (2) key increments the setting v
alue.
Pressing the (8) key decrements the setting value.
4. While the desired item to set is being displayed, press the (6) key for an
extended time (3 seconds) to register the displayed value in EEPROM. Screen
returns to the item 2 condition.
5. Repeat items 2 and 3 as required.
6. Press the (4) key (excluding the condition of item 4) to exit the menu. (Screen
returns to the item 1 condition.)
Display Setting value Operation Function
TONER
SENSOR
ENABLE To detect Sets Enable/Disable of the toner
sensor operation
DISABLE Not to detect
BELT UNIT
CHECK
ENABLE T
o check Sets Enable/Disable of the belt
installation check job.
DISABLE Not to check
ID UNIT
CHECK
ENABLE To check Sets Enable/Disable of the ID
installation check job.
DISABLE Not to check
UP/DOWN
SENSOR
ENABLE T
o detect Sets Enable/Disable of the ID
UP/DOWN sensor operation
DISABLE Not to detect
REG ADJUST
ERROR
ENABLE
To stop Sets Enable/Disable of the
error stop caused by the color
registration error detected value.
DISABLE Not to stop
DRUM OVER
LIFE
STOP To prolong life To prolong or not to prolong the
drum life when it reaches the
lifetime.
CONTINUANCE Not to prolong
life
Hatched portion: Indicates the default setting.
5.10.3.12 LED head serial number display
This self-diagnostic menu is used to check whether or not the LED head downloaded data
matches the serial number of the actual LED head.
1. E
nter the self-diagnostic mode (Level 1) and press the (2) key or (8) key until [LED
HEAD DATA] is displayed in the top of the screen. Then, press the (6) key. (The (2)
key increments the test item and (8) key decrements the test item.)
2. When
the (2) key or the (8) key is pressed serial numbers of the K/Y/M/C LED
head data are displayed in order.
3. When
the (4) key is pressed, the screen exits the test. (Screen returns to the
item 1 condition.)
** ** ** **** : Revision number
xxxxxxxxxxxxx : Serial number
