3. Installation

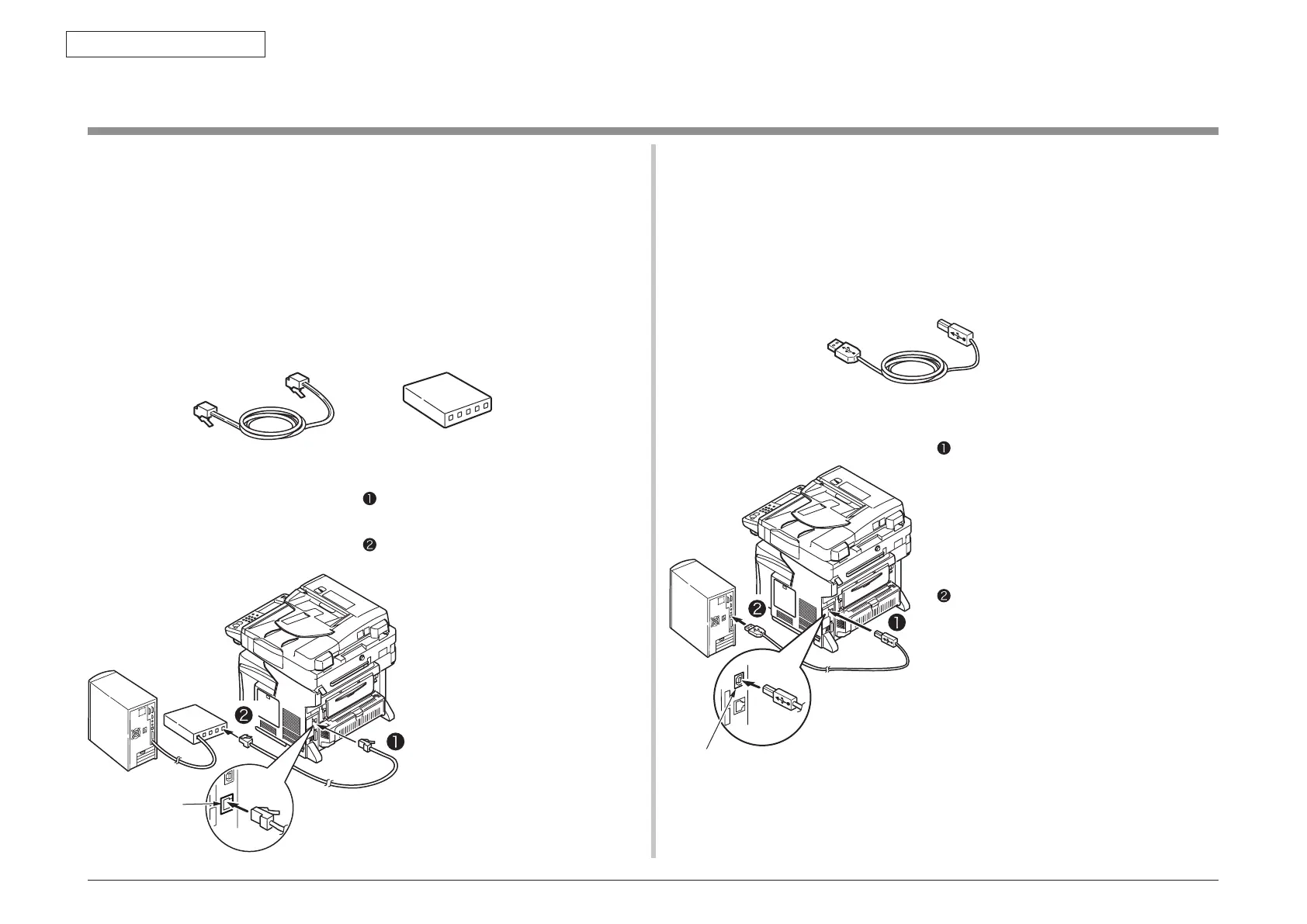

1. Prepare Ethernet cable and hub.
Note! Ethernet cable and hub are not supplied. Prepare Ethernet cable
(category 5, twist-pair cable, straight) and hub separately.
Prepare Ethernet cable hub
Network
interface
connector
Connect the Ethernet cable to the network
interface connector of the MFP.
Connect the Ethernet cable to the hub.
2. Connect the MFP to network.
3.10.1 Connect the interface cable.
3.10.1.1 Connect the network cable.
3.10.1.2 Connect the USB cable.
1. Prepare a USB cable.
Note!
• USB cable is not supplied. Prepare cable of USB2.0 specification
separately.
• When connecting with the USB 2.0 “Hi-Speed” mode, prepare a
USB cable supporting Hi-Speed specifications.
USB interface connector
2. Connect a USB cable.
3.10 Connection method
Insert a USB cable to the USB interface
connector of the MFP.
Note! Be certain not to insert a USB
cable into the network interface
connector. Doing so may cause
malfunction.
Insert a USB cable to the USB interface
connector of PC.
