Oki MC860 Maintenance Manual

43967002TH Rev.1
226 /
Oki Data CONFIDENTIAL
5. Maintenance Menu
5.7 Mirror carriage mode
This item sets Operable/Inoperable of the mirror carriage movement.
During transportation and installation of the MC860, this setting should be changed.
5.7.1 How to enter the mirror carriage communication mode

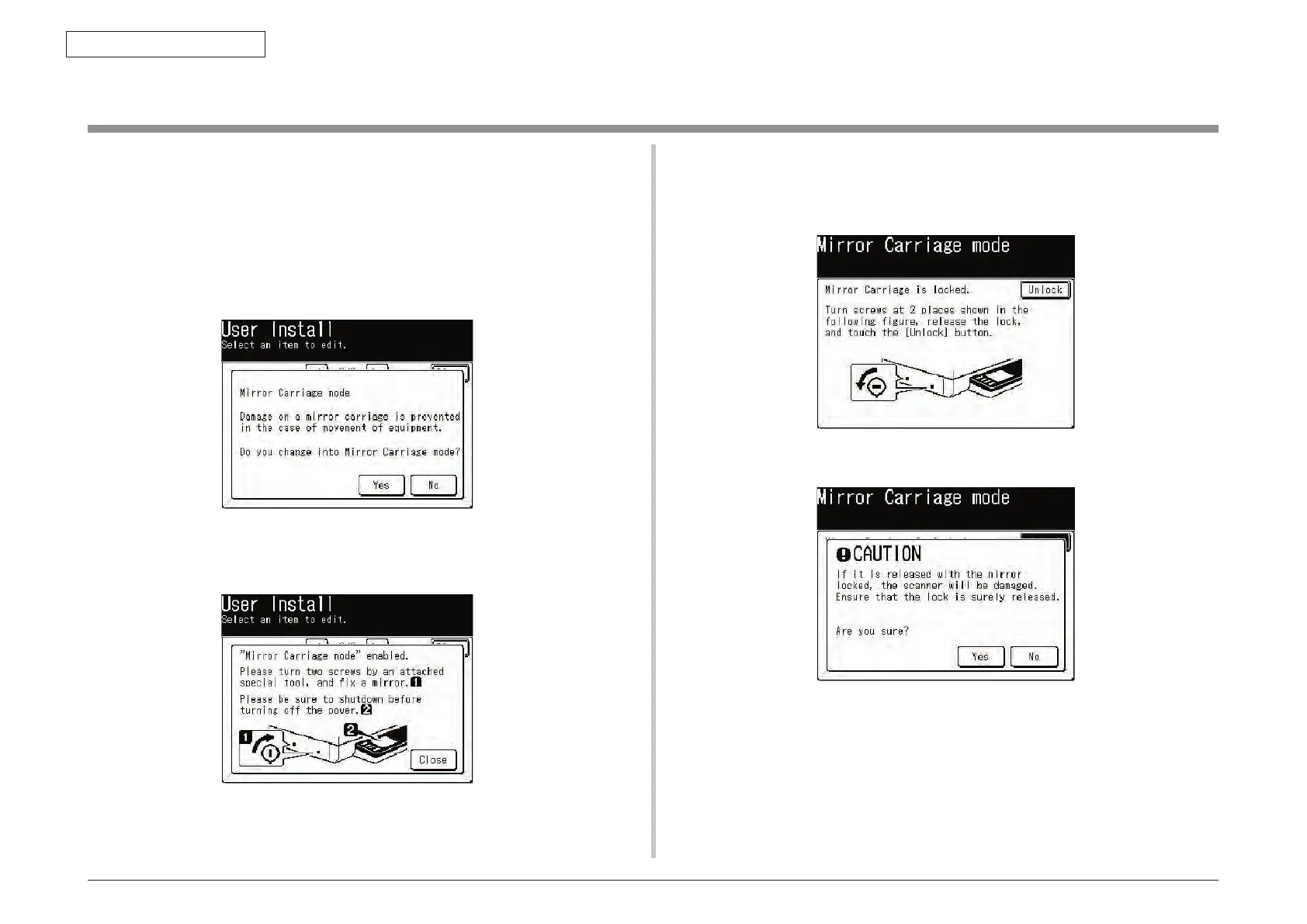

When the menus of [SETUP] – [Admin Setup] – [User Install] – [Mirror carriage mode] are
selected, the following screen is displayed.
Before stating transportation of the MC860, select [Yes] to start movement of the mirror
carriage to the specified position.
When movement of the mirror carriage is complete, the following screen is displayed.
Tighten the screws at the locations as specified in the illustration, and press the [Close]
button.
When the mirror carriage is locked in the specified position, select the menus [SETUP] –
[Shutdown] to execute the shutdown operation. Then turn OFF the power.
5.7.2 How to release the mirror carriage mode
When the MC860 remains in the mirror carriage mode, the following standby screen is
displayed.
Remove the screws at the locations specified in the illustration, and press the [Cancel] button.
The following screen is displayed.
Confirm to see that the mirror carriage mixing screws are removed. Then select [Yes] to
release the mirror carriage mode so that the mirror carriage is returned to the normal
operating condition.

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
