Oki MC860 Maintenance Manual

43967002TH Rev.1
49 /
Oki Data CONFIDENTIAL
2. Theory of Operation
2.3.1.5 Jam detection
Jam

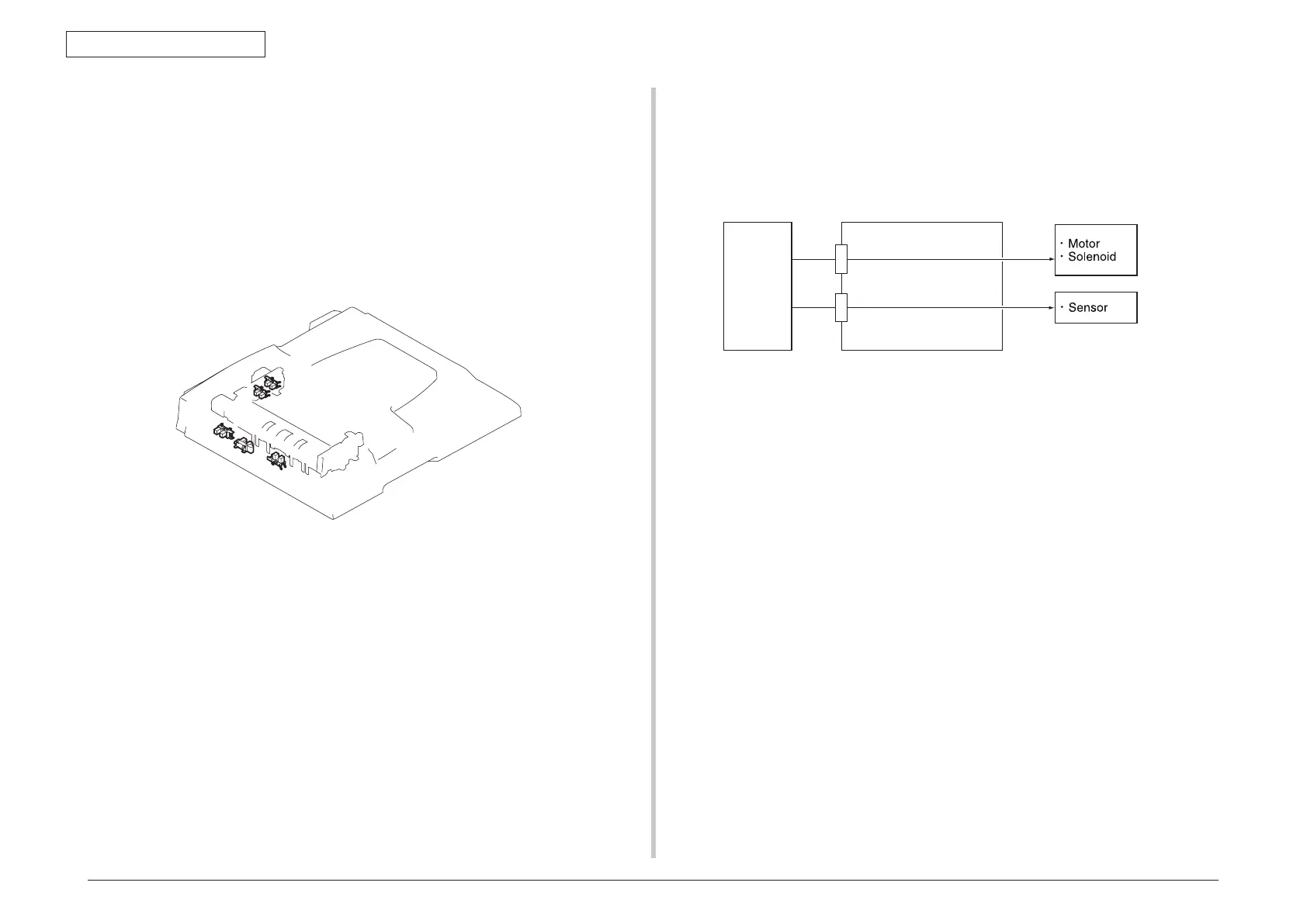

Document jam is detected by the sensors shown in the illustration. Check timing of the
document jam detection has already been memorized in the ROM of the image processor
circuit PCB beforehand so that jam occurrence can be judged from the information if a
document exits or not, at the corresponding sensor block.
When jam occurs, the connected equipment memorizes the contents of the jam as a jam
code. The jam code of the MFP can be checked by outputting the jam error history report by
the service mode of the connected equipment.
2.3.1.6 Power supply
Power supply
Overview of the power supply is shown in the illustration below The power supply block of the
MFP receives the power supply of two systems that are 24 V power supply and 3.3 V power
supply.
PI6: Unload paper inversion sensor
PI7: Read sensor
PI8: Regist paper sensor
PI10: Cover open/close sensor
PI11 Document set sensor
PI10
PI7
PI6
PI8
PI11
24V
3.3V
3.3V
24V
Connected
equipment
ADF driver circuit PCB
CN10
CN2

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
