Oki MC860 Maintenance Manual

43967002TH Rev.1
213 /
Oki Data CONFIDENTIAL
5. Maintenance Menu
5.1 Service function
The service function shall be used for the purpose of MFP maintenance by the experienced
maintenance/service engineer, and is not opened of its specifications to general users. The
respective items of the service function are contained in the service menu.
5.1.1 How enter the service menu
Enter the service menu by the following operation.
1. The password entry screen is displayed when the special operation of the
hardware keys is operated while an MFP is running. The MFP enters the
condition waiting for password entry.
2. When
the password that is entered by maintenance/service engineer matches
the specified password, the service menu is displayed.
5.1.1.1 Special operation of the hardware keys
The operation procedure to display the password entry screen of the service menu is
described as follows.
1. To display the “SETUP”, press the [SETUP] key while an MFP is running.
2. Press the ten-keys in the order of [#]
[1] [9] [3] [7].
3. The password entry screen is displayed.
5.1.1.2 Password entry screen
Value Default Display condition
Password within 6 to 12 digits 000000 None
Enter the password that is required to enter the service menu.
The password should be entered with the 6- to12-digit alphanumeric characters.
Password can be changed by the “Change Password” menu of the “System Maintenance”
menu.
5.1.2 Operation required upon completion of the service
menu operation

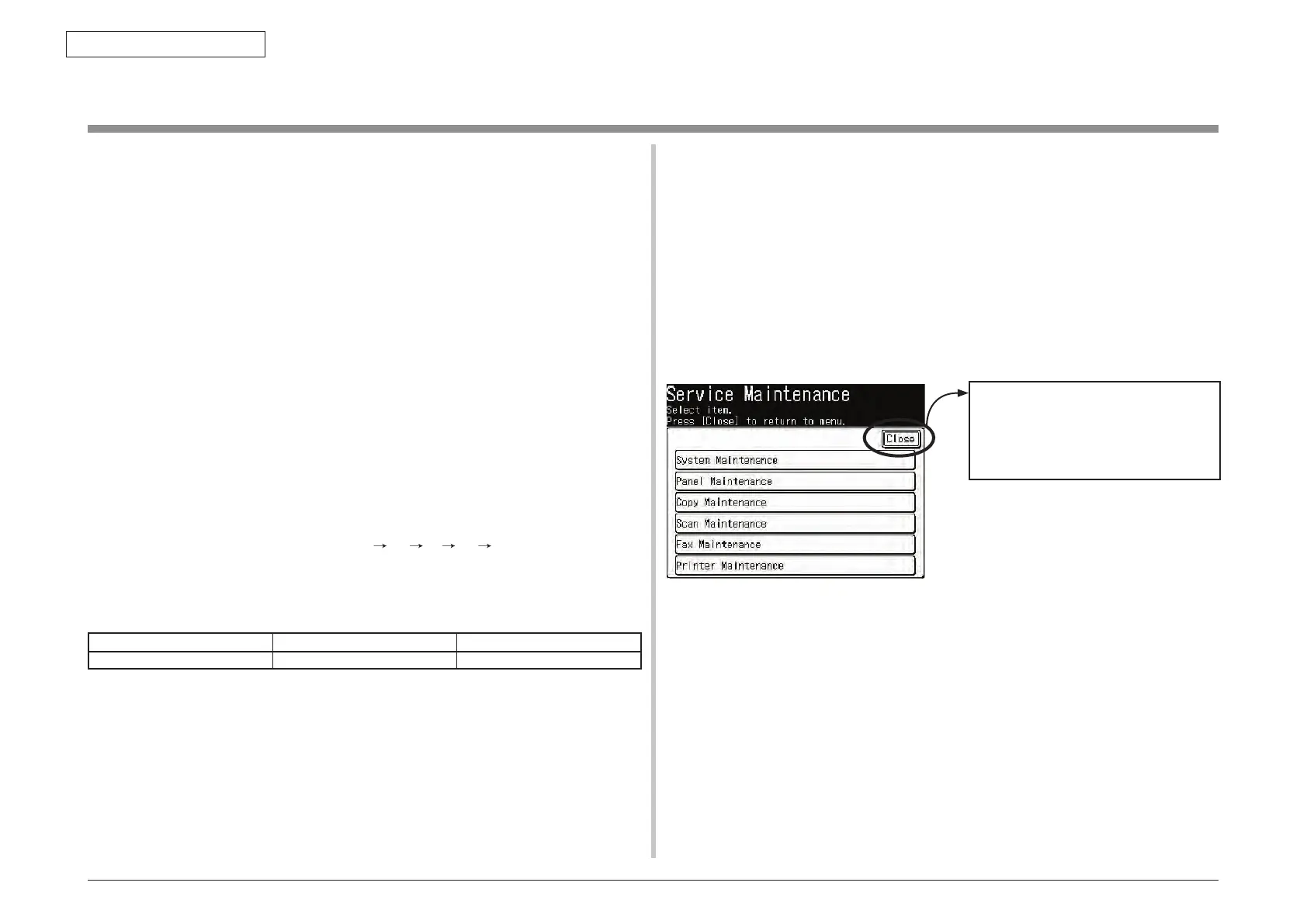

In order to complete operations of the service menu, the [Close] button that is displayed
on the service menu top screen should be pressed. Transition to the normal operation by
pressing the hardware keys such as RESET key is regarded as invalid.
If any change of setting that requires reboot of the MFP to reflect the changed setting is
made and the [Close] button is pressed, an MFP enters the normal operating condition after
the MFP reboots. Regarding the items that require reboot of MFP, refer to section 5.2.1.
When the [Close] button is pressed, the MFP
enters the normal operating condition.
* Transition to the standby screen by pressing
the hardware keys such as RESET key is
regarded as invalid.

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
