Oki MC860 Maintenance Manual

Oki Data CONFIDENTIAL
43967002TH Rev. 1
143 /
4. Part Replacement
[Maintenance tools]

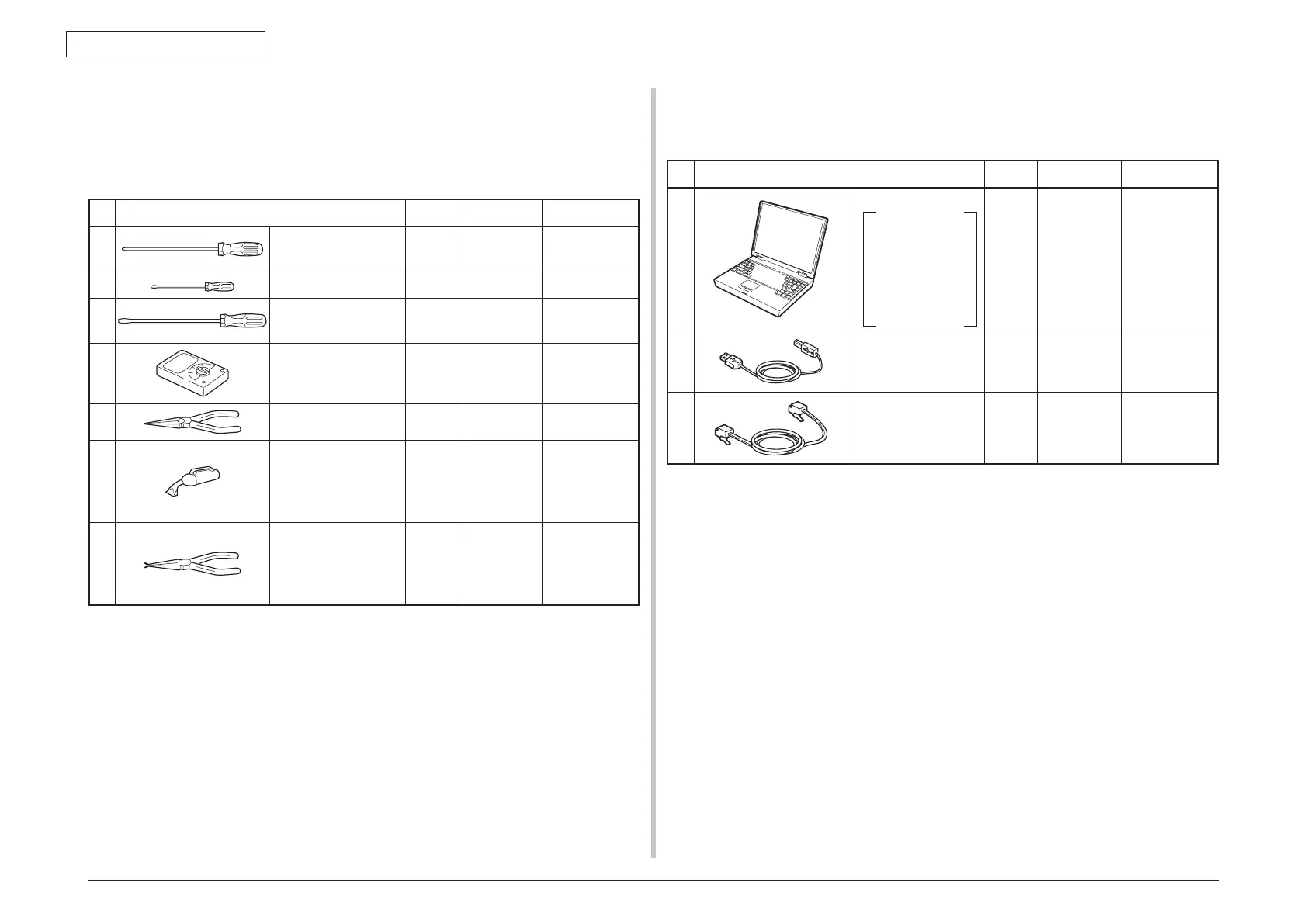

The tools that are required for replacement of PCB and unit are shown in Fig. 4-1-1.
Fig. 4-1-1 Maintenance tools
No. Maintenance tools
Quantity
Use Description
1
No. 2-200 + Magnetic
screwdriver
1
3-5 mm
screw
2
No.3 100 screwdriver 1
3
No.3 -200
screwdriver
1
4
Digital multi-meter 1
5
Pliers 1
6
Handy vacuum
cleaner (Toner
handling type)
1
Follow the
precautions
described
below
7
E-ring pliers 1
For
installation
and removal
of E-ring
Note! Use a vacuum cleaner of the toner handling type. If general-purpose vacuum
cleaner is used, it can cause fire.
Tools that are required when using the maintenance utilities are shown in Fig. 4-1-2.
Fig. 4-1-2 Maintenance tools
No. Maintenance tools
Quantity
Use Description
1
Notebook PC
The Maintenance
Utilities should
have already
been installed
beforehand in this
PC.
1
For the
Maintenance
Utilities, refer
to chapter
5-13.
2
USB cable 1
3
Ethernet cable
(crossover cable)
1

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
