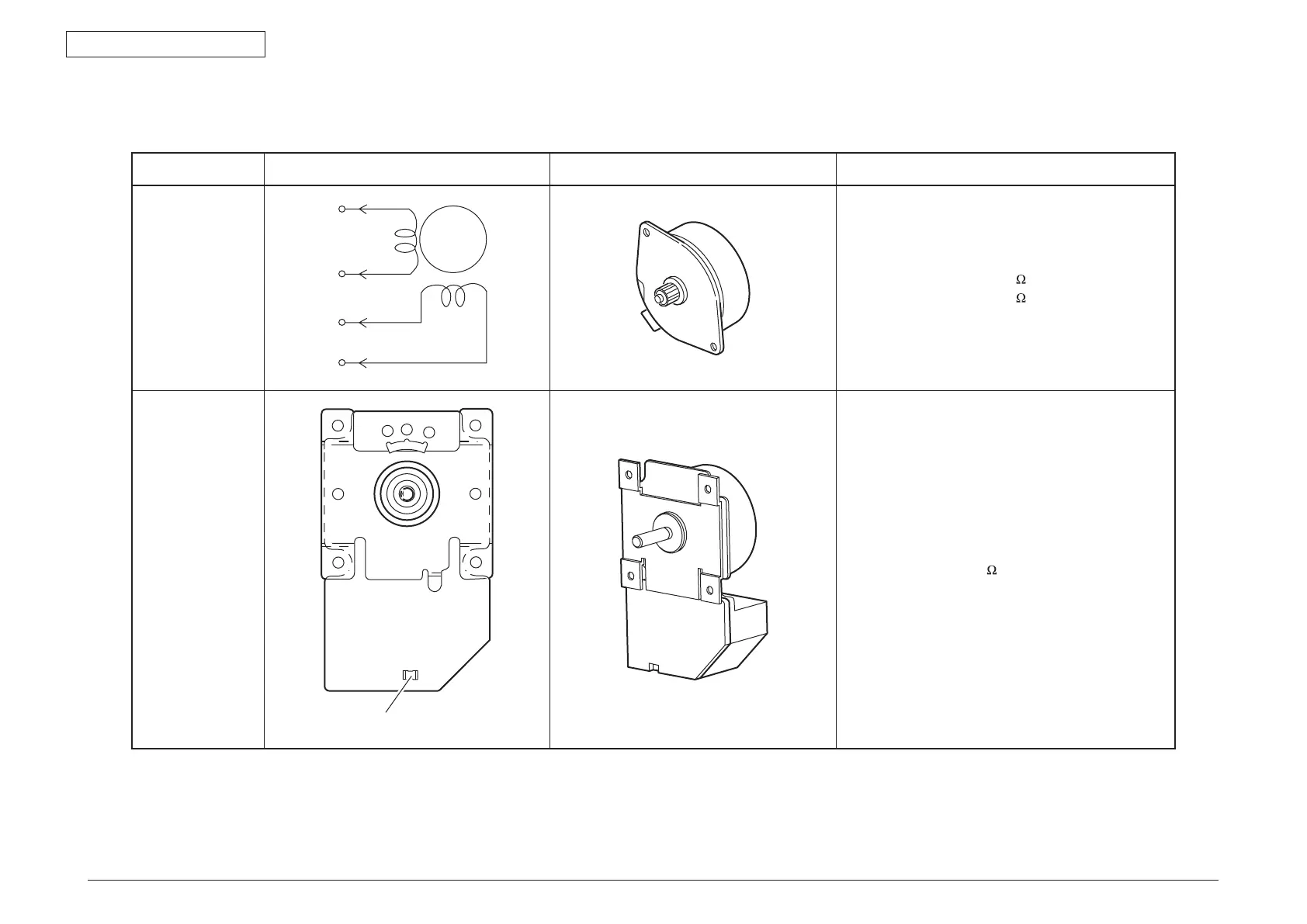

8. Connection Diagrams
Unit Circuit diagram and configuration Part drawing Resistance value
ID up/down motor
M
1
2
3
4
Between pin-1 and pin-2: 6.1
Between pin-3 and pin-4: 6.1
Fuser motor
IP1
Across IP1: Less than 1
