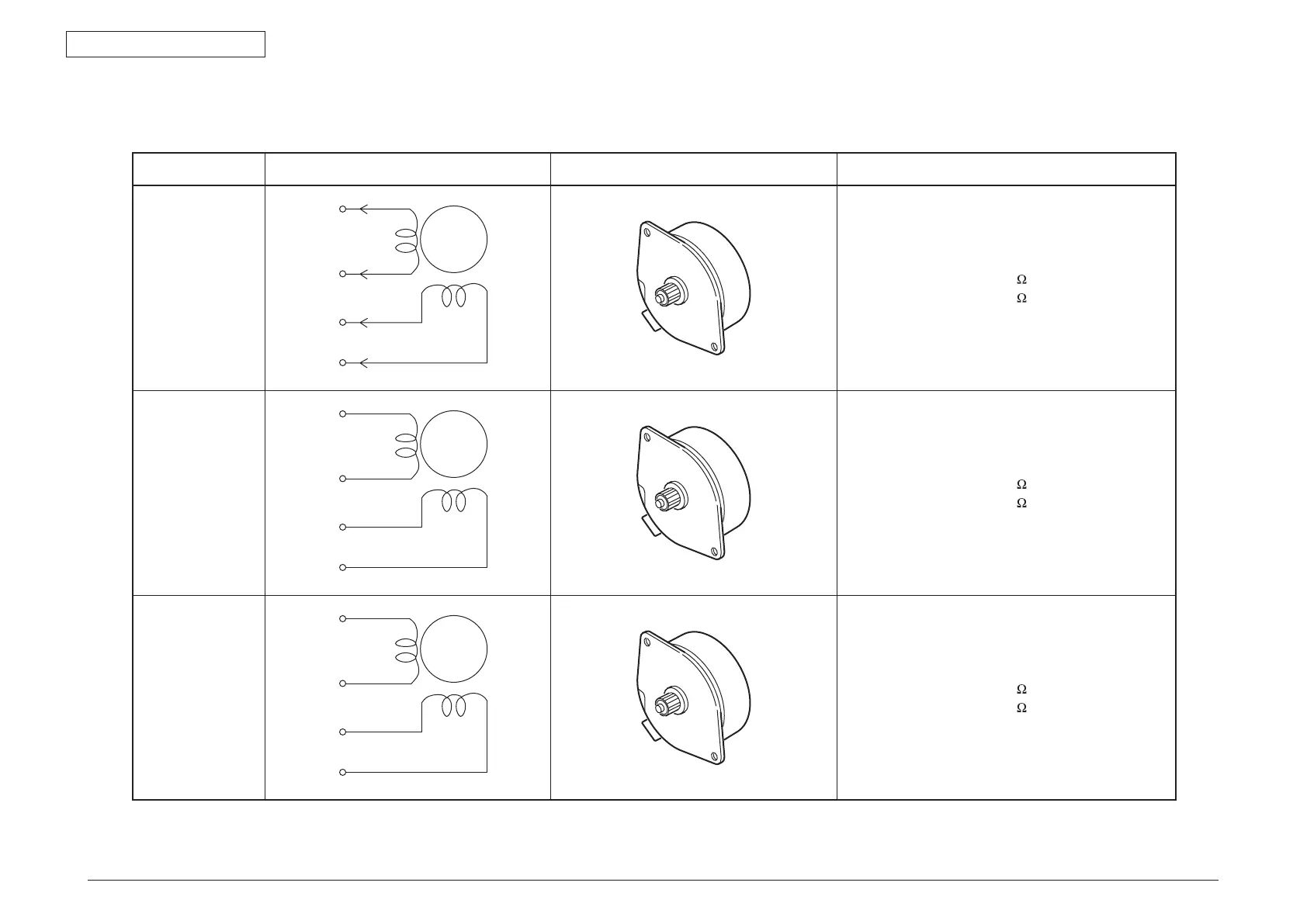

8. Connection Diagrams
Unit Circuit diagram and configuration Part drawing Resistance value
Paper feed motor
M
1
2
3
4
Between pin-1 and pin-2: 3.4
Between pin-3 and pin-4: 3.4
Both-side print
motor
M
1
2
3
4
Between pin-1 and pin-2: 2.4
Between pin-3 and pin-4: 2.4
2nd tray paper feed
motor
M
1
2
3
4
Between pin-1 and pin-2: 3.4
Between pin-3 and pin-4: 3.4
