Oki MC860 Maintenance Manual

43967002TH Rev.1
137 /
Oki Data CONFIDENTIAL
3. Installation

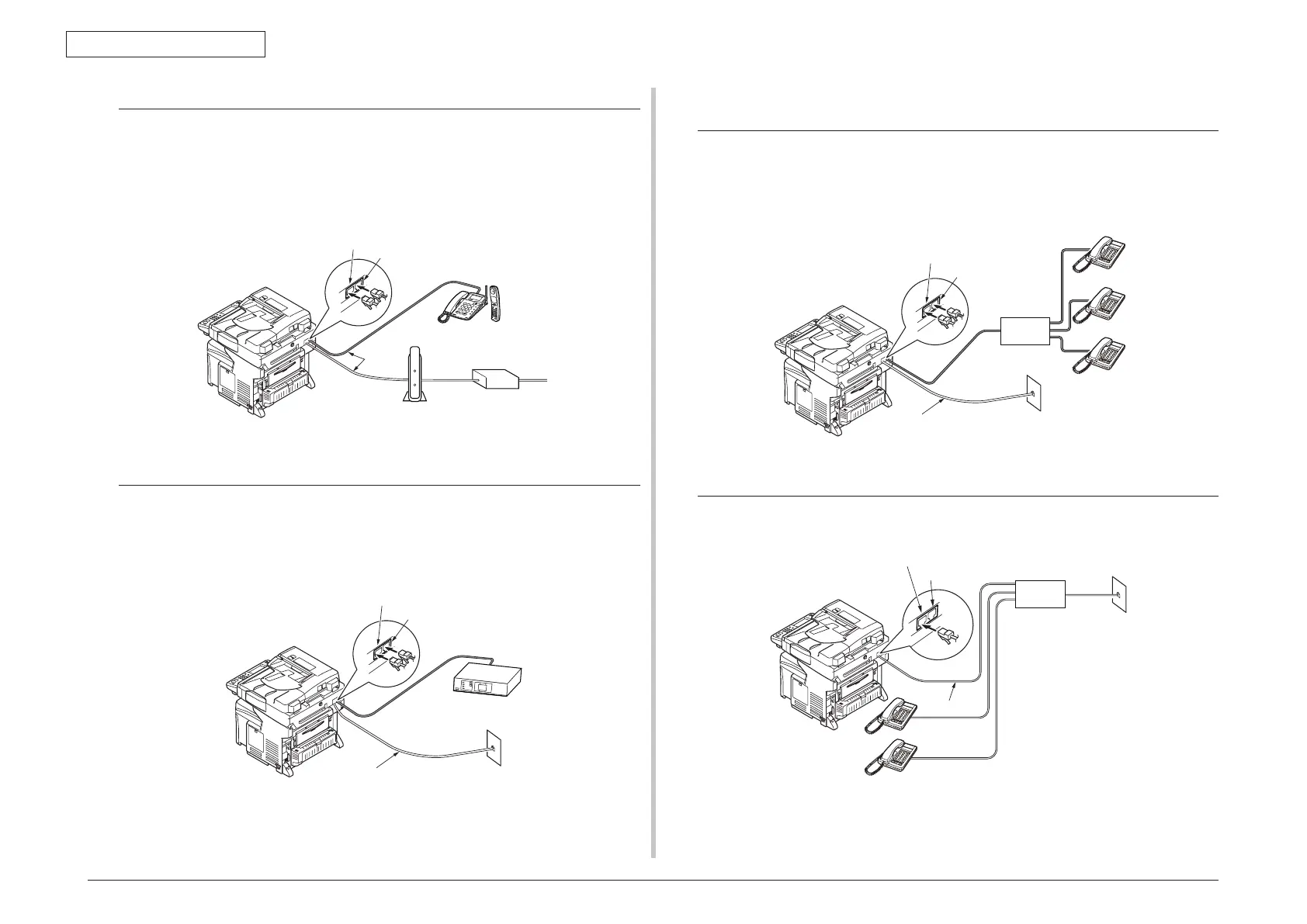

To connect to the HIKARI (IP telephone)
Connect the telephone cable that is connected to the HIKARI (IP telephone) to the [LINE
connector] of the MFP. Connect the external telephone machine to the [TEL connector]
of the MFP
Note! When using the Super G3 communication, check that the
communication quality of provider is guaranteed.
To connect the MFP to CS tuner or digital TV
Connect the telephone cable that is connected to the public telephone line (analog) to
the [LINE selector] of the MFP.
Connect the telephone cable that is connected to the CS tuner or digital TV to the [LINE
connector] of the MFP.
HIKARI
(IP telephone)
LAN
cable
Optical cable
Line terminator
(ONU)
* Connect the telephone
machine.
TEL connector
LINE connector
Telephone
line cable
Cordless phone and
other external telephone machine
Telephone line cable
Public telephone line
(analog)
CS tuner or
digital TV
TEL connector
LINE connector
Telephone line cable
Public telephone line
(analog)
PBX and
other control
system
TEL connector
LINE connector
Public telephone line
(analog)
PBX and
other control
system
TEL connector
LINE connector
Telephone line cable
To connect to the telephone switch board (PBX), home telephone, or
business phone
Connect the telephone cable that is connected to the public telephone line (analog) to
the [LINE connector] of the MFP.
Connect the telephone cable that is connected to the PBX and other control system to
the [TEL connector] .
To connect to the private phone system
Connect the telephone cable that is connected to the PBX and other control system
to the [LINE connector] .

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
