4. Part Replacement

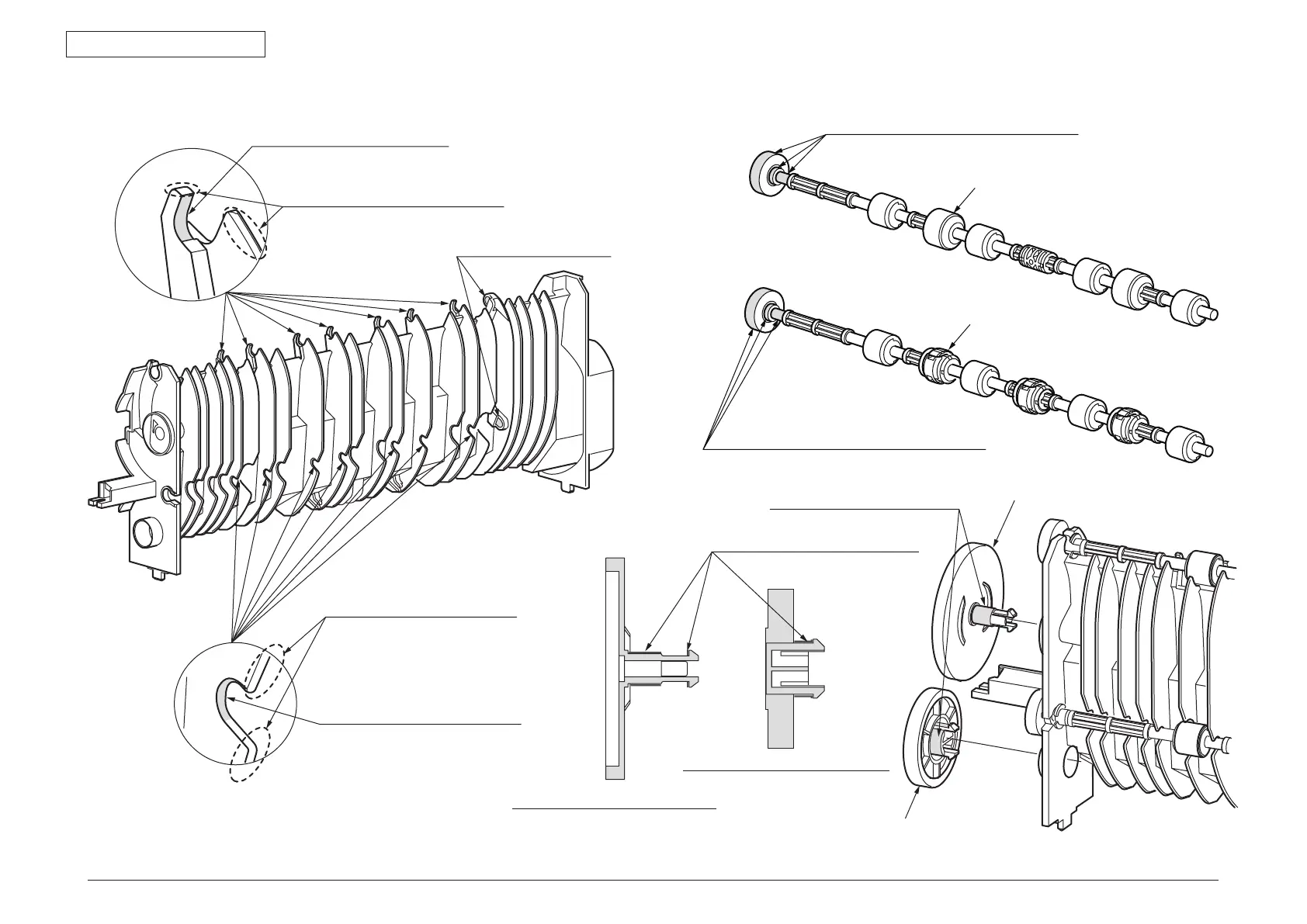

4. Guide-Eject-Upper
Apply normal amount of MOLYKOTE (EM-30L)
to the surface of gear teeth, shaft, and the flange
portions
EM-30L Class C
Shaft-Assy. -Eject-(FD)
Apply normal amount of MOLYKOTE (EM-30L)
to the surface of gear teeth, shaft, and the flange
portions
EM-30L Class C
Shaft-Assy. -Eject-(FU)
No grease at the paper running face
No grease at the paper running face
Apply a small amount of MOLYKOTE
(EM-30L) to hatched area (7 Places)
EM-30L Class A
Apply a small amount of MOLYKOTE
(EM-30L) to hatched area (7 Places)
EM-30L Class A
Bearing Portion (2 places)
EM-30L Class C
Apply normal amount of MOLYKOTE
(EM-30L) to the surface of the Posts
EM-30L Class C
Gear-Idle-Exit(Z58)
Gear-Idle-Exit(Z41)
Apply normal amount of MOLYKOTE
(EM-30L) to the surface of the Posts
EM-30L Class C
Cross section of Gear-Idle-Exit(Z58)
Cross section of Gear-Idle-Exit(Z58)
