2. Theory of Operation
(4) ID unit up/down movement
1. U
p/down movement of the ID unit is driven by the lift up motor.

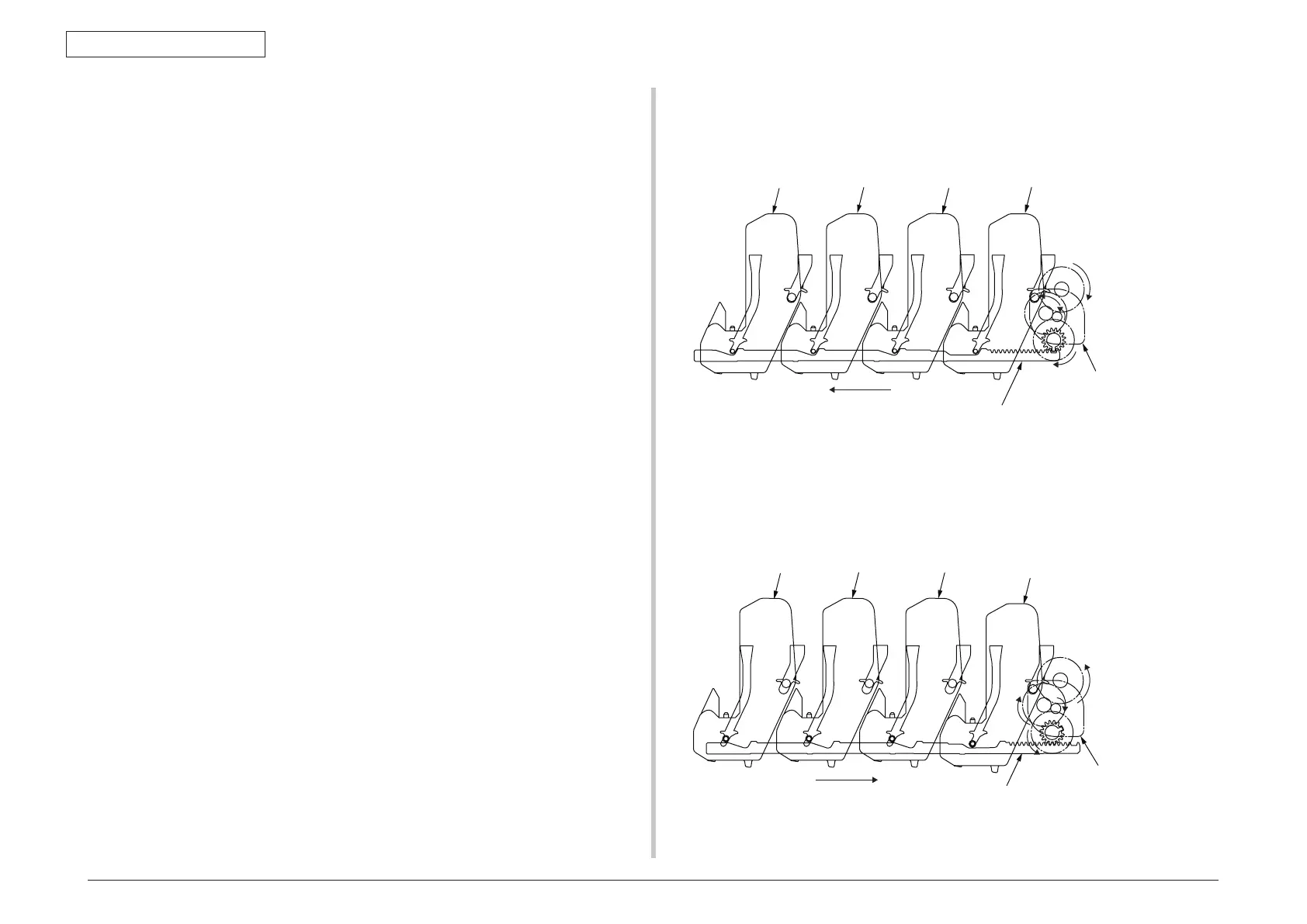

2. Operations of the respective ID units during color print are shown in Fig. 2-6.
When the lift up motor rotates (in counter-clockwise direction), the lift up link
slide to the left and moves down the respective ID units as shown in Fig.
2-6. This condition means that color print is ready .
3. O
perations of the respective ID units during monochrome print are shown in
Fig. 2-7. When the lift up motor rotates (in clockwise direction), the lift up link
slide to the right and moves down the respective ID units as shown in Fig.
2-7. This condition means that monochrome print is ready .
Lift up link
C-ID unit M-ID unit Y-ID unit K-ID unit
Lift up motor
(Rotates in counter-clockwise direction.)
Operations of the respective ID units during color print
C-ID unit down
M-ID unit down
Y-ID unit down
K-ID unit down
Lift up motor
(Rotates in clockwise direction.)
Lift up link
Operations of the respective ID units during monochrome print
C-ID unit lift up
M-ID unit lift up
Y-ID unit lift up
K-ID unit down
C-ID unit M-ID unit Y-ID unit K-ID unit
Fig. 2-6
Fig. 2-7
