Omron F3SG series User Manual

146
Chapter4 Dimensions
F3SG-R
User’s Manual
Wiring/Installation
 Connected with Optional Accessories

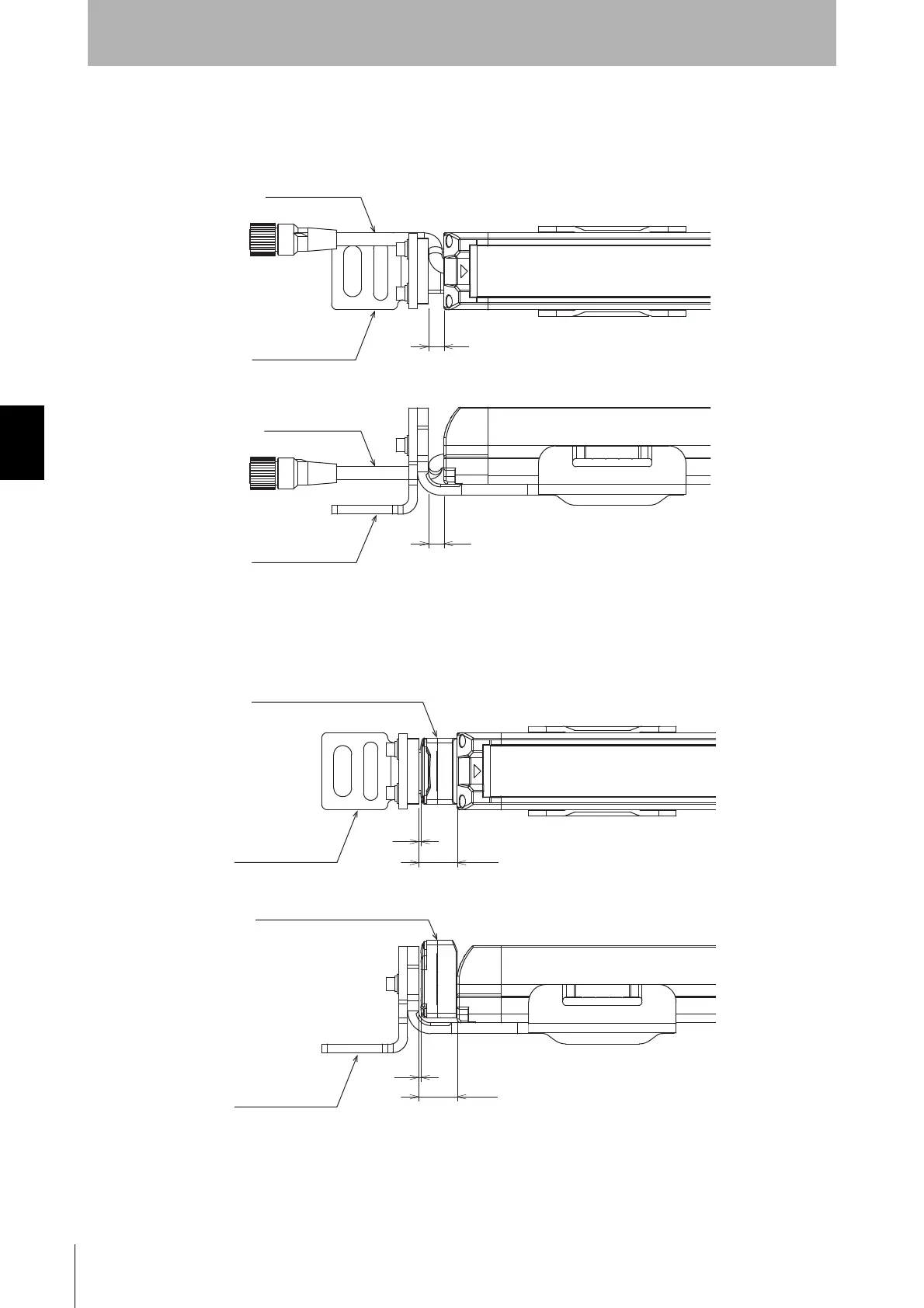

• Connected with Cascading Cable (F39-JGR2W) (Enlarged view of connected area)
• Connected with Bluetooth
®
Communication Unit (F39-BT) (Enlarged view of connected area)
7
Cascading Cable
(F39-JGR2W)
Top/Bottom
Adjustable Bracket
(F39-LGTB)
Top/Bottom
Adjustable Bracket
(F39-LGTB)
7
Cascading Cable
(F39-JGR2W)
1
17.5
1
17.5
Bluetooth
®
Communication Unit
(F39-BT)
Bluetooth
®
Communication Unit
(F39-BT)
Receiver
Top/Bottom
Adjustable Bracket
(F39-LGTB)
Top/Bottom
Adjustable Bracket
(F39-LGTB)

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
