150
Chapter4 Dimensions
F3SG-R
User’s Manual
Wiring/Installation

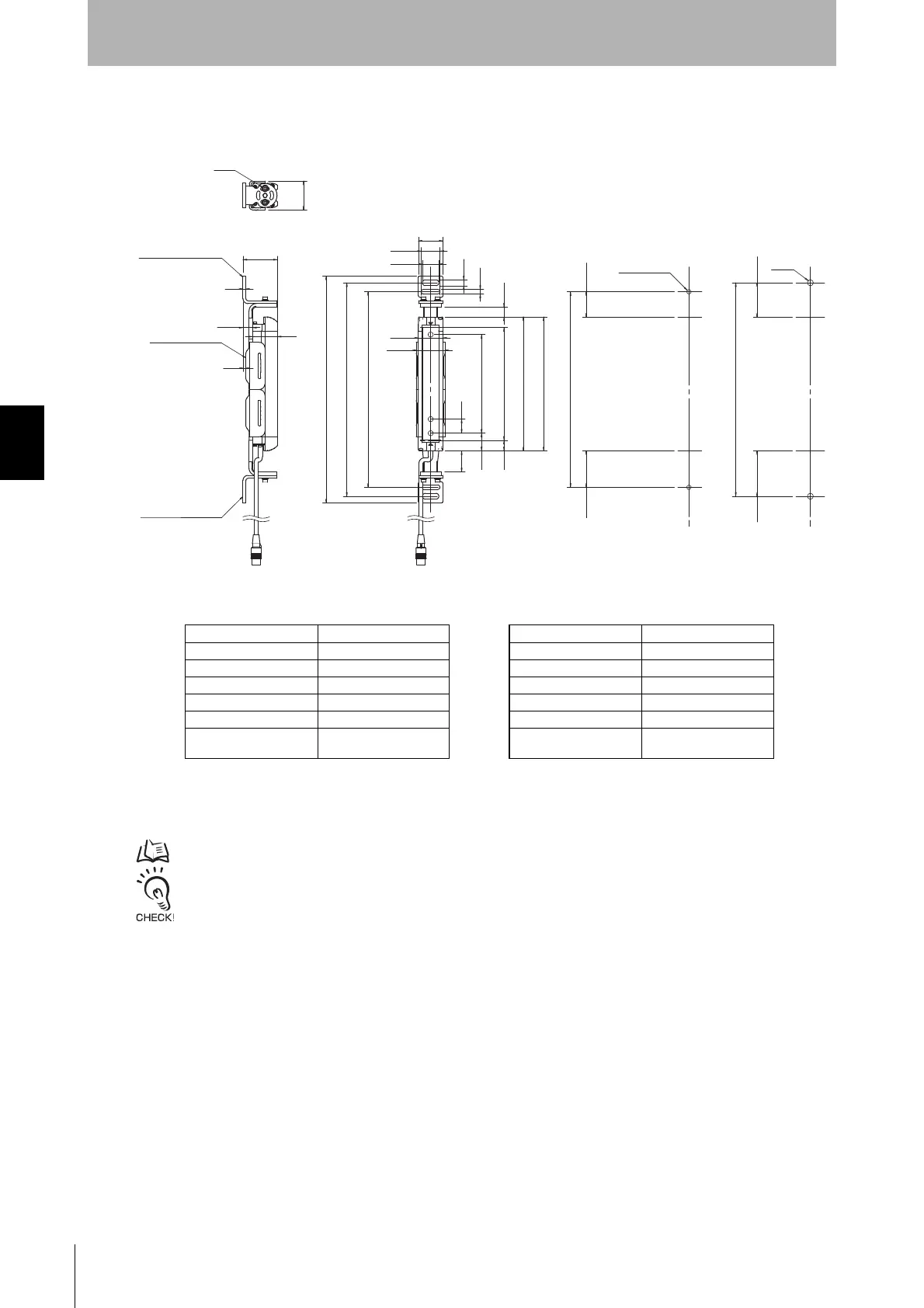

 F3SG-4RE019030 and F3SG-4RE016014
[Backside Mounting]
4-4-3-3. Mounting with Top/Bottom Adjustable Brackets (F39-LGTB)
- Use the brackets of specified quantities and locations according to the dimensions. The other brackets than described
above may not meet the specified ratings and performance.
- When you use the sensor in a situation where the sensor is under a load, increase the number of the brackets used.
- The Top/Bottom Adjustable Bracket and Standard Adjustable Bracket allow beam alignment after fixing the bracket to a
wall surface. The angle adjustment range of the Top/Bottom Adjustable Brackets is ±22.5°. The angle adjustment range
of the Standard Adjustable Brackets is ±15°.
35
4
4
13.6
48.6
2-S3
40.8
2-M8
35
35
40.8
G
H
26.5
I
23.2
6.5
190
8.2
14
30 P
15 25
35.75
H
48.5 64.5
51.75
G
D
Top/Bottom
Adjustable Bracket
(F39-LGTB)
Top/Bottom
Adjustable Bracket
(F39-LGTB)
Backside : 2-S3
2-M5 or M6
C1 (Protective height for 30 mm)
C2 (Protective height for 14 mm)
<Screw for Top/Bottom Adjustable
Bracket: M5 or M6>
<Screw for Top/Bottom
Adjustable Bracket: M8>
F3SG-4RE019030
Dimension C1 190
Dimension D 140
Dimension G 277.5
Dimension H 303
Dimension I 322
Dimension P 20
Number of Top/Bottom
Adjustable Brackets*
2
F3SG-4RE016014
Dimension C2 160
Dimension D 140
Dimension G 277.5
Dimension H 303
Dimension I 322
Dimension P 10
Number of Top/Bottom
Adjustable Brackets*
2
[ Unit : mm ]
* The number of brackets required to mount either one of emitter and receiver.
