F3SG-R
User’s Manual
Chapter4 Dimensions
Wiring/Installation
E
[Side Mounting]

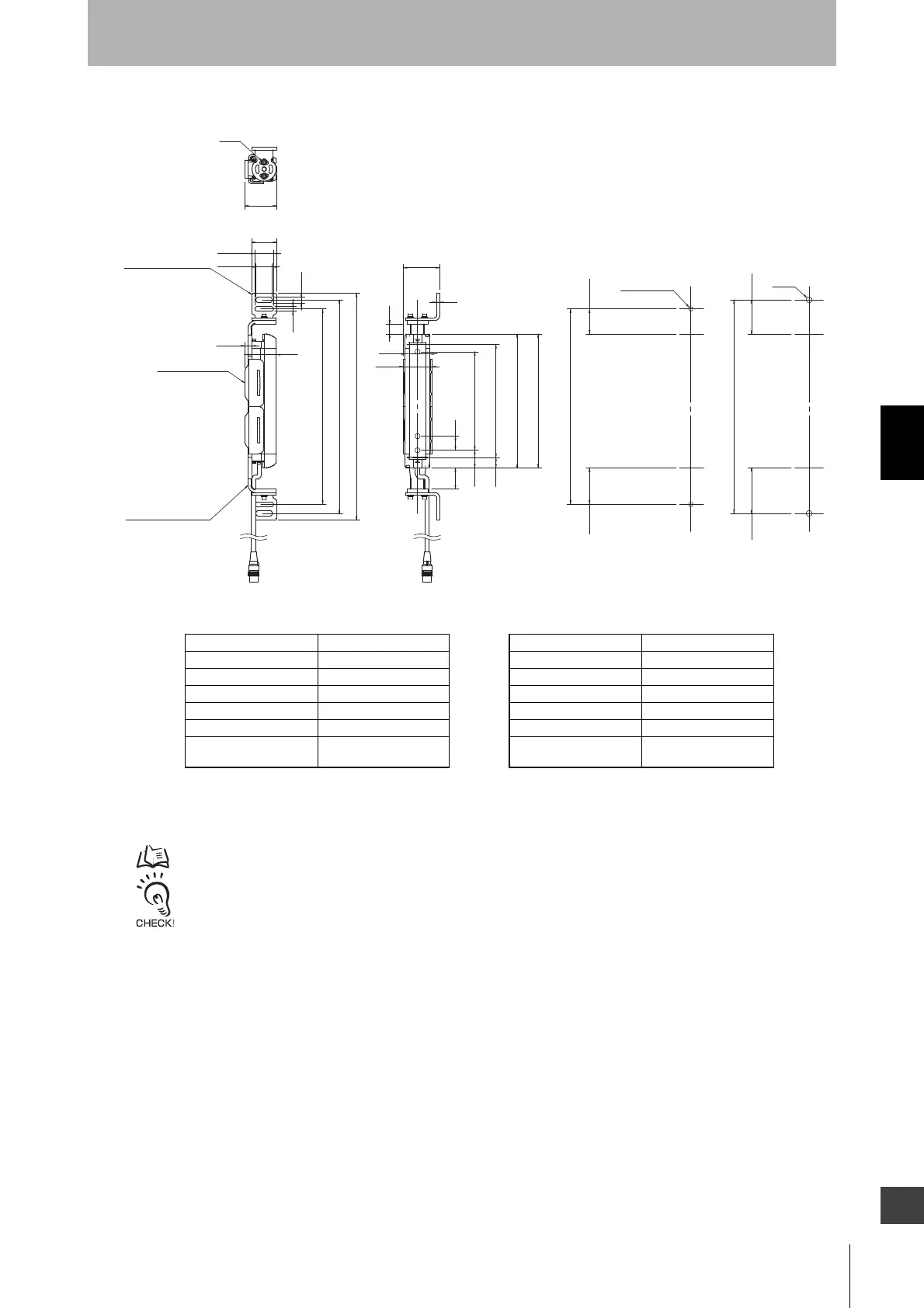

4-4-3-3. Mounting with Top/Bottom Adjustable Brackets (F39-LGTB)
- Use the brackets of specified quantities and locations according to the dimensions. The other brackets than described
above may not meet the specified ratings and performance.
- When you use the sensor in a situation where the sensor is under a load, increase the number of the brackets used.
- The Top/Bottom Adjustable Bracket and Standard Adjustable Bracket allow beam alignment after fixing the bracket to a
wall surface. The angle adjustment range of the Top/Bottom Adjustable Brackets is ±22.5°. The angle adjustment range
of the Standard Adjustable Brackets is ±15°.
2-S3
44.6
23.2
26.5
35
6.5
8.2
G
H
I
35
9.6
2-M8
40.8
4
51.65
190
14
35
30 P 15 25
H
48.5 64.5
51.75 35.75
G
D
Top/Bottom
A
djustable Bracket
(F39-LGTB)
Top/Bottom
Adjustable Bracket
(F39-LGTB)
Backside : 2-S3
2-M5 or M6
C1 (Protective height for 30 mm)
C2 (Protective height for 14 mm)
<Screw for Top/Bottom Adjustable
Bracket: M5 or M6>
<Screw for Top/Bottom
Adjustable Bracket: M8>
F3SG-4RE019030
Dimension C1 190
Dimension D 140
Dimension G 277.5
Dimension H 303
Dimension I 322
Dimension P 20
Number of Top/Bottom
Adjustable Brackets*
2
F3SG-4RE016014
Dimension C2 160
Dimension D 140
Dimension G 277.5
Dimension H 303
Dimension I 322
Dimension P 10
Number of Top/Bottom
Adjustable Brackets*
2
[ Unit : mm ]
* The number of brackets required to mount either one of emitter and receiver.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
