F3SG-R
User’s Manual
Chapter4 Mounting
Wiring/Installation
E
5. Securely tighten the Screw (1) to fix the Top/Bottom Adjustable Bracket to the housing of the F3SG-R.
The recommended torque to tighten the Screw (1) is 3.0 N•m. (Fig. 6)
Tightening screws with a torque that considerably exceeds the recommended torque may cause failure.
<Backside mounting > <Side mounting>

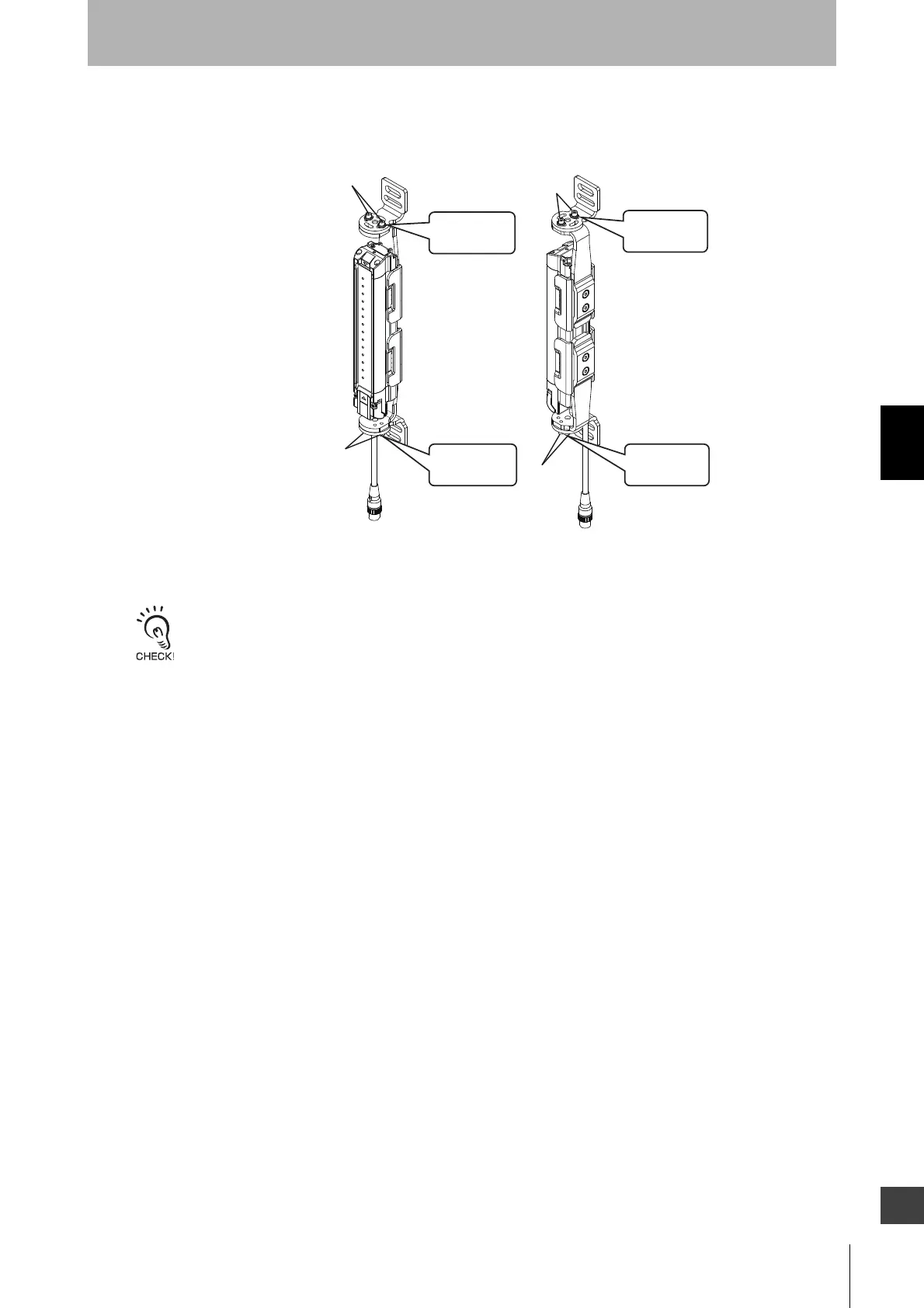

Fig. 6
Securely
tighten these
Securely
tighten these
Securely
tighten these
Securely
tighten these
Screw (1)
Screw (1)
Screw (1)
Screw (1)

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
