Omron F3SG series User Manual

222

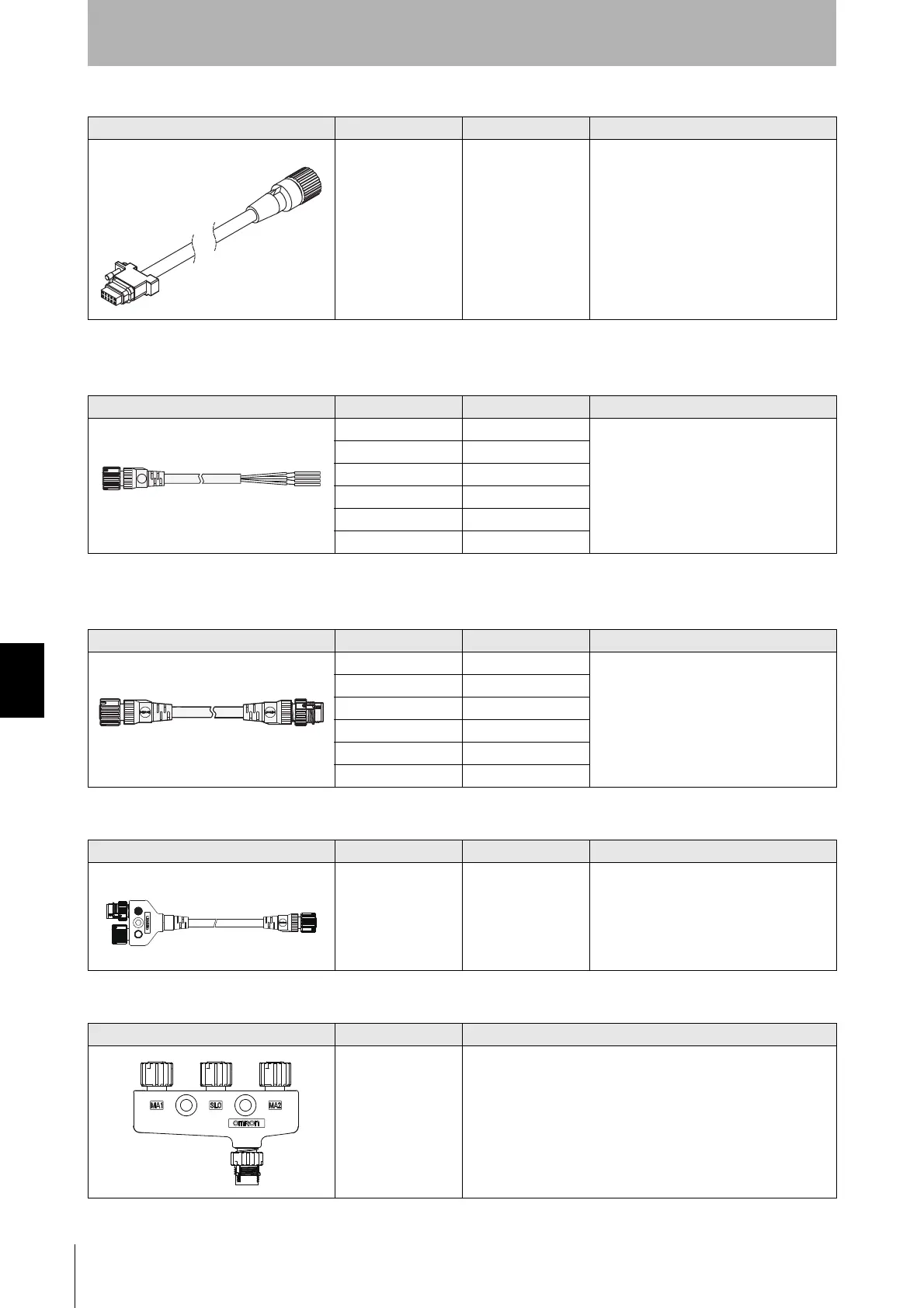

Chapter7 Optional Accessories(Sold Separately)
F3SG-R
User’s Manual
Appendix
Cascading Cable (two cables per set, for emitter and receiver)
Single-Ended Cable (Round Water-resistant Connector: Connector Connected to Cable, Socket on One
Cable End)
Double-Ended Cable (Round Water-resistant Connector: Connectors Connected to Cable, Socket and Plug
on Cable Ends)
Y-Joint Plug/Socket Connector
4-Joint Plug/Socket Connector
Appearance Model Cable length Specifications
F39-JGR2W 0.2 m Emitter cable:
Cap (5-pin), M12 connector (5-pin)
Receiver cable:
Cap (8-pin), M12 connector (8-pin)
Appearance Model Cable length Specifications
XS5F-D421-C80-F 1 m M12 connector (4-pin), 4 wires
XS5F-D421-D80-F 2 m
XS5F-D421-E80-F 3 m
XS5F-D421-G80-F 5 m
XS5F-D421-J80-F 10 m
XS5F-D421-L80-F 20 m
Appearance Model Cable length Specifications
XS5W-D421-C81-F 1 m M12 connector (4-pin) on both ends
XS5W-D421-D81-F 2 m
XS5W-D421-E81-F 3 m
XS5W-D421-G81-F 5 m
XS5W-D421-J81-F 10 m
XS5W-D421-L81-F 20 m
Appearance Model Cable length Remarks
F39-GCNY1
F39-GCNY2
0.5 m M12 connectors.
Used for reduced wiring.
F39-GCNY1: for F3SG-RE*
F39-GCNY2: for F3SG-RA
*When using this connector, the Operating
Range Selection is fixed to Long Mode.
Appearance Model Remarks
F39-GCN4
F39-GCN4-L
F39-GCN4-D
M12 connectors.
Used for reduced wiring for connecting F3SG-RA with F3W-MA.
F39-GCN4: Includes one each of F39-GCN4-L and F39-GCN4-D.
F39-GCN4-L: Used to connect F3SG-RA emitter with F3W-MA
emitter.
F39-GCN4-D: Used to connect F3SG-RA receiver (PNP output)
with F3W-MA receiver.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
