Omron F3SG series User Manual

227
F3SG-R
User’s Manual
Chapter7 Optional Accessories(Sold Separately)
Appendix
E
Control Unit
Control Unit

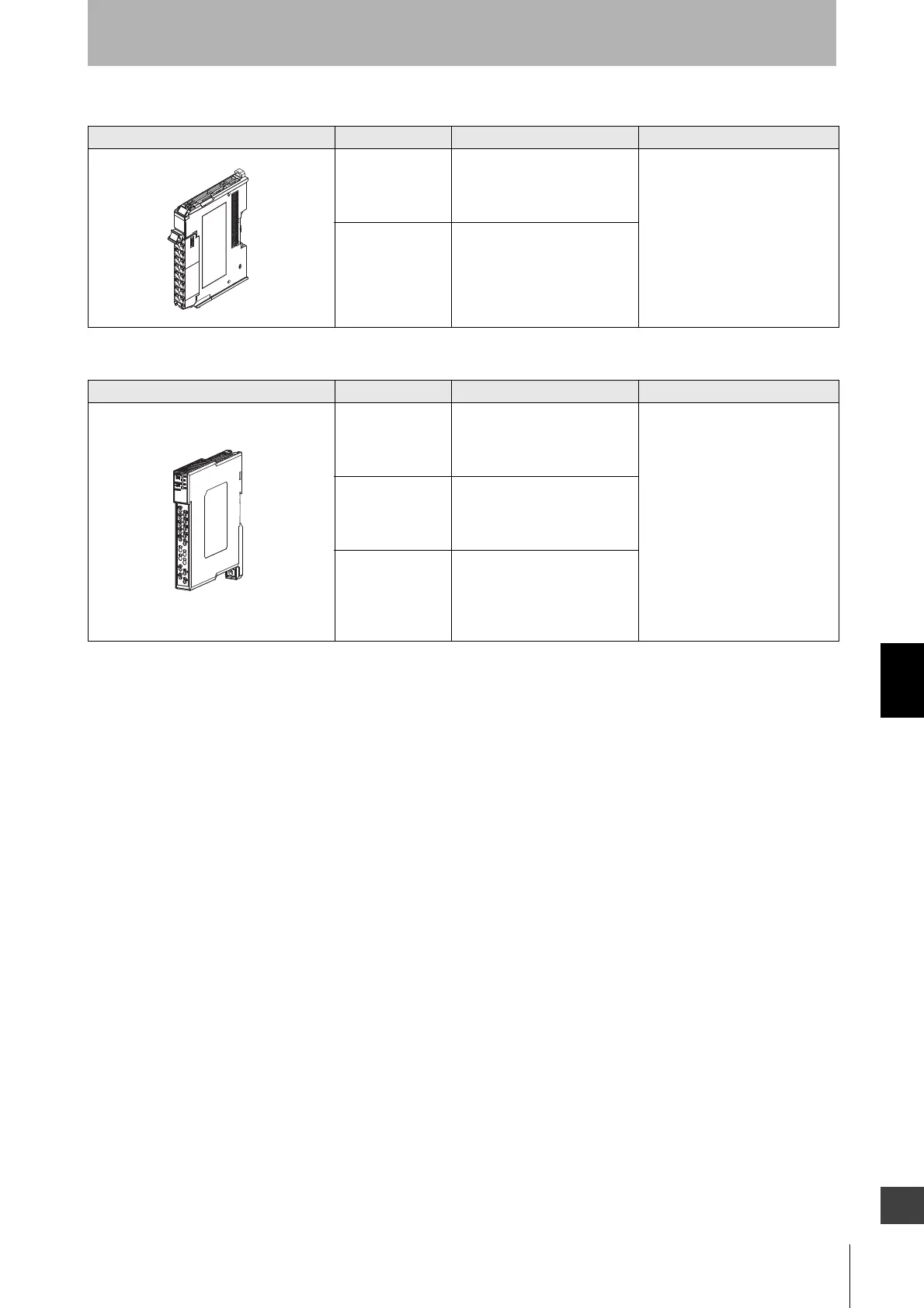

Appearance Model Application Specifications
NX-SIH400 Safety input (solid-state): sink
input (PNP) x 4
Test output (solid-state): source
output (PNP) x 2
• An F39-JGA Single-Ended
Cable is required.
• An F3SG-R with PNP output can
be connected.
NX-SID800 Safety input (solid-state): sink
input (PNP) x 8
Test output (solid-state): source
output (PNP) x 2
Appearance Model Application Specifications
G9SE-201 Safety output (relay): NO
contact x 2 (instantaneous)
Auxiliary output (solid-state):
source output (PNP) x 1
• An F39-JGA Single-Ended
Cable is required.
• An F3SG-R with PNP output can
be connected.
• For G9SE-221-T, 16 patterns
of OFF-delayed output for up to 5
or 30 seconds can be set.
G9SE-401 Safety output (relay): NO
contact x 4 (instantaneous)
Auxiliary output (solid-state):
source output (PNP) x 1
G9SE-221-T Safety output (relay): NO
contact x 2 (instantaneous), NO
contact x 2 (OFF-delayed)
Auxiliary output (solid-state):
source output (PNP) x 1

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
