226
Chapter7 Optional Accessories(Sold Separately)
F3SG-R
User’s Manual
Appendix
Control Unit
Control Unit
Control Unit

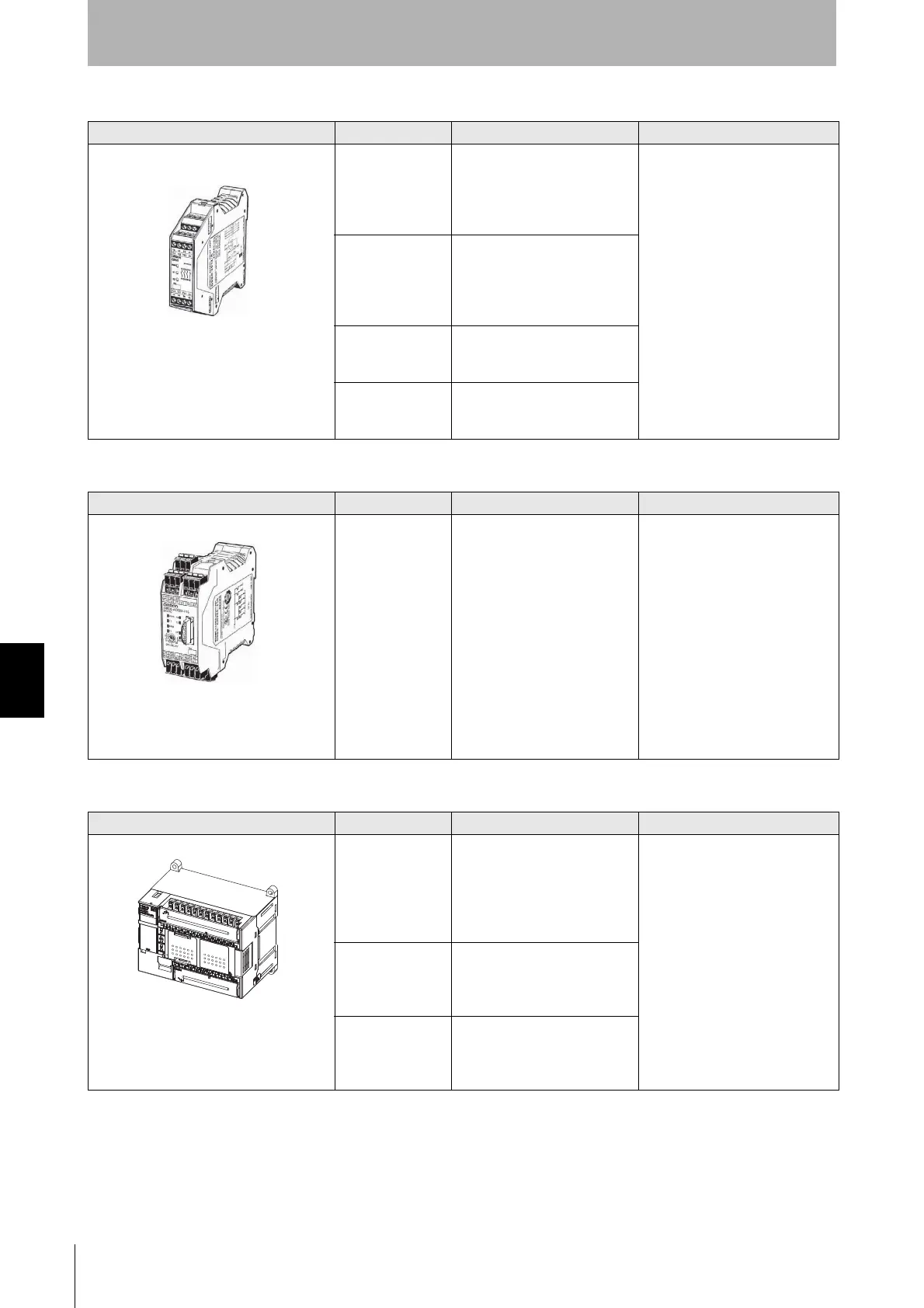

Appearance Model Output Remarks
G9SB-301-B Safety output (relay): NO
contact x 3
Auxiliary output (relay): NC
contact x 1
Auto reset
An F39-JGA Single-Ended
Cable is required.
An F3SG-R with PNP output can
be connected.
Thickness of a type of three N.O.
and one N.C. contacts is 22.5
mm.
Thickness of a type of two N.O.
contacts is 17.5 mm.
G9SB-301-D Safety output (relay): NO
contact x 3
Auxiliary output (relay): NC
contact x 1
Manual reset
G9SB-200-B Safety output (relay): NO
contact x 2
Auto reset
G9SB-200-D Safety output (relay): NO
contact x 2
Manual reset
Appearance Model Output Remarks
G9SX-AD322-T15 Safety output (solid-state):
source output (PNP) x 3
(instantaneous), source output
(PNP) x 2 (OFF-delayed)
Auxiliary output (solid-state):
source output (PNP) x 2
An F39-JGA Single-Ended
Cable is required.
An F3SG-R with PNP output can
be connected.
16 patterns of OFF-delayed
output for up to 15 seconds can
be set.
The OFF-delayed output can be
used as instantaneous output by
setting it to 0 second.
Can be configured for partial
control and total control.
Can be extended to connect a
relay unit.
Appearance Model Output Remarks
G9SP-N10S Safety output (solid-state):
source output (PNP) x 4
Test output (solid-state): source
output (PNP) x 4
Standard output (solid-state):
source output (PNP) x4
An F39-JGA Single-Ended
Cable is required.
An F3SG-R with PNP output can
be connected.
G9SP-N10D Safety output (solid-state):
source output (PNP) x 16
Test output (solid-state): source
output (PNP) x 6
G9SP-N20S Safety output (solid-state):
source output (PNP) x 8
Test output (solid-state): source
output (PNP) x 6
