Omron F3SG series User Manual

225
F3SG-R
User’s Manual

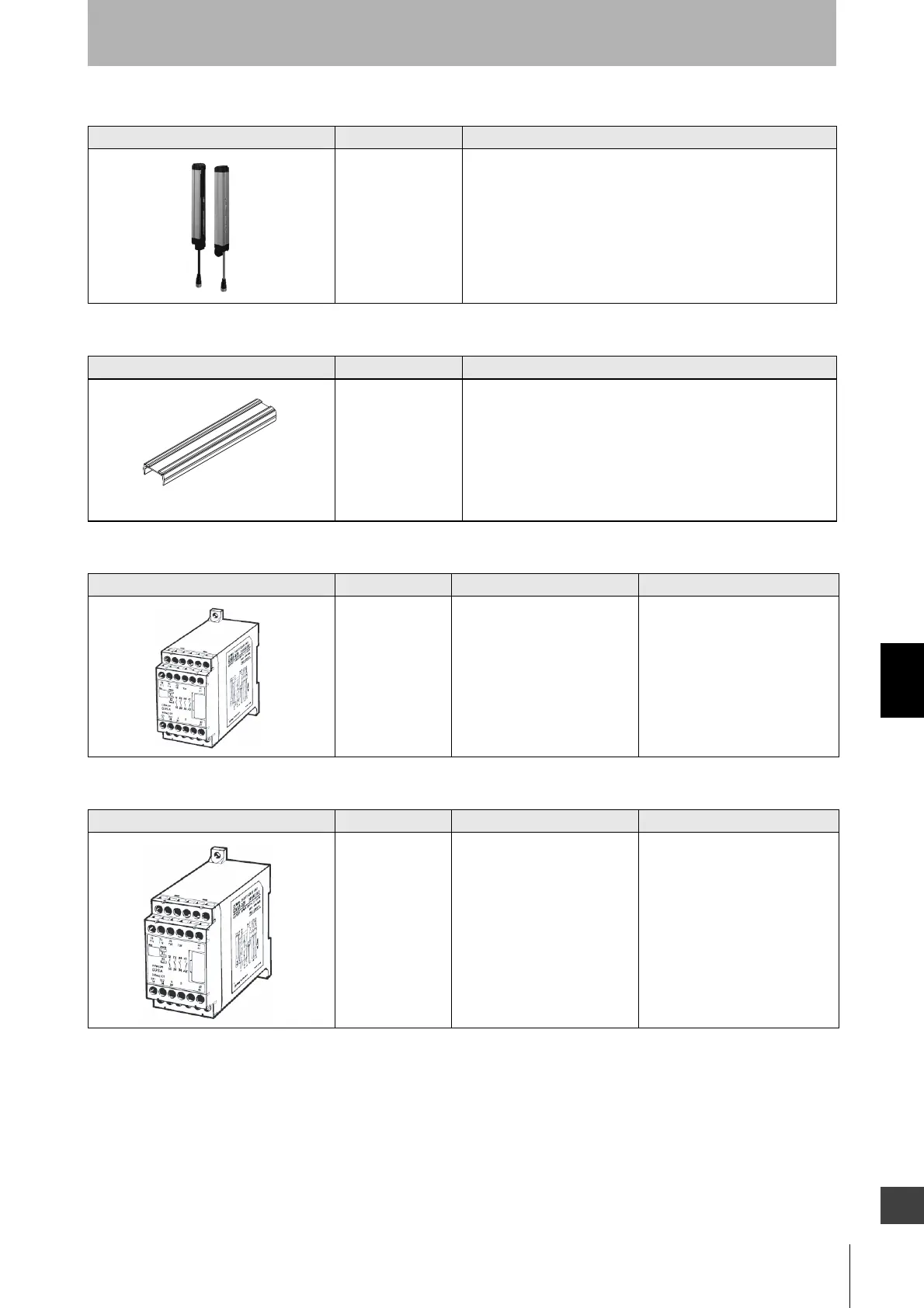

Chapter7 Optional Accessories(Sold Separately)
Appendix
E
Smart Muting Actuator
Spatter Protection Cover (two pieces per set, common for emitter/receiver)
Control Unit
Control Unit
Appearance Model Remarks
F3W-MA0100P
F3W-MA0300P
Applicable to PNP-output devices. Refer to Smart Muting Actuator
F3W-MA Series User's Manual for details.
Appearance Model Remarks
F39-HGA
(for F3SG-RA)
F39-HGB
(for F3SG-RE)
For the F3SG-R of the protective height of 2,000 mm or longer, use
two Spatter Protection Covers of different lengths.
Please note the following:
• The operating range of the F3SG-R attached with the Spatter
Protection Cover is 10% shorter than the rating.
• The Spatter Protection Cover extends over the DIP Switch cover
of the F3SG-RA. Be sure to use the Spatter Protection Cover
only after all required settings are made to the DIP Switch.
Appearance Model Output Remarks
G9SA-301 Safety output (relay): NO
contact x 3
Auxiliary output (relay): NC
contact x 1
• An F39-JGA Single-Ended
Cable is required.
• An F3SG-R with PNP output can
be connected.
• A type of 5 N.O. and 1 N.C.
contacts is also available.
Appearance Model Output Remarks
G9SA-301-P Safety output (relay): NO
contact x 3
Auxiliary output (relay): NC
contact x 1
• An XS5F-D421-80-F Round
Water-resistant Connector is
required.
• An NPN type of F3SG-R can be
connected.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
