Omron F3SG series User Manual

224

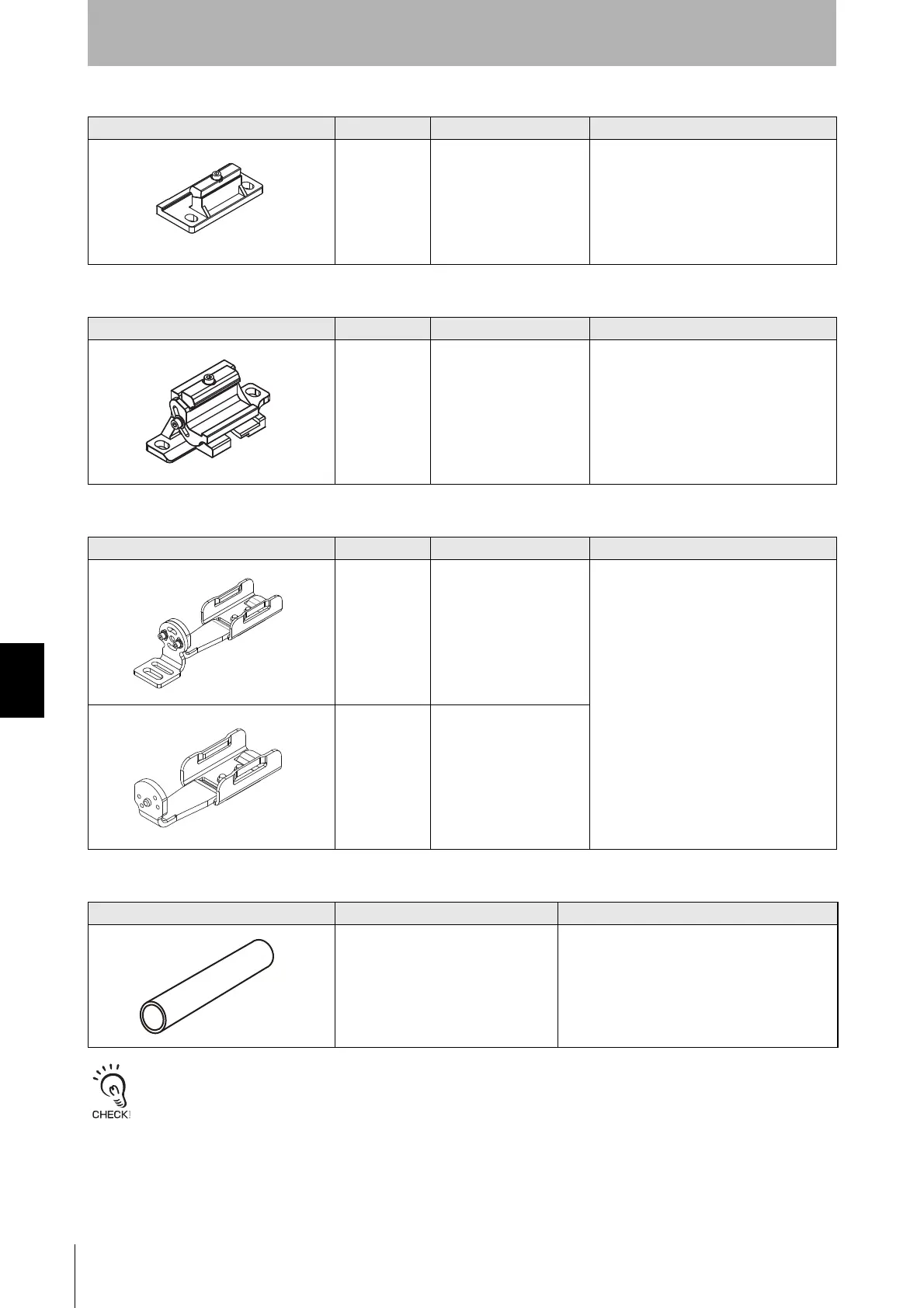

Chapter7 Optional Accessories(Sold Separately)
F3SG-R
User’s Manual
Appendix
Standard Fixed Bracket
Standard Adjustable Bracket
Top/Bottom Adjustable Bracket
Test Rod
Appearance Model Application Remarks
F39-LGF Bracket to mount the
F3SG-R.
Side mounting and
backside mounting
possible.
Beam alignment after
mounting not possible.
2 brackets per set.
(Included in the F3SG-R product package.)
Appearance Model Application Remarks
F39-LGA Bracket to mount the
F3SG-R.
Beam alignment after
mounting possible.
Side mounting and
backside mounting
possible.
2 brackets per set.
Appearance Model Application Remarks
F39-LGTB Bracket to mount the
F3SG-R. Use this bracket
at the top and bottom
positions of the F3SGR.
Beam alignment after
mounting possible. Side
mounting and backside
mounting possible.
4 brackets per set.
This bracket is not useable together with
the Standard Fixed Bracket. When it is
necessary to use it with another bracket,
only the combination with the Standard
Adjustable Bracket is possible.
Refer to 4-4-3-3. Mounting with Top/Bottom
Adjustable Brackets (F39-LGTB) for more
information on parts names of this bracket.
F39-LGTB-1 F39-LGTB-1 does not
come with the parts to
mount to a wall surface
(Top/Bottom Bracket (3)
and Screw (1). Please
prepare these parts
according to your device.
Appearance Model Diameter
F39-TRD14
F39-TRD30
14 mm dia.
30 mm dia.
To check operation before use, purchase and use the test rod.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
