Chapter2 Muting
F3SG-R
User’s Manual
System Operation and Functions

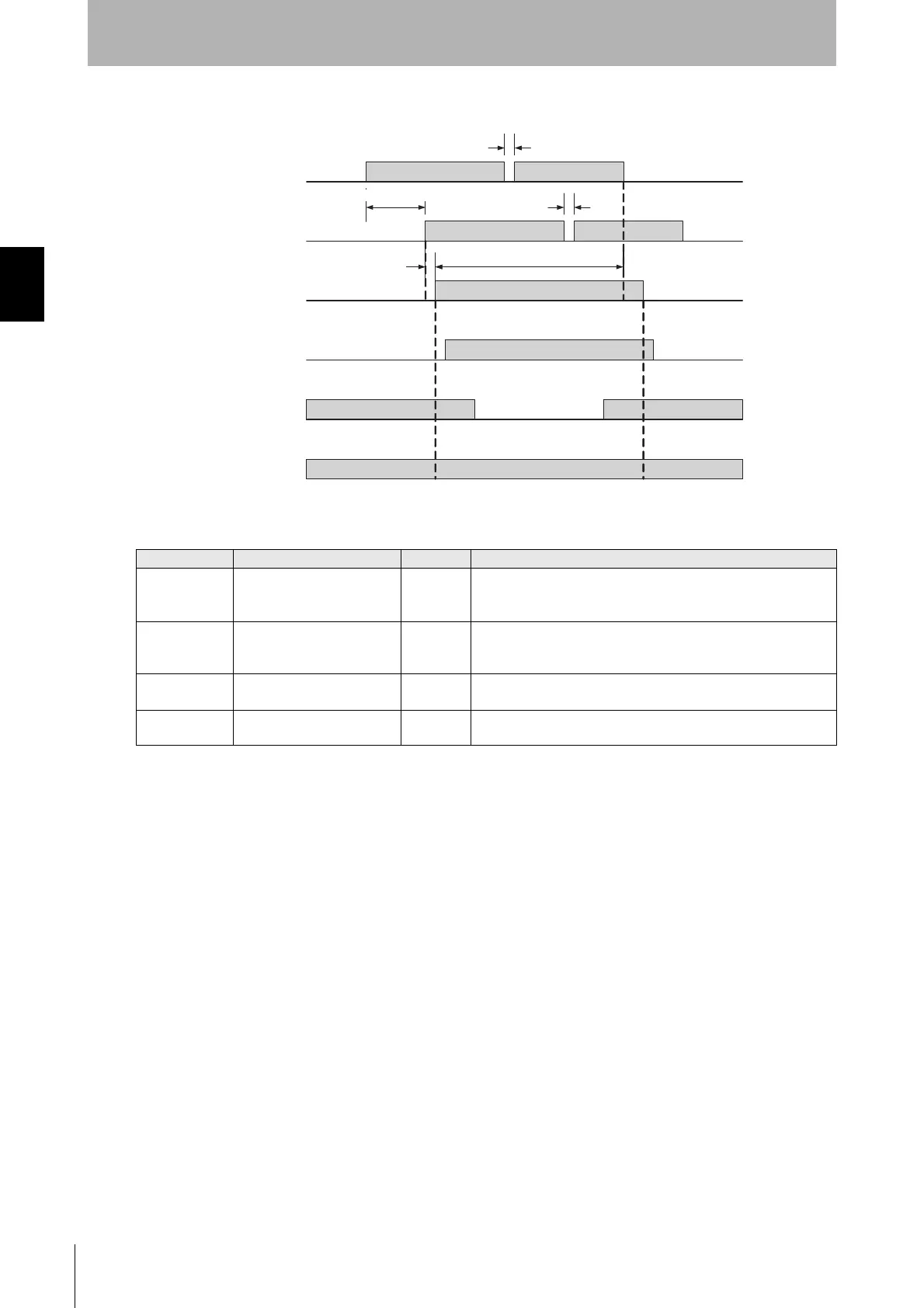

 Timing chart
 Default settings
Variable Variable name Value Description
T
1min Muting input time limit value
(minimum)
0.1 s Minimum time difference between muting inputs A and B.
If the time difference between muting inputs A and B is smaller
than this value, a muting sequence error occurs.
T
1max Muting input time limit value
(maximum)
4 s Maximum time difference between muting inputs A and B.
If the time difference between muting inputs A and B is larger
than this value, a muting sequence error occurs.
T
2 Muting time limit 60 s The duration time of the Muting function. The Muting state is
cancelled if it continues for longer than this time limit.
T
3 Maximum allowable muting
signal interruption
0.1 s Maximum duration of a signal interruption allowed in muting
inputs A and B.
Beam state
Muting input A
ON
OFF
Muting input B
Muting state
OSSD
ON
OFF
Unblocked
Blocked
ON
OFF
Blinking
OFF
Auxiliary output
Enabled
Disabled
T2 max.
Blinking at 0.5 s (1 Hz)
T3 max.
T3 max.
T1min to T1max
80 ms max.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
