Useful Functions for Operation
109
3
Performing Test Measurement/Starting Operation
Vision System FH/FZ5 Series
User’s Manual (Z340)

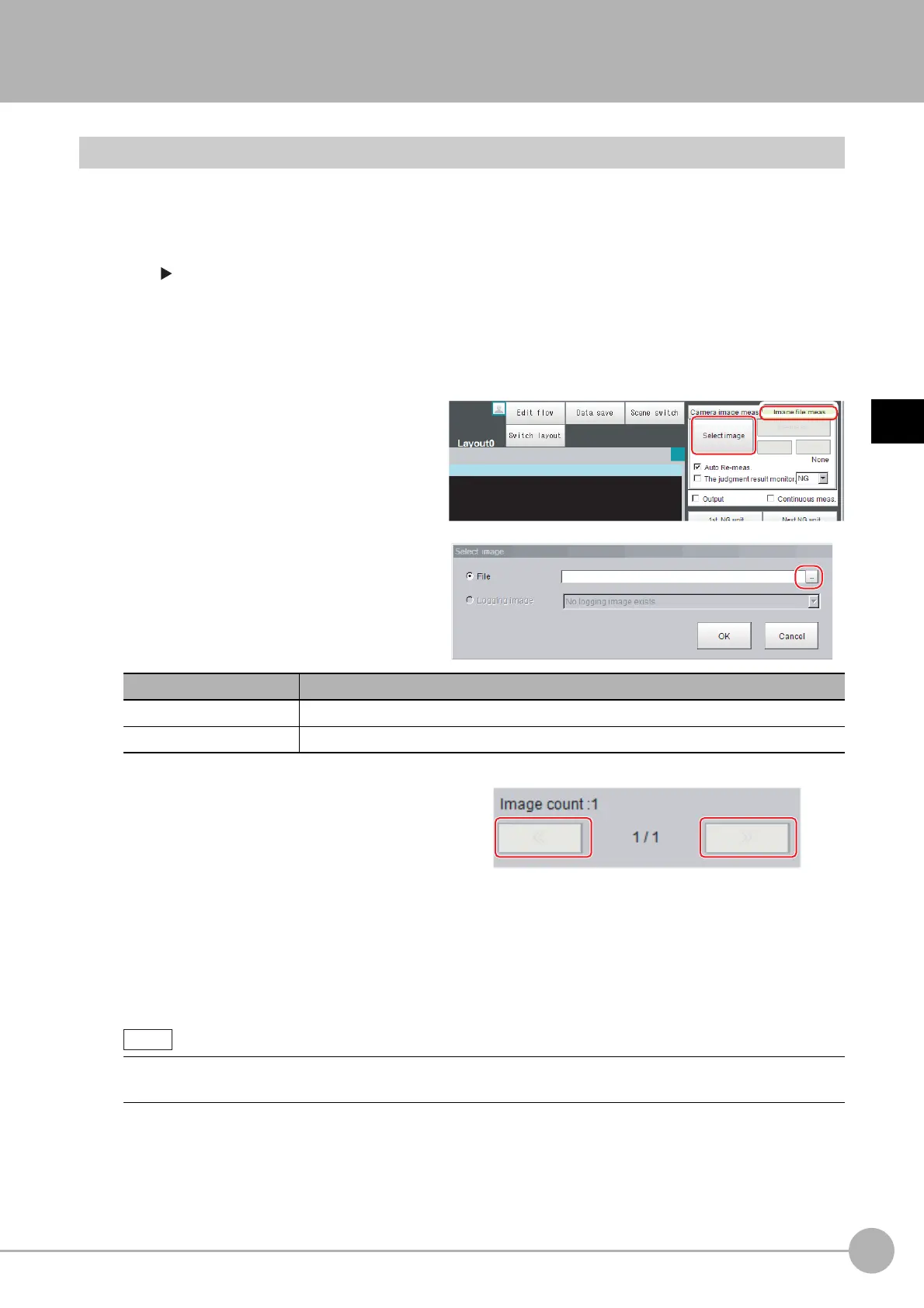

Useful Functions for Operation
Remeasuring Saved Images
Images from when measurements are performed, including test measurements, can be saved. Remeasurement
can be performed with saved images after conditions are adjusted in order to check whether the adjustment is
appropriate.
The logging function is used to save images.
Reference: Logging Measurement Values and Measurement Images (p.113)
Images that can be remeasured include images saved in the Controller and images saved in external memory.
1 Click the upper left corner of the Image Display Pane, set the [Image mode] to [Freeze], and
then click the [OK] button.
2 In the Main Window (layout 0), click the [Image file meas.] button in the Measurement Pane.
3 Click the [Select image] button.
The [Select image] dialog box is displayed.
4 Click the [...] button and specify the file
to display.
5 The selected image is displayed at the
lower left of the File Explorer Pane.
When there are multiple camera images in a
file, as for a logging image when multiple
cameras are connected, use the [<<] and [>>]
buttons to switch images.
6 Click [OK].
The path and file name of the image are displayed under [Select image].
7 In the Main Window (layout 0), click the [Re-meas.] button under [Image file meas.] .
Measurement of the selected image is performed.
Parameter Description
File Specify images saved in the external memory or in the RAM disk.
Logging image Specify images that are logged in the Controller memory.
About Automatic Remeasurement
Displayed images can be automatically remeasured by selecting [Auto Re-meas.].
Note
To Next Page
