Setting Figures
848
Vision System FH/FZ5 Series
User’s Manual (Z340)
Setting Figures
This section describes the setting method for objects (figures and text) when registering models or specifying
measurement regions.
The type and number of objects varies depending on different setting options.

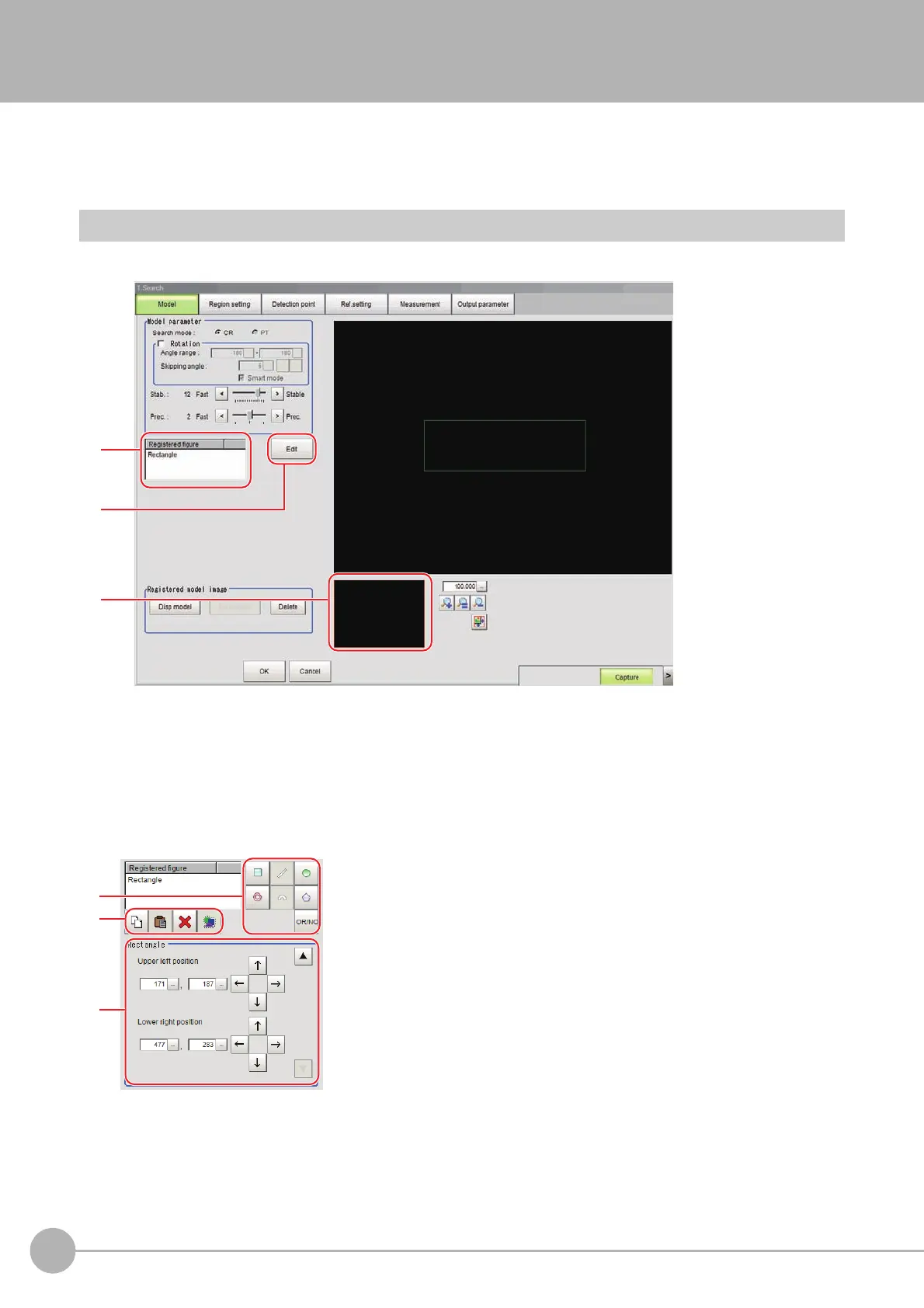

Layout of Figure Setting Area
Window for registering figures when registering or setting areas or models as measurement objects.
a. Figures
Displays a list of names of objects that have been set. The figure at the bottom of the list is the nearest object
in the foreground. The higher the sequence position of the object, the further back in the background it is.
When objects are drawn overlapping, the settings for the object set last are valid.
b. [Edit]
Used to edit a figure. The following figure editing tool is displayed.
c. Zoom Browser Area
Magnifies the Image Display area by the selected magnification factor.
3
2
1
1. Drawing tool buttons
Sets up objects, such as figures and text. The number and type
of objects available is different depending on the applicable
setting (ex. "Result display", "Model", "Region setting").
2. Object editing buttons
Buttons for editing objects
3. Details
Shows the details of the selected figure. Specify the object
coordinates or radius. Tapping [S] or [T] will display the items
currently not displayed.
To Next Page
