Adjustment Windows and Run Windows
68
Vision System FH/FZ5 Series
User’s Manual (Z340)
Adjustment Windows and Run Windows
After test measurement and remeasurement are performed on the Main Window (layout 0), check the
measurement results. If there are problems, adjust the processing item setting values of the processing units.
When the measurement results are stable, change to the Main Window (layout 1) and perform measurements.
This section describes the adjustment windows and run windows.

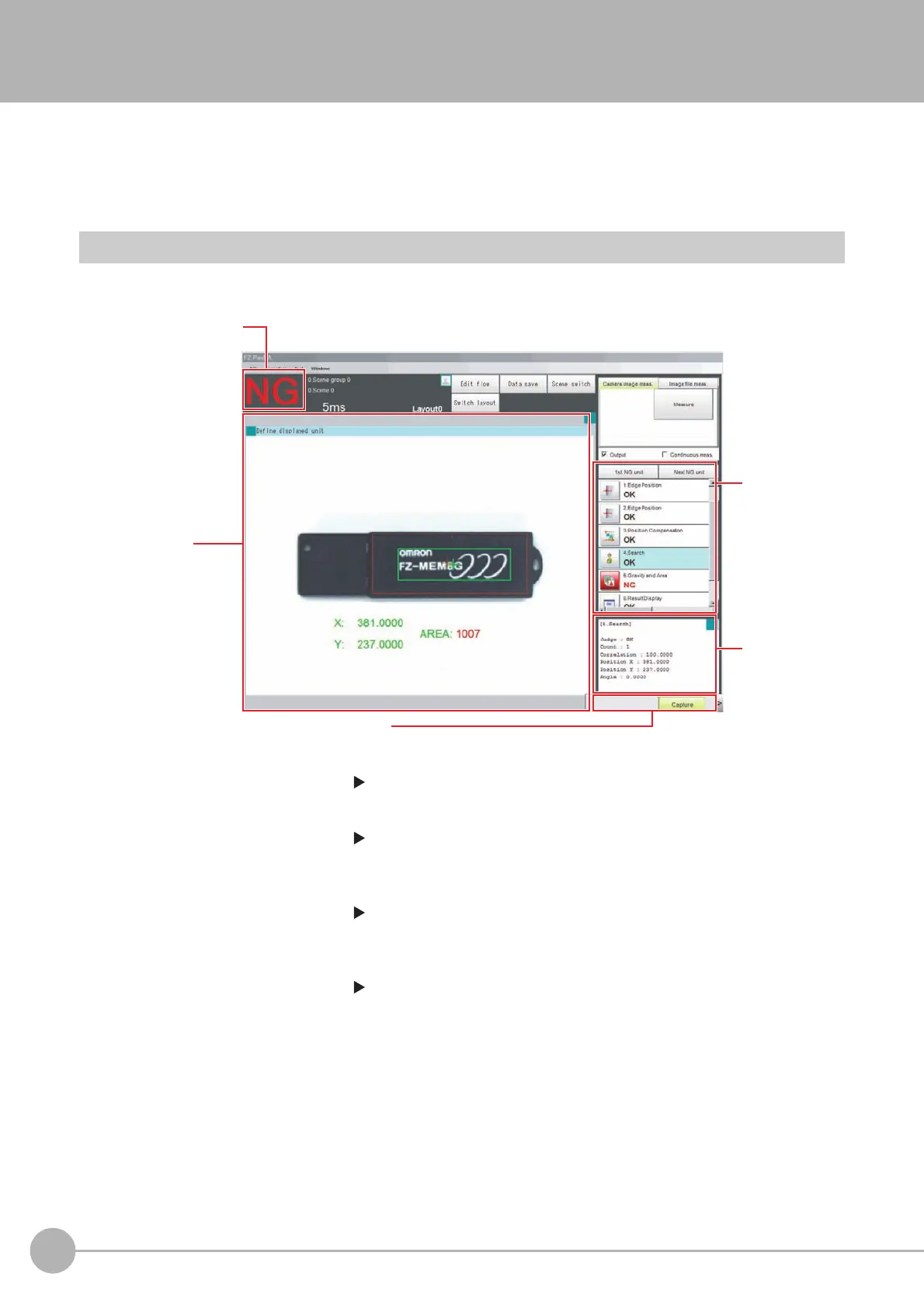

Main Window (Layout 0): Adjustment Window (Default)
Layout 0 is set as an adjustment window by default. (This can be changed in Layout Modification Mode.)
The judgement
result and
measurement time
for the entire scene
are displayed.
Units with NG
results are
displayed in
red.
Measurement
results are
displayed in
text format.
You can overlay
the measurement
results on the
Camera image.
Measurement Manager Bar
This is displayed regardless of the layer that is displayed.
• [Capture]: Saves the contents that is displayed on the monitor as an image.
Reference: Capturing Screen Images (p.123)
• [LCD Off] (Displayed only with LCD-integrated Controllers.)
Turns OFF power to the LCD monitor.
Reference: Turning OFF the LCD (p.44)
• [Line] (This is displayed only when the operation mode is set to Multi-line
Random-trigger Mode.)
This changes the line.
Reference: Multi-line Random-trigger Mode (p.273)
• [Switch Screen] (This is displayed only when the operation mode is set to Non-
stop Adjustment Mode.)
This changes to the Non-stop Adjustment Mode Window.
Reference: Non-stop Adjustment Mode (p.279)
