Description of the Setting Screen of the "Unit Macro" Processing Item and How to Configure Settings
The properties screen of the "Unit Macro" processing item is the same as the program editing screen. For details
on the setting screen, refer to Program Editing Screen.
Reference: XComponents of the Program Editing Screen (p.181)
Reference Variable Settings (Unit Macro)
Set up the reference variables used for function.

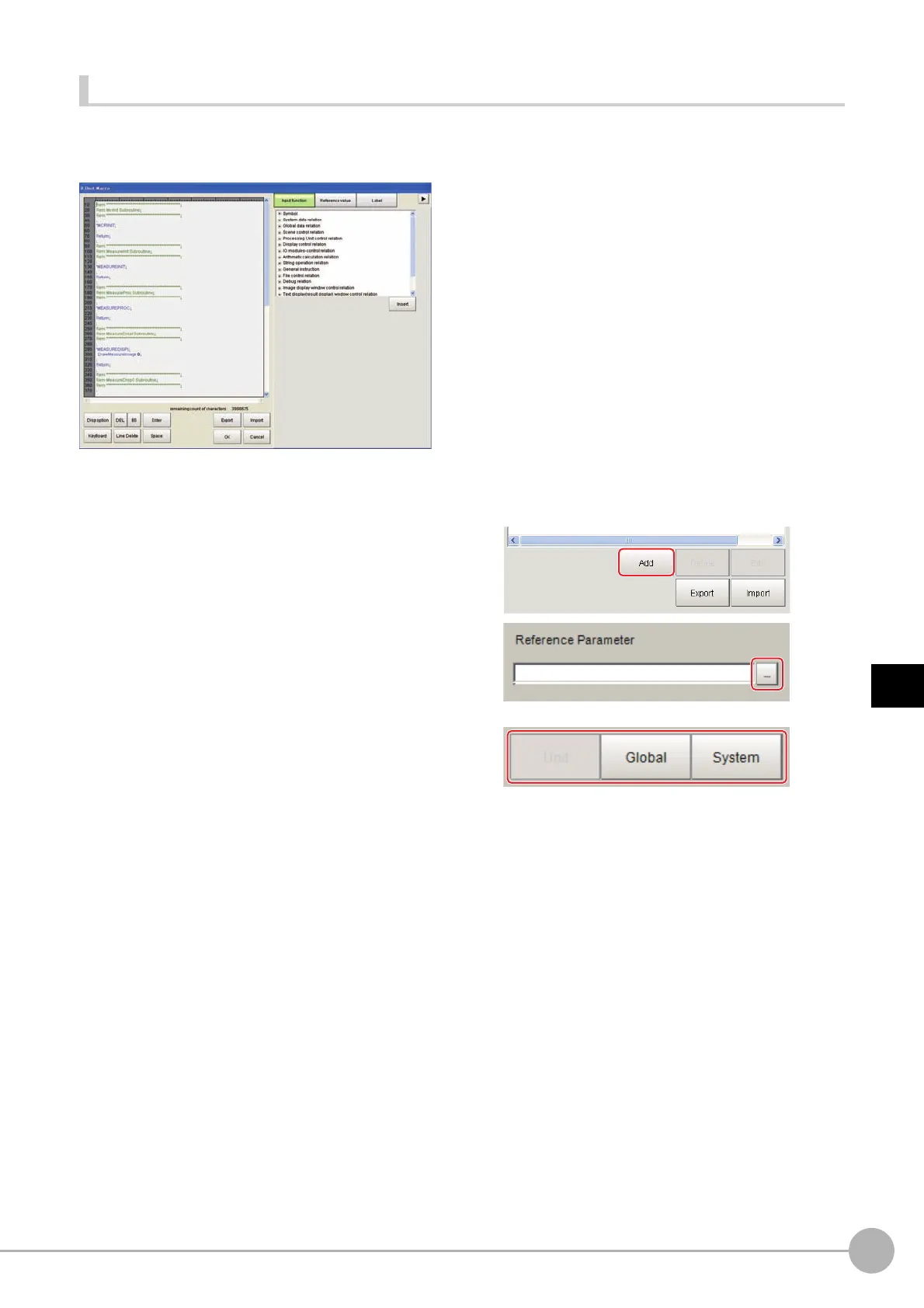

1 Click [Add] in the reference variable list
on the macro setting screen.
A reference variable window is displayed.
2 Click [...] to set the variable name.
The variable name must consist of
alphanumeric characters beginning with a
capital letter.
3 Set the variable to be referenced.
To Next Page
