Updating the Reference Position
137
4
Using Tools
Vision System FH/FZ5 Series
User’s Manual (Z340)
Updating the Reference Position
This section describes the use of a table to set or change the reference position for more than one processing
unit that you specify in the measurement flow.

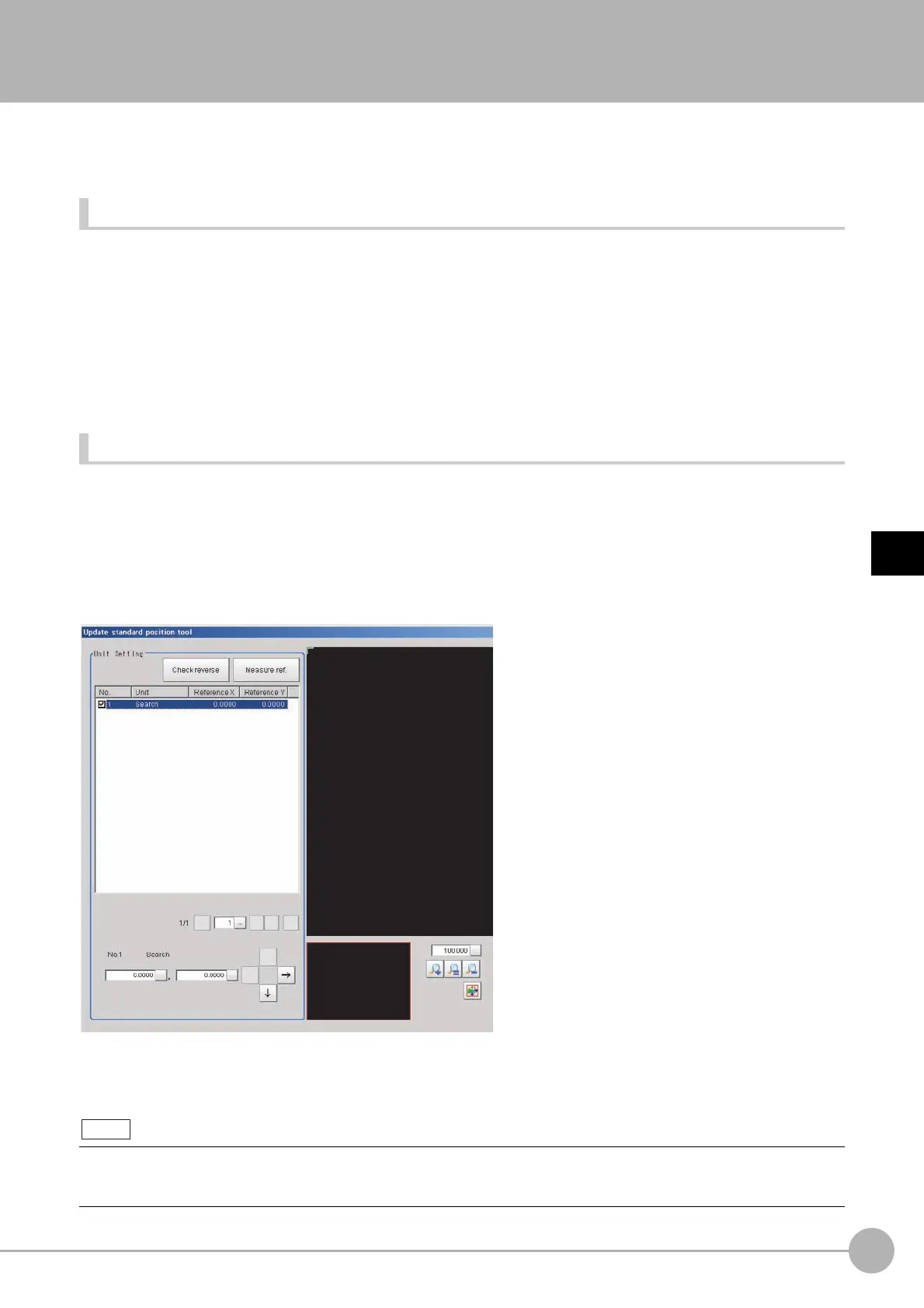

To open the Update Standard Position Tool, select [Update standard position tool] from the [Tool] menu.
Items That Can Be Updated with the Update Standard Position Tool
You can specify the following processing items.
Operating Procedure for the Update Standard Position Tool
You can update the reference position for measurement items in the flow without the need to open the settings
dialog box for each item.
For example, you can easily update the reference position that is updated frequently in an alignment application.
To update the reference position, display the image to use as the reference in advance.
When you click the [Measure ref.] button, the Controller measures the reference for all units that are selected in
the [Unit Setting] list and updates the reference position.
If you click the reference position in the window, or enter the coordinates as a numeric value, the reference
positions for the selected units in the [Unit Setting] list are updated with this value.
To Cancel Updating
Click the [Cancel] button. You can return the reference positions to the values that were in effect before you
opened this tool.
•Search
• Sensitive Search
• Shape Search II
• Shape Search III
• EC Circle Search
•ECM Search
•Ec Corner
• Ec Cross
• Edge Position
• Scan Edge Position
• Circular Scan Edge Position
• Intersection
• Gravity and Area
• Labeling
Most of the measurement items automatically update their reference positions when the model or measurement area is changed.
If you need to change the reference position after it is updated, place the workpiece in the desired position, and then update the
reference positions for all measurement units that you wish to change in the measurement flow.
