Remotely Operating the Controller (Remote Operation)
161
4
Using Tools
Vision System FH/FZ5 Series
User’s Manual (Z340)
How to Start

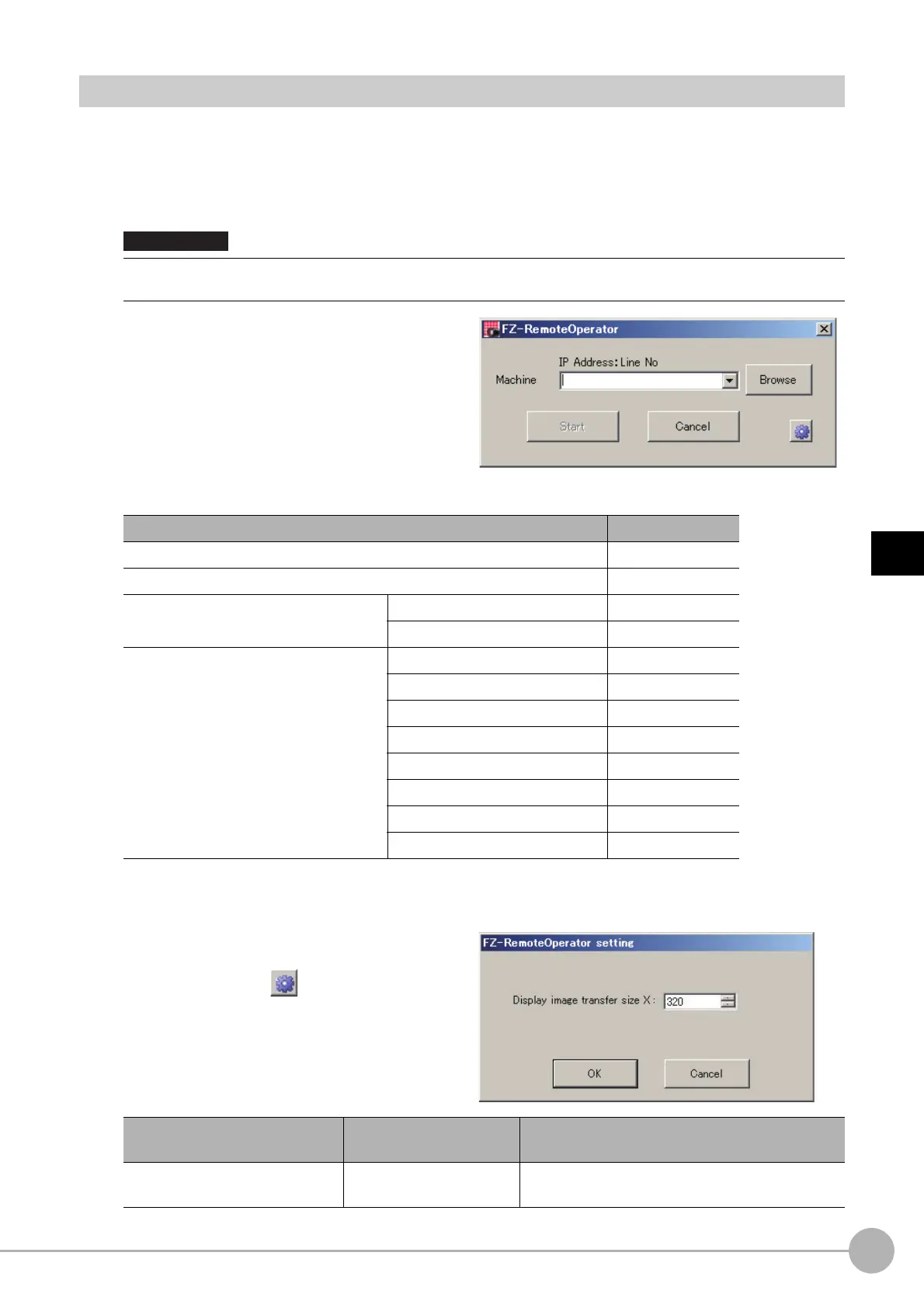

1 From the Start button located in the lower left area of the window of the remote operation PC,
select [Start] − [All Programs] − [OMRON] − [FZ_FH Simulator] and then select and launch
[FZ_FH Remote Operation Tool].
Note that a window that can be measured must be displayed on the Sensor Controller.
2 In the dialog box displayed by [FH-
RemoteOperator], select or directly enter
the IP address and the "Line No" of the
Controller to be connected. Press [Browse]
to find the IP address and the line number
of the Controller that can be connected.
* The "Line No" selected here is one of the following based on the system's operation mode.
The Sensor Controller cannot be connected if a line number other than above is specified.
*1: The FZ5 Sensor Controller always has two lines (lines 0 and 1), and the FH Sensor Controller allows you to select as
many as eight lines. Set the line numbers based on the number of lines that are set for the Sensor Controller.
3 As necessary, change the size of the
image to transfer for the remote
operation. Select ( ) to set.
Do not connect or disconnect [FZ_FH Remote Operation Tool] when a measurement is being performed or
the system is running.
Operation mode Setting
High-speed logging mode Line No = 0
Parallel-operation high-speed mode Line No = 0
Non-stop adjustment
Measurement window Line No = 0
Non-stop adjustment window Line No = 1
Multi-line random trigger
*1
Line 0 side Line No = 0
Line 1 side Line No = 1
Line 2 side Line No = 2
Line 3 side Line No = 3
Line 4 side Line No = 4
Line 5 side Line No = 5
Line 6 side Line No = 6
Line 7 side Line No = 7
Description
Set value
[Factory default]
Description
Display image transfer size
(Size of the image to transfer)
4 to 640
[320]
This sets the size of the image to display
on the remote operation window.
IMPORTANT
To Next Page
