Clearing Saved Images
Use the following procedure to clear all of the images that are currently logged in the Controller.
1 In the Main Window (layout 0), select [Clear logging image] from the [Function] menu.
A confirmation dialog box is displayed.
2 Click [OK].
Capturing Screen Images
The contents displayed in the run window can be captured. Saved images can be loaded into the computer and
pasted into documents.
Set the destination for captured images.
Use the following procedure to set the save destination for the image captured with the screen capture function.
1 In the Main Window, select [System settings] − [Other] − [Screen capture setting] from the
[Tool] menu.
The [Screen capture] settings dialog box is displayed.

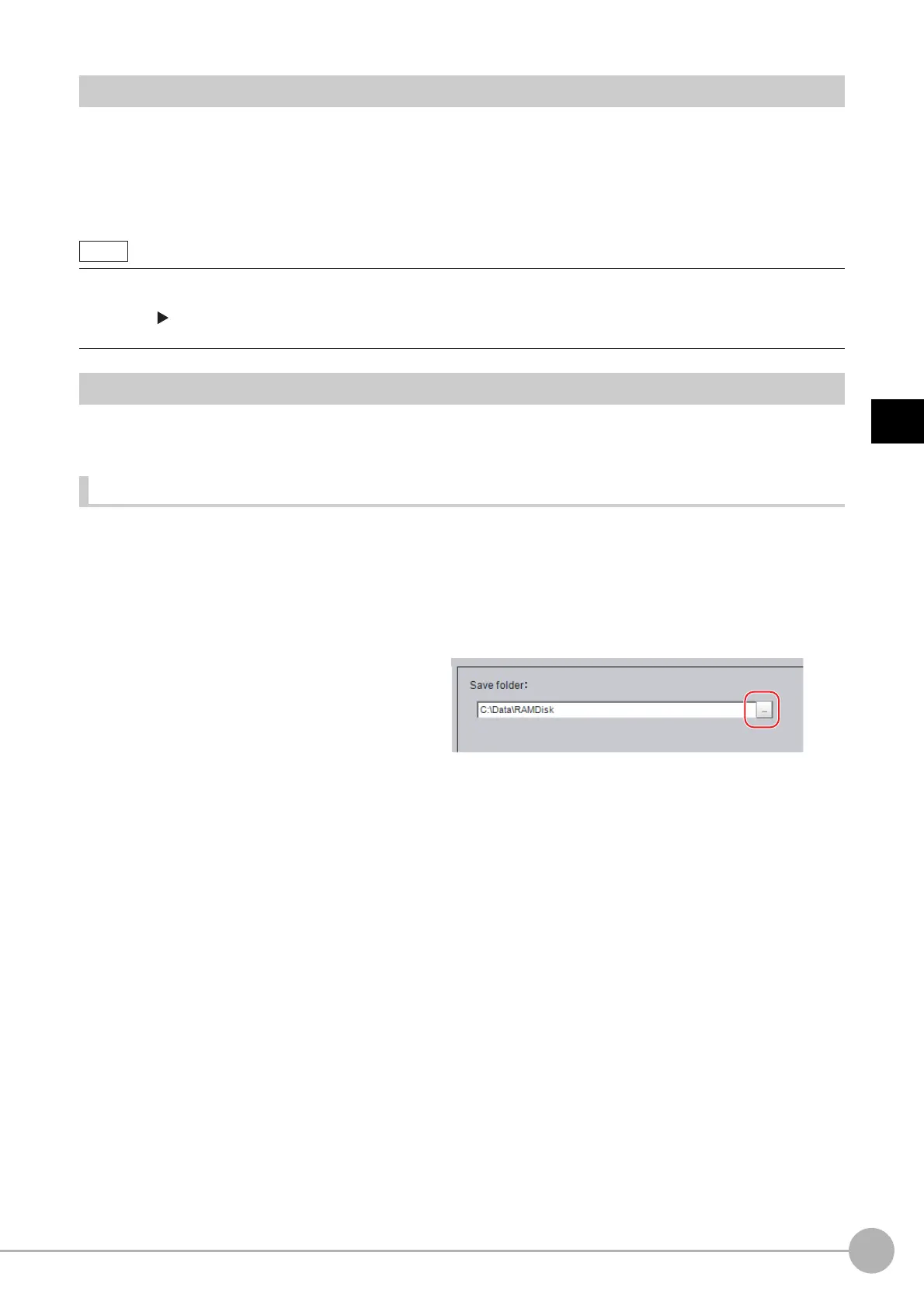

2 Specify the save destination for
captured images.
3 Click [Apply].
If you want to keep the logged images as files, save the logged images to the external memory by clicking [Function] −
[Save to file] − [Logging image] before clearing them.
Reference: Saving Logged Images in the Controller Memory (RAM) to a RAM Disk or an External Memory Device
(p.259)
