Useful Functions for Operation
124
Vision System FH/FZ5 Series
User’s Manual (Z340)

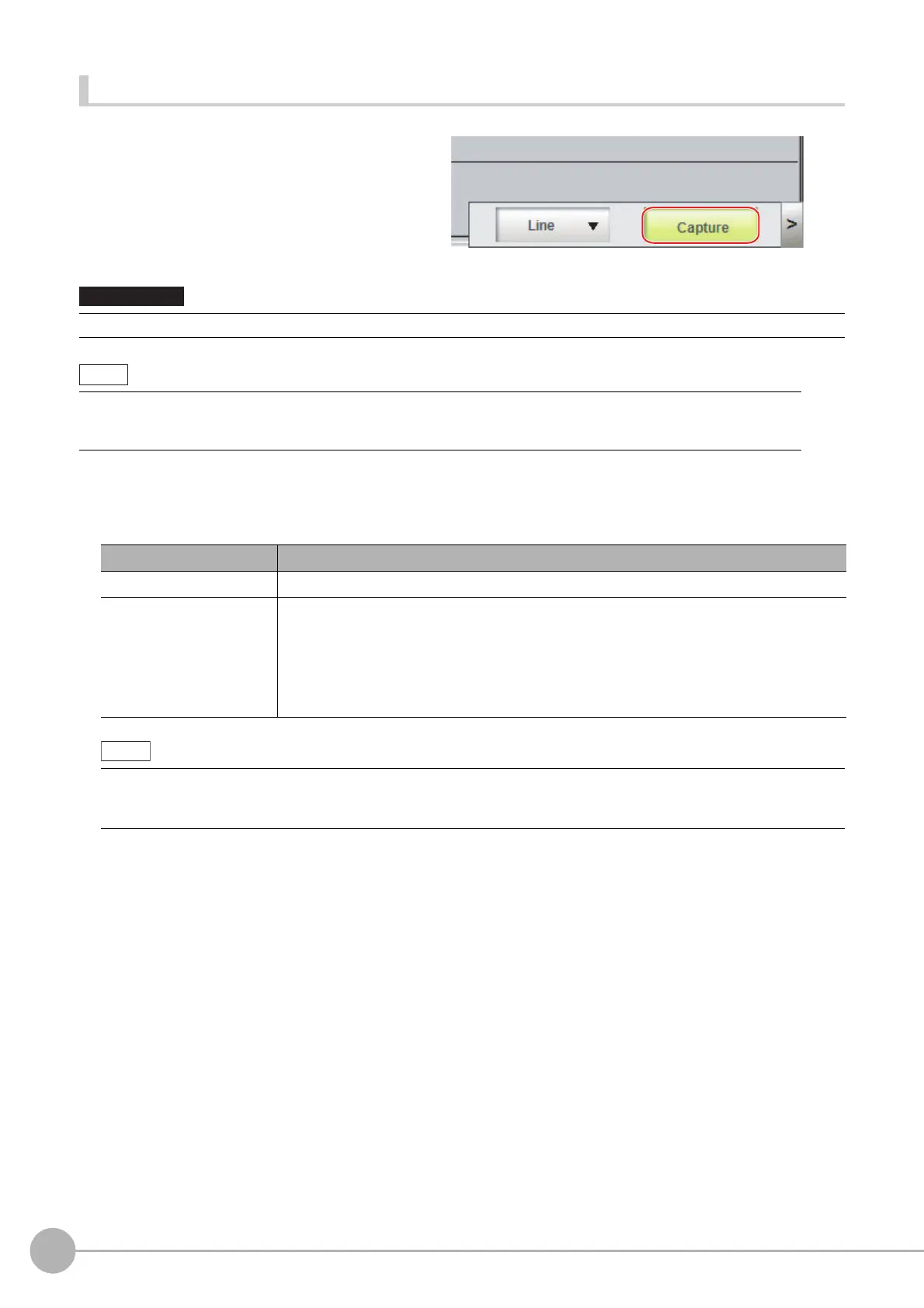

Saving Captured Images
1 Click the [Capture] button that is
displayed on the Measurement Manager
Bar that is located in the bottom right
corner.
Captured Image Files
This section explains the format and file names for captured images.
The capture takes a few seconds and measurement cannot be performed at this time.
• An alternative operation is to select [Screen capture] from the [Function] menu.
• I you use the [Capture] button that is located in the bottom right corner to capture the screen image in Multi-line
Random-trigger Mode, the image is always saved to the destination that is set for line 0.
Item Description
File format The file format is BMP.
File name
The file name is the date and time at which the capture was performed.
Year (4 digits) -Month- Date_ Hour- Minute- Second- Millisecond
Example:
The file name for a capture date and time of 3/10/2007, 11:25:30.500:
The following cannot be captured.
• The dialog box to select a file or a folder
• Confirmation message when LCD is turned OFF
To Next Page
