Editing Scenes
62
Vision System FH/FZ5 Series
User’s Manual (Z340)
Editing Scenes

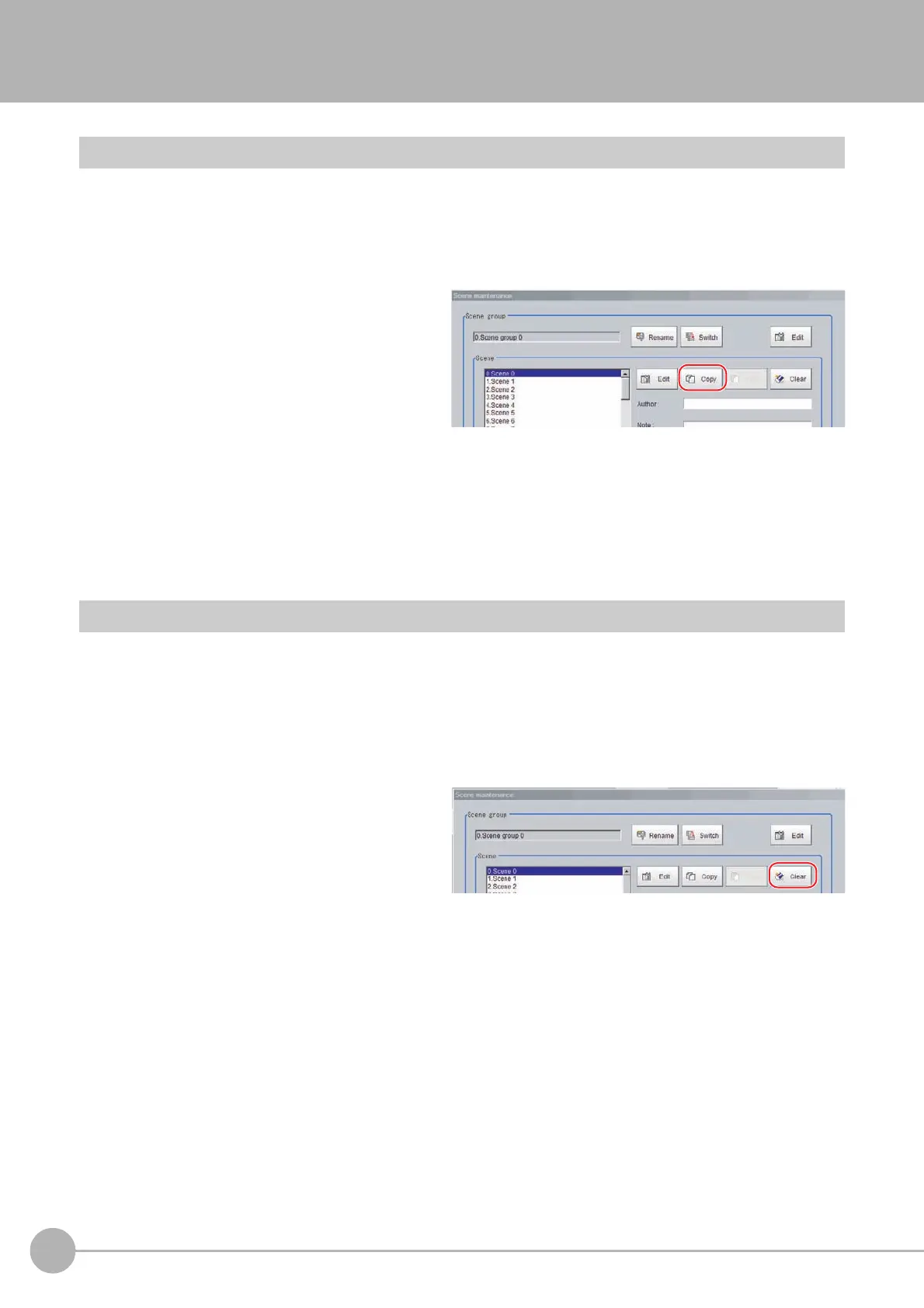

Copying Scenes
Use the following procedure to copy and paste a scene within a scene group.
This is convenient for reusing a scene and changing only the required parts.
1 In the Main Window (layout 0), select [Scene maintenance] from the [Function] menu.
The [Scene maintenance] dialog box is displayed.
2 In the scene list, click the scene to copy,
and then click [Copy].
3 In the scene list, click the scene where the copy is to be made, and then click [Paste].
An overwrite confirmation dialog box is displayed.
4 Click [Yes].
The scene selected as the destination is overwritten with the copied scene data.
5 Click the [Close] button.
Deleting Scenes
Use the following procedure to delete the settings and return to the default values. Use the following procedure
to initialize the measurement contents for a scene.
1 In the Main Window (layout 0), select [Scene maintenance] from the [Function] menu.
The [Scene maintenance] dialog box is displayed.
2 Click the scene to be deleted from the scene list.
3 Click the [Clear] button.
A confirmation message is displayed.
4 Click [Yes].
The scene data is deleted.
5 Click the [Close] button.
